PMIC - Switch di distribuzione potenza, driver di carico
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS22965NTDSGRQ1IC PWR SWITCH N-CHAN 1:1 8WSON Texas Instruments |
2,497 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | 0.8V ~ 5.5V | 4A | 16mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 105°C (TA) | Surface Mount |
|
NCV8405ASTT1GIC PWR DRIVER N-CHAN 1:1 SOT223 onsemi |
2,349 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V (Max) | Not Required | 6A | 90mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
BD2264G-MGTRIC PWR SWITCH N-CHAN 1:1 5SSOP Rohm Semiconductor |
761 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 900mA | 120mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C | Surface Mount |
|
BD1LB500FVM-CGTRIC PWR SWITCH P-CHAN 1:1 8MSOP Rohm Semiconductor |
477 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | General Purpose | 1 | 1:1 | Low Side | P-Channel | - | - | 3.5V ~ 5.5V | 1mA | 300mOhm | CMOS | - | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
BD82006FVJ-MGE2IC PWR SWITCH N-CHAN 1:1 8TSSOP Rohm Semiconductor |
378 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 70mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
BD2068FJ-MGE2IC PWR SWITCH N-CHAN 1:2 SOP-J8 Rohm Semiconductor |
184 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 3A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MIC2015-0.8YM6-TRIC PWR SWITCH P-CHAN 1:1 SOT23-6 Microchip Technology |
2,652 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 800mA | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
AP2166MPG-13IC PWR SWITCH P-CHAN 1:2 8MSOP Diodes Incorporated |
855 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | USB Switch | 2 | 1:2 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

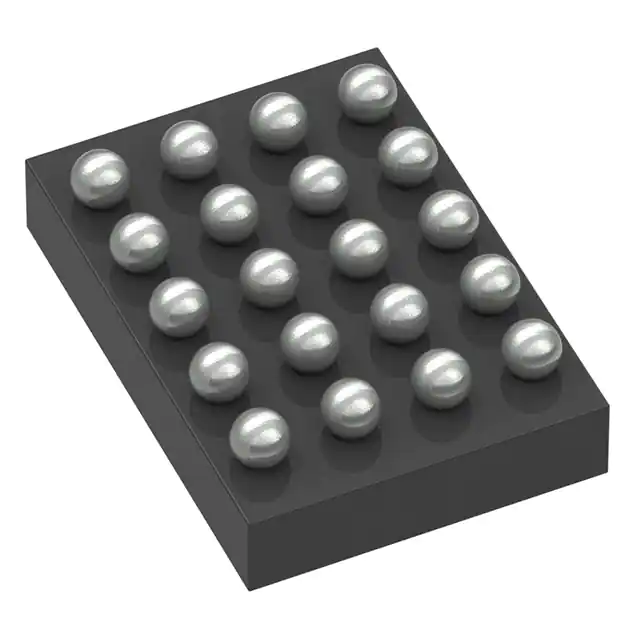

FPF2283CUCXIC PWR DRVR N-CHAN 1:1 20WLCSP onsemi |
600 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | I²C, Logic | 2.8V ~ 23V | Not Required | 7A | 7.5mOhm | Non-Inverting | Auto Restart | Over Temperature, Over Voltage, Short Circuit, UVLO | 150°C (TJ) | Surface Mount |
|
TPS2062CDRBT-2IC PWR SWITCH N-CHAN 1:2 8SON Texas Instruments |
325 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 73mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
TPS2065DBVRIC PWR SWITCH N-CHAN 1:1 SOT23-5 Texas Instruments |
36,295 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
BD6538G-LBTRIC PWR SWITCH N-CHAN 1:1 5SSOP Rohm Semiconductor |
147 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 150mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
MP5073GG-PIC PWR SWITCH P-CHAN 1:1 12QFN Monolithic Power Systems Inc. |
484 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 0.5V ~ 5.5V | 3V ~ 5.5V | 2A | 50mOhm | - | Load Discharge, Power Good, Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
BD2202G-LBTRIC PWR SWITCH N-CHAN 1:1 5SSOP Rohm Semiconductor |
956 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 3.6V | Not Required | 200mA | 150mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -25°C ~ 85°C (TA) | Surface Mount |
|
MIC2008YML-TRIC PWR SWITCH P-CHAN 1:1 6MLF Microchip Technology |
757 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2A | 70mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|

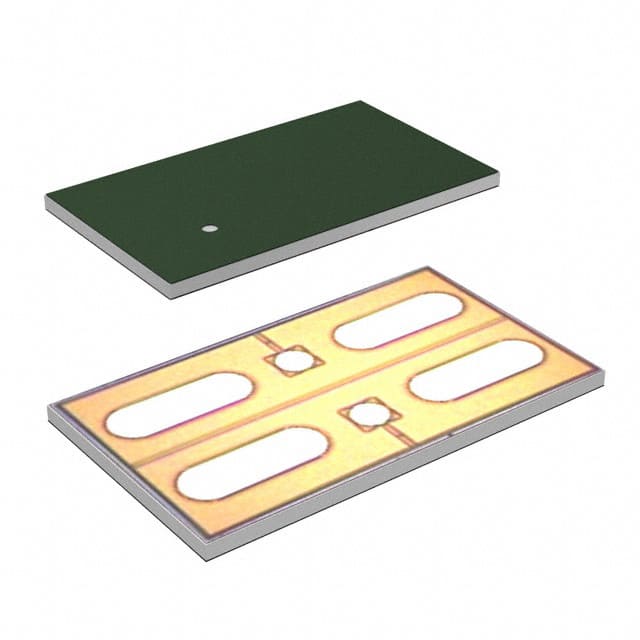

FCAB21350L1IC PWR DRIVER N-CHANNEL 1:1 6SMD Panasonic Electronic Components |
500 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 12V (Max) | Not Required | 12A | 2.1mOhm | - | - | - | - | Surface Mount |
|
MP5013AGJ-PIC PWR SWTCH N-CHAN 1:1 TSOT23-8 Monolithic Power Systems Inc. |
350 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 5A | 36mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
TPS2065DBVTIC PWR SWITCH N-CHAN 1:1 SOT23-5 Texas Instruments |
3,820 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
TBD62781AFWG,ELTRANSISTOR ARRAY INTERFACE DRIVE Toshiba Semiconductor and Storage |
675 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 400mA | 1.6Ohm | Non-Inverting | - | - | -40°C ~ 85°C | Surface Mount |
|
BV1LF080EFJ-CE2AUTOMOTIVE IPD 1CH LOW-SIDE SWIT Rohm Semiconductor |
137 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | - | 3.5V ~ 6.5V | Not Required | 7.5A | 80mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Surface Mount |
