PMIC - Switch di distribuzione potenza, driver di carico
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC10XSD200BFKR2IC PWR SWITCH HIGH SIDE 23PQFN NXP USA Inc. |
2,799 | - |
RFQ |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | - | High Side | - | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
MC16XSD200BFKR2IC PWR SWITCH HIGH SIDE 23PQFN NXP USA Inc. |
2,619 | - |
RFQ |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | - | High Side | - | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 16mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount | |
|
MC17XS6400EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
2,697 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC17XSF400EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
3,629 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC25XS6300EKR2IC PWR SWITCH HIGH SIDE 32HSOP NXP USA Inc. |
2,054 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | - | High Side | - | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.8A | 25mOhm | - | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
MC34982CHFKIC PWR SWITCH N-CHAN 1:1 16QFN NXP USA Inc. |
3,381 | - |
RFQ |
Scheda tecnica |
Tray | - | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 60A | 2mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC34982CHFKR2IC PWR SWITCH N-CHAN 1:1 16QFN NXP USA Inc. |
2,744 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 60A | 2mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC34984CHFKIC PWR SWITCH N-CHAN 1:1 16QFN NXP USA Inc. |
3,578 | - |
RFQ |
Scheda tecnica |
Tray | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 30A | 4mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC34984CHFKR2IC PWR SWITCH N-CHAN 1:1 16QFN NXP USA Inc. |
3,657 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 6V ~ 27V | 4.5V ~ 5.5V | 30A | 4mOhm (Max) | - | Slew Rate Controlled, Status Flag, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC40XS6500EKIC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
3,550 | - |
RFQ |
Scheda tecnica |
Tube | - | Obsolete | General Purpose | 5 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.2A | 40mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC40XS6500EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
2,781 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 5 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.2A | 40mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC40XSF500EKR2IC PWR SWITCH HIGH SIDE 32HSOP NXP USA Inc. |
3,253 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 5 | - | High Side | - | SPI | 7V ~ 18V | - | - | 40mOhm | - | - | Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
MC07XSG517EKIC PWR SWITCH N-CHAN 1:1 54HSOP NXP USA Inc. |
3,925 | - |
RFQ |
Tube | - | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount | |
|

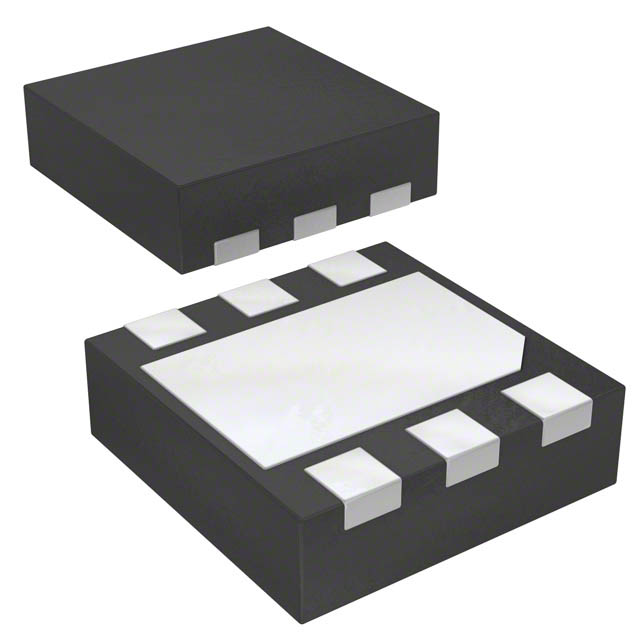

NX5P2553GU6ZIC PWR SWITCH N-CHAN 1:1 6HXSON NXP USA Inc. |
3,864 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 115mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|

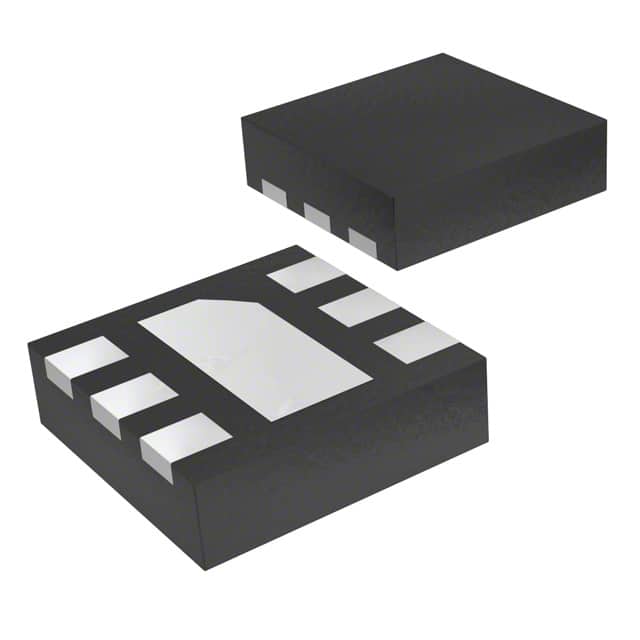

NX5P2553GUZIC PWR SWITCH N-CHAN 1:1 6HXSON NXP USA Inc. |
3,544 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 100mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
MC08XS6421BEKIC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
2,127 | - |
RFQ |
Scheda tecnica |
Tube | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC17XS6400BEKIC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
2,004 | - |
RFQ |
Scheda tecnica |
Bulk,Tube | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC08XS6421BEKR2IC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
3,639 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC17XS6400BEKR2IC PWR SWITCH N-CHAN 1:1 32HSOP NXP USA Inc. |
2,182 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC40XS6500BEKIC PWR SWITCH N-CHAN 1:1 32SOIC NXP USA Inc. |
3,996 | - |
RFQ |
Scheda tecnica |
Tray | - | Obsolete | General Purpose | 5 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.9A | 40mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
