PMIC - Regolatori di tensione - Lineare
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ025EF01SZIC REG LINEAR 2.5V 1A TO220-4 Sharp Microelectronics |
2,212 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Through Hole |
|
|
PQ025EH02ZZIC REG LINEAR 2.5V 2A TO263 Sharp Microelectronics |
3,256 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ025EZ01ZZIC REG LINEAR 2.5V 1A SC63 Sharp Microelectronics |
3,644 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ025Y053ZZIC REG LINEAR 2.5V 5A+AB31771 Sharp Microelectronics |
2,454 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.5V @ 5A | 5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ033EF01SZIC REG LINEAR 3.3V 1A TO220-4 Sharp Microelectronics |
3,336 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Through Hole |
|
|
PQ033EZ01ZZIC REG LINEAR 3.3V 1A SC63 Sharp Microelectronics |
3,321 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 0.5V @ 500mA | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ033EZ1HZZIC REG LINEAR 3.3V 1.5A SC63 Sharp Microelectronics |
2,595 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1.25A | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
|
PQ05DZ11IC REG LINEAR 5V 1A SC63 Sharp Microelectronics |
3,012 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ05DZ51IC REG LINEAR 5V 500MA SC63 Sharp Microelectronics |
3,276 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 300mA | 500mA | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ05RA1IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
3,343 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RA11IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
2,886 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 8 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RD08IC REG LINEAR 5V 800MA TO220-4 Sharp Microelectronics |
2,403 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 500mA | 800mA | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RD11IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
3,356 | - |
RFQ |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole | |
|
PQ05RD1BIC REG LINEAR 5V 1A TO220 Sharp Microelectronics |
3,572 | - |
RFQ |
Scheda tecnica |
TO-220-4 (Formed Leads) | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 500mA | 1A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RD21IC REG LINEAR 5V 2A TO220-4 Sharp Microelectronics |
3,790 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 0.5V @ 2A | 2A | 10 mA | - | 55dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RR1IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
2,234 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RR11IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
3,802 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|
|
PQ05RR13IC REG LINEAR 5V 1A TO220-4 Sharp Microelectronics |
2,305 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | - | 1A | 10 mA | - | 55dB (120Hz) | Reset | Over Current, Over Temperature | -20°C ~ 80°C | Through Hole |
|

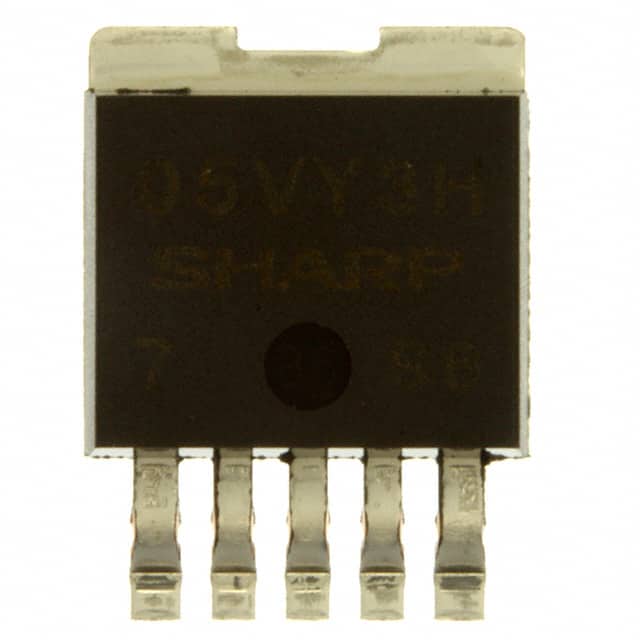

PQ05VY3H3ZZIC REG LINEAR POS ADJ 3.5A TO263 Sharp Microelectronics |
2,121 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Adjustable | 1 | 7V | 1.5V | 5V | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount |
|
|
PQ070XH02ZZIC REG LINEAR POS ADJ 2A TO263 Sharp Microelectronics |
3,689 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 0.5V @ 2A | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
