PMIC - Regolatori di tensione - Lineare
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

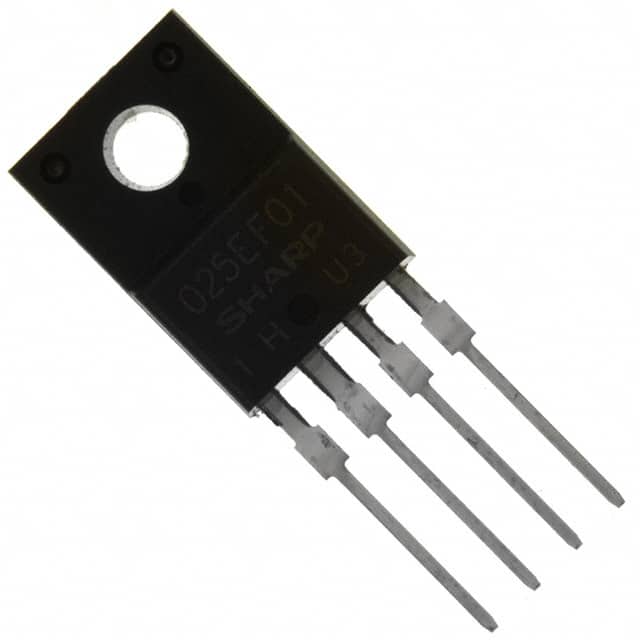

PQ025EF01SZHIC REG LINEAR 2.5V 1A TO220-4 Sharp Microelectronics |
3,643 | - |
RFQ |
Scheda tecnica |
TO-220-4 | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Through Hole |
|
PQ018EH01ZZHIC REG LINEAR 1.8V 1A TO263 Sharp Microelectronics |
3,348 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ018EZ01ZZHIC REG LINEAR 1.8V 1A SC63 Sharp Microelectronics |
3,812 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ018EZ1HZZHIC REG LINEAR 1.8V 1.5A SC63 Sharp Microelectronics |
3,015 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
|
PQ018EZ5MZZHIC REG LINEAR 1.8V 500MA SC63 Sharp Microelectronics |
3,640 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.8V | - | - | 500mA | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ025EH01ZZHIC REG LINEAR 2.5V 1A TO263 Sharp Microelectronics |
3,153 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ015YZ5MZZHIC REG LINEAR POS ADJ 500MA SC63 Sharp Microelectronics |
2,848 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 3.7V | 1V | 1.5V | - | 500mA | - | - | 65dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 85°C | Surface Mount |
|

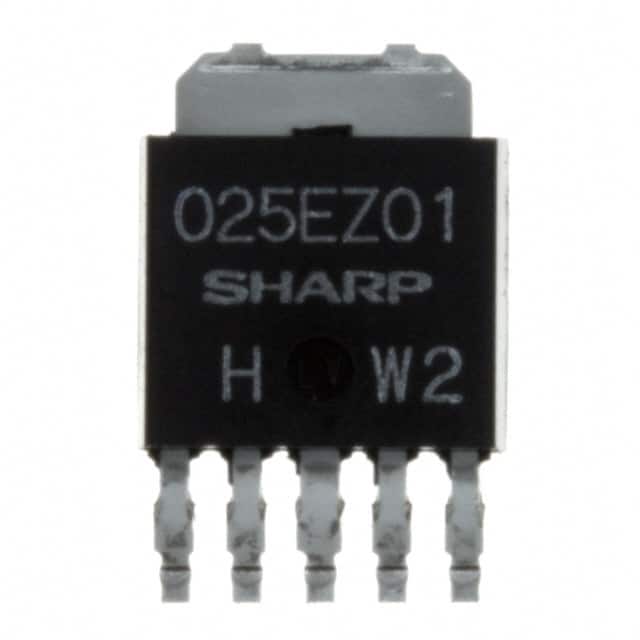

PQ025EZ01ZZHIC REG LINEAR 2.5V 1A SC63 Sharp Microelectronics |
2,781 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ025EZ1HZZHIC REG LINEAR 2.5V 1.5A SC63 Sharp Microelectronics |
3,361 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | |
|
|
PQ025EZ5MZZHIC REG LINEAR 2.5V 500MA SC63 Sharp Microelectronics |
2,462 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 2.5V | - | - | 500mA | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ025Y3H3ZZHIC REG LINEAR 2.5V 3.5A SC63 Sharp Microelectronics |
2,228 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.5V @ 3.5A | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount | |
|
|
PQ015YZ01ZZHIC REG LINEAR POS ADJ 1A SC63 Sharp Microelectronics |
3,752 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Adjustable | 1 | 3.7V | 1V | 1.5V | - | 1A | - | - | 65dB ~ 60dB (120Hz) | - | Over Current, Over Temperature | -25°C ~ 85°C | Surface Mount |
|
|
PQ010FZ5MZZHIC REG LINEAR 1V 500MA SC63 Sharp Microelectronics |
2,077 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 3.7V | 1V | - | - | 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
|
PQ015EH01ZZHIC REG LINEAR 1.5V 1A TO263 Sharp Microelectronics |
3,128 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ015EH02ZZHIC REG LINEAR 1.5V 2A TO263 Sharp Microelectronics |
3,411 | - |
RFQ |
Scheda tecnica |
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 2A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
|
PQ015EZ01ZZHIC REG LINEAR 1.5V 1A SC63 Sharp Microelectronics |
3,672 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 1A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
PQ012FZ01ZZHIC REG LINEAR 1.2V 1A SC63 Sharp Microelectronics |
2,126 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 3.7V | 1.2V | - | - | 1A | - | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
|
PQ010FZ01ZZHIC REG LINEAR 1V 1A SC63 Sharp Microelectronics |
3,612 | - |
RFQ |
Scheda tecnica |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 3.7V | 1V | - | - | 1A | - | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
|
PQ015Y3H3ZZHIC REG LINEAR 1.5V 3.5A SC63 Sharp Microelectronics |
3,682 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | - | 3.5A | 10 mA | - | 70dB (120Hz) | Enable | Over Current, Over Temperature | -20°C ~ 80°C | Surface Mount | |
|

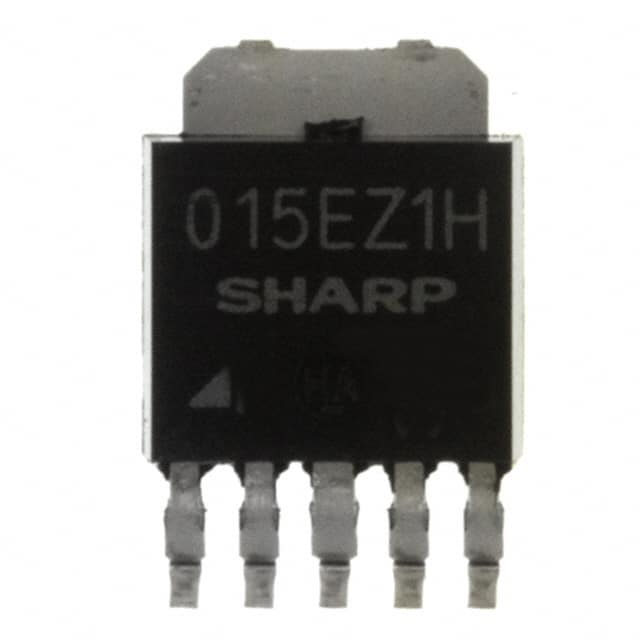

PQ015EZ1HZZHIC REG LINEAR 1.5V 1.5A SC63 Sharp Microelectronics |
3,576 | - |
RFQ |
TO-252-6, DPak (5 Leads + Tab) | Tube | - | Obsolete | Positive | Fixed | 1 | 10V | 1.5V | - | - | 1.5A | 2 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
