Relè di potenza, oltre 2 Ampere
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC-2HC-2=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
3,095 | - |
RFQ |
Scheda tecnica |
Bulk | HC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 25 A | - | 79.1 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | - |
|
|
K41R332K41R332=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
3,146 | - |
RFQ |
Scheda tecnica |
Bulk | K41R | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Max | 331.3 mA | Latching, Single Coil | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | - | 6 ms | - | -55°C ~ 125°C | - |
|
|
K41B532K41B532=RELAY, VACUUM, SPST-NC TE Connectivity Aerospace, Defense and Marine |
2,442 | - |
RFQ |
Bulk | K41B | Active | Chassis Mount | 115VDC | SPST-NC (1 Form B) | 30 A | 5000VDC - Max | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
|
FM200BBXRELAY SPST 200A 24V TE Connectivity Aerospace, Defense and Marine |
2,775 | - |
RFQ |
Bulk | FM-200, KILOVAC | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 200 A | - | - | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | - | - | - | 50 ms | 80 ms | -20°C ~ 60°C | - | |
|
|
4-1618013-5PD5C235=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
2,548 | - |
RFQ |
Bulk | PD | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | 26.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
4-1618013-9PD5C345=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
2,416 | - |
RFQ |
Bulk | PD | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | 26.6 mA | Non Latching | - | - | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
5-1618013-2RELAY SPDT 5A 125V TE Connectivity Aerospace, Defense and Marine |
2,437 | - |
RFQ |
Bulk | PD5, KILOVAC | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 5 A | - | - | Non Latching | - | PC Pin | - | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
5-1618013-3PD5C545=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
2,934 | - |
RFQ |
Bulk | PD | Active | Panel Mount | 125VDC | SPDT (1 Form C) | 15 A | - | 26.6 mA | Non Latching | - | - | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
K41C532RELAY SPDT 115V TE Connectivity Aerospace, Defense and Marine |
3,359 | - |
RFQ |
Scheda tecnica |
Bulk | K41 | Active | Panel Mount | 115VDC | SPDT (1 Form C) | - | - | - | - | - | Wire Leads | - | - | 80 VDC | 50 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - |
|
|
K43R334K43R334=RELAY, VACUUM, SPDT-LA TE Connectivity Aerospace, Defense and Marine |
3,994 | - |
RFQ |
Scheda tecnica |
Bulk | K43R | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 24 A | 10000VDC - Max | 331.3 mA | Latching, Single Coil | - | Wire Leads | Sealed - Vacuum | - | 16 VDC | - | 6 ms | - | -55°C ~ 125°C | - |
|
|
K41B932RELAY SPST 30A 115V TE Connectivity Aerospace, Defense and Marine |
3,892 | - |
RFQ |
Scheda tecnica |
Bulk | K-41, KILOVAC | Active | Panel Mount | 115VDC | SPST-NC (1 Form B) | 30 A | - | - | Non Latching | - | Solder Turret | - | - | 80 VDC | 50 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - |
|
|
K41A932K41A932=RELAY, VACCUM, SPST-NO TE Connectivity Aerospace, Defense and Marine |
3,480 | - |
RFQ |
Bulk | K41A | Active | Chassis Mount | 115VDC | SPST-NO (1 Form A) | 30 A | 5000VDC - Max | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
|
FCAC-150-KR3FCAC-150-KR3=50 AMP W/AUX RELAY TE Connectivity Aerospace, Defense and Marine |
3,722 | - |
RFQ |
Bulk | FCAC-15 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | 96.6 mA | Non Latching | Diode | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | - | - | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
FCAC-150-KX4FCAC-150-KX4=50 AMP MID-RANGE TE Connectivity Aerospace, Defense and Marine |
2,172 | - |
RFQ |
Bulk | FCAC-15 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | 96.6 mA | Non Latching | Diode | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | - | - | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
8-1617795-8FCA-150NC-2 TE Connectivity Aerospace, Defense and Marine |
3,693 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

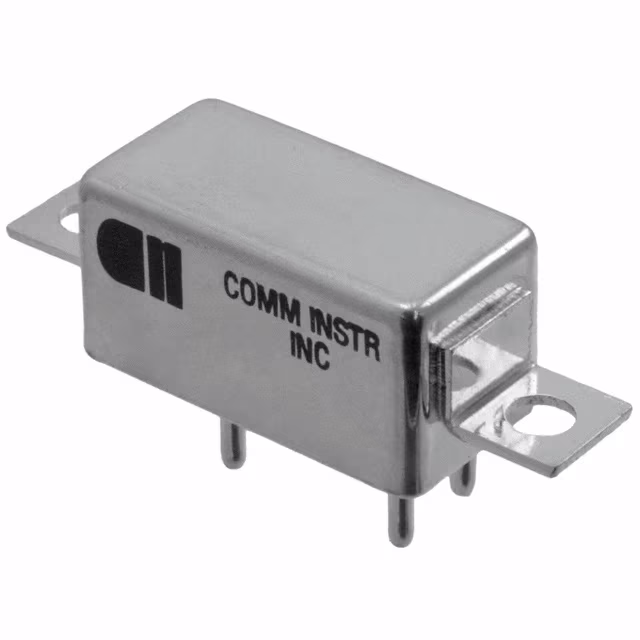

CBW-1C-24BRELAY GEN PURPOSE SPDT 10A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,948 | - |
RFQ |
Scheda tecnica |
Bulk | C, CII | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.8 VDC | - | - | -65°C ~ 125°C | - |
|

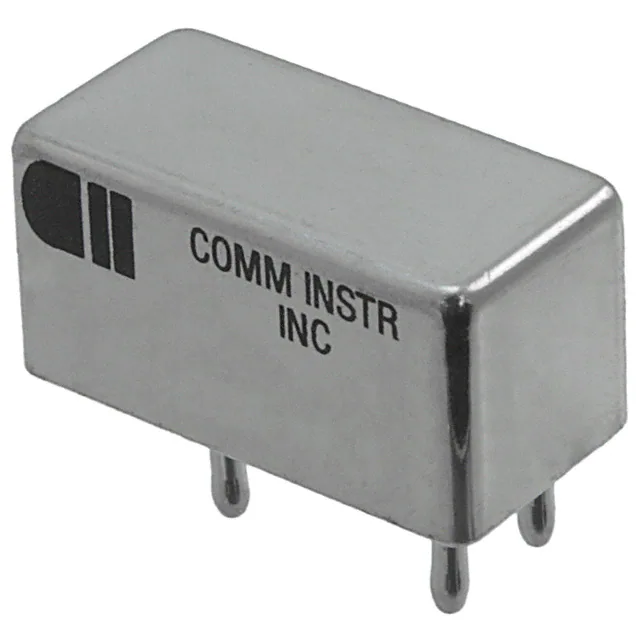

CAW-1C-6BRELAY GEN PURPOSE SPDT 10A 6V TE Connectivity Aerospace, Defense and Marine |
2,662 | - |
RFQ |
Scheda tecnica |
Bulk | C, CII | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 32.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.45 VDC | - | - | -65°C ~ 125°C | - |
|
|
CEW-1C-24ACEW-1C-24A = HALF 10A.1POLE.SI TE Connectivity Aerospace, Defense and Marine |
3,465 | - |
RFQ |
Bulk | CEW | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | |
|
|
1-1618274-3HC-1/S23=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
3,341 | - |
RFQ |
Bulk | HC | Active | Panel Mount | - | SPDT (1 Form C) | 25 A | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | |
|
|
K41C932K41C932=RELAY, VACUUM, SPDT TE Connectivity Aerospace, Defense and Marine |
2,309 | - |
RFQ |
Bulk | K41C | Active | Chassis Mount | 115VDC | SPDT (1 Form C) | 30 A | 5000VDC - Max | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - |
