Relè di potenza, oltre 2 Ampere
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RZ03-1A4-D012RELAY GEN PURPOSE SPST 16A 12V TE Connectivity Potter & Brumfield Relays |
2,831 | - |
RFQ |
Scheda tecnica |
Tube | RZ, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

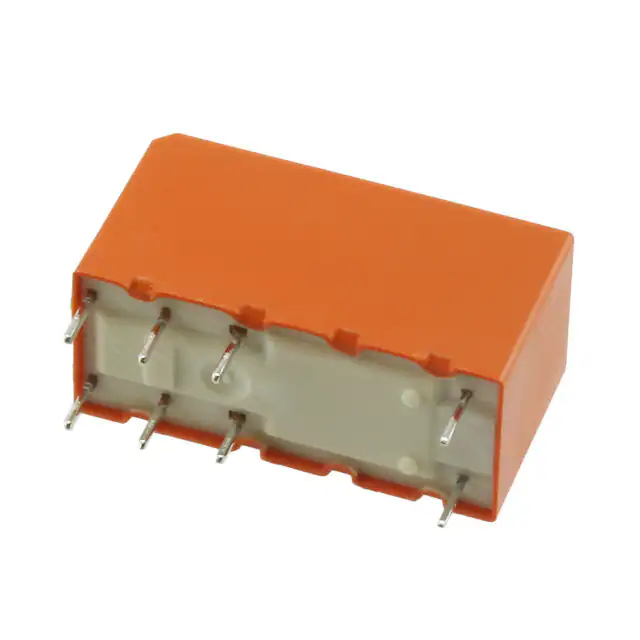

RZ03-1A3-D005RELAY GEN PURPOSE SPST 16A 5V TE Connectivity Potter & Brumfield Relays |
2,136 | - |
RFQ |
Scheda tecnica |
Tube | RZ, SCHRACK | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 84 mA | Non Latching | - | PC Pin | - | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
5-1415899-0RELAY GEN PURPOSE SPST 16A 24V TE Connectivity Potter & Brumfield Relays |
2,187 | - |
RFQ |
Scheda tecnica |
Bulk,Tube | RZ, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
G5LE-1-E DC12RELAY GEN PURPOSE SPDT 16A 12V Omron Electronics Inc-EMC Div |
2,528 | - |
RFQ |
Scheda tecnica |
Tray | G5LE-E | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) |
|

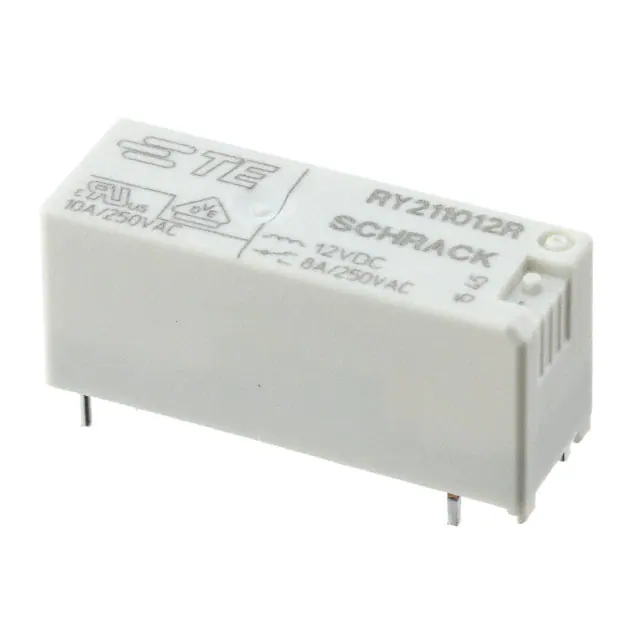

RY211012RRELAY GEN PURPOSE SPDT 8A 12V TE Connectivity Potter & Brumfield Relays |
2,076 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | RY, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 19.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|

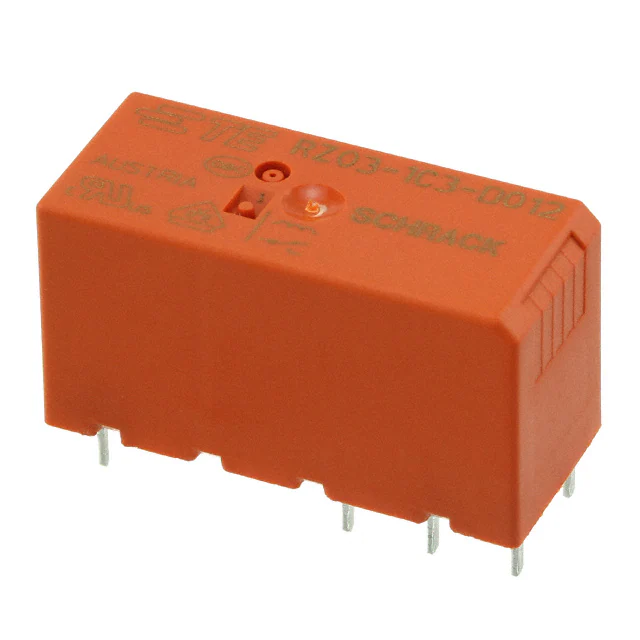

7-1415899-7RELAY GEN PURPOSE SPDT 16A 12V TE Connectivity Potter & Brumfield Relays |
2,799 | - |
RFQ |
Scheda tecnica |
Tube | RZ, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
G2R-14-DC24RELAY GEN PURPOSE SPDT 8A 24V Omron Electronics Inc-EMC Div |
3,766 | - |
RFQ |
Scheda tecnica |
Tray,Box | G2R | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy |
|
T9AP1D52-12RELAY GEN PURPOSE SPST 30A 12V TE Connectivity Potter & Brumfield Relays |
2,433 | - |
RFQ |
Scheda tecnica |
Bulk | T9A | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 83 mA | Non Latching | - | Quick Connect - 0.187/0.250 | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
DSP2A-DC24VRELAY GEN PURPOSE DPST 5A 24V Panasonic Electric Works |
2,869 | - |
RFQ |
Scheda tecnica |
Bulk | DSP | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
DSP1A-L2-DC5VRELAY GEN PURPOSE SPST 8A 5V Panasonic Electric Works |
3,045 | - |
RFQ |
Scheda tecnica |
Bulk | DSP | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 60 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
G6DN-1A DC12RELAY GEN PURPOSE SPST 5A 12V Omron Electronics Inc-EMC Div |
2,616 | - |
RFQ |
Tube | G6DN | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | |
|
|
G6DN-1A DC24RELAY GEN PURPOSE SPST 5A 24V Omron Electronics Inc-EMC Div |
3,947 | - |
RFQ |
Tube | G6DN | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 4.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | |
|
JW1AFSN-DC5V-FRELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works |
3,208 | - |
RFQ |
Scheda tecnica |
Tube | JW | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
ALZ12B12RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works |
3,886 | - |
RFQ |
Scheda tecnica |
Tube | ALZ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
G2RL-1A DC12RELAY GEN PURPOSE SPST 12A 12V Omron Electronics Inc-EMC Div |
3,589 | - |
RFQ |
Tube | G2RL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|

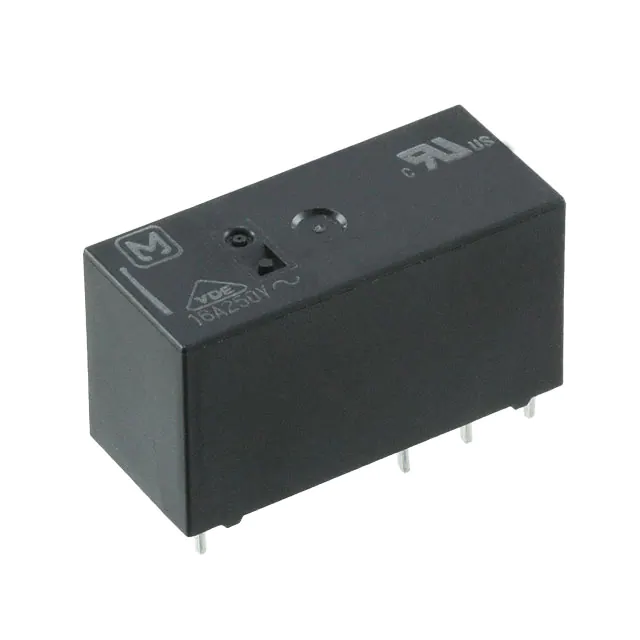

ALZ11F12RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works |
2,288 | - |
RFQ |
Scheda tecnica |
Tube | ALZ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
G6DN-1A-L DC24RELAY GEN PURPOSE SPST 5A 24V Omron Electronics Inc-EMC Div |
2,672 | - |
RFQ |
Tube | G6DN | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 16.8 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Alloy | |
|
|
ALZ12F24RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works |
2,496 | - |
RFQ |
Scheda tecnica |
Tube | ALZ | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
JW1FSN-B-DC5VRELAY GEN PURPOSE SPDT 10A 5V Panasonic Electric Works |
2,466 | - |
RFQ |
Scheda tecnica |
Bulk | JW | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 106 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALZ12F05WRELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works |
2,841 | - |
RFQ |
Scheda tecnica |
Bulk | ALZ | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
