Relè di potenza, oltre 2 Ampere
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RZ03-1C4-D024RELAY GEN PURPOSE SPDT 16A 24V TE Connectivity Potter & Brumfield Relays |
2,359 | - |
RFQ |
Scheda tecnica |
Tube | RZ, SCHRACK | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
4-1415899-9RELAY GEN PURPOSE SPST 16A 12V TE Connectivity Potter & Brumfield Relays |
2,157 | - |
RFQ |
Scheda tecnica |
Bulk | RZ, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J114AF2CS12VDC.53RELAY GEN PURPOSE DPDT 8A 12V CIT Relay and Switch |
3,710 | - |
RFQ |
Scheda tecnica |
Tube | J114AF | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 380VAC, 110VDC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
KC-16RELAY GEN PURPOSE SPDT 12A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,078 | - |
RFQ |
Bulk | KC-16, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 12 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - | |
|
3-1618276-5RELAY GEN PURPOSE SPDT 10A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,261 | - |
RFQ |
Bulk | K61, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 35000VDC - Max | - | Non Latching | - | Solder Turret, Wire Leads | - | - | 18 VDC | 1 VDC | 15 ms | 15 ms | -55°C ~ 85°C | - | |
|

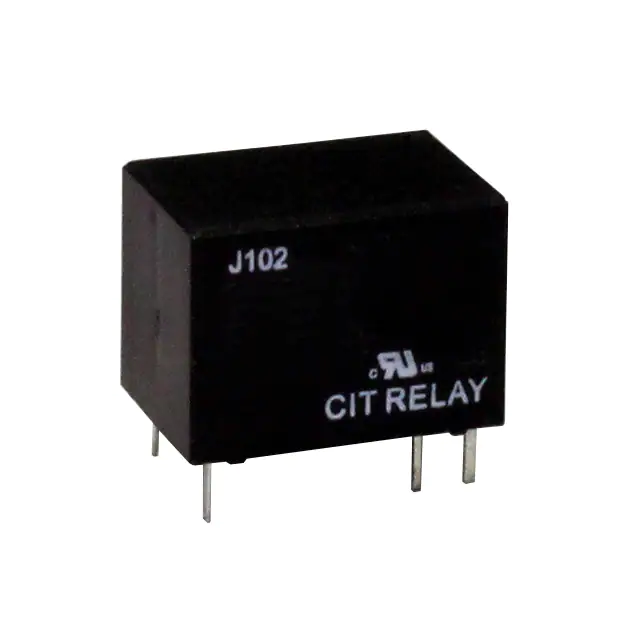

J1021AS35VDC.20RELAY GEN PURPOSE SPST 3A 5V CIT Relay and Switch |
2,069 | - |
RFQ |
Scheda tecnica |
Tube | J102 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
J102K1CS35VDC.20RELAY GEN PURPOSE SPDT 3A 5V CIT Relay and Switch |
2,562 | - |
RFQ |
Scheda tecnica |
Tube | J102 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALQ3F24RELAY GEN PURPOSE SPST 10A 24V Panasonic Electric Works |
2,605 | - |
RFQ |
Scheda tecnica |
Box | ALQ | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALQ3F12RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works |
3,339 | - |
RFQ |
Scheda tecnica |
Box | ALQ | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

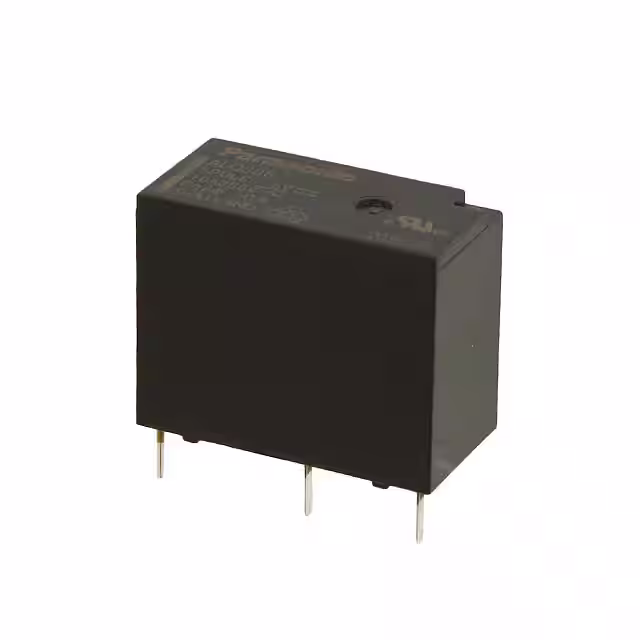

ALQ306RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works |
2,881 | - |
RFQ |
Scheda tecnica |
Box | ALQ | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J109F1CS1212VDC.45RELAY GEN PURPOSE SPDT 12A 12V CIT Relay and Switch |
2,388 | - |
RFQ |
Scheda tecnica |
Tube | J109F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 7 ms | 4 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
|
ALQ1F05RELAY GEN PURPOSE SPDT 10A 5V Panasonic Electric Works |
3,297 | - |
RFQ |
Scheda tecnica |
Box | ALQ | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 80 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALQ1F24RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works |
3,322 | - |
RFQ |
Scheda tecnica |
Box | ALQ | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J123F1C12VDC.36RELAY GEN PURPOSE SPDT 20A 12V CIT Relay and Switch |
2,716 | - |
RFQ |
Scheda tecnica |
Tube | J123F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 380VAC, 110VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
G5LE-1-ASI DC5RELAY GEN PURPOSE SPDT 10A 5V Omron Electronics Inc-EMC Div |
3,614 | - |
RFQ |
Scheda tecnica |
Tray | G5LE | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | 79.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
G5Q1A4EUDC12RELAY GEN PURPOSE SPST 10A 12V Omron Electronics Inc-EMC Div |
3,925 | - |
RFQ |
Tube | G5Q-EU | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | |
|
|
G5Q-14 DC18RELAY GEN PURPOSE SPDT 10A 18V Omron Electronics Inc-EMC Div |
2,782 | - |
RFQ |
Tray | G5Q | Active | Through Hole | 18VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | |
|
|
G5LE-1 DC5RELAY GEN PURPOSE SPDT 10A 5V Omron Electronics Inc-EMC Div |
2,134 | - |
RFQ |
Scheda tecnica |
Tray | G5LE | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | 79.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.75 VDC | 0.5 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|

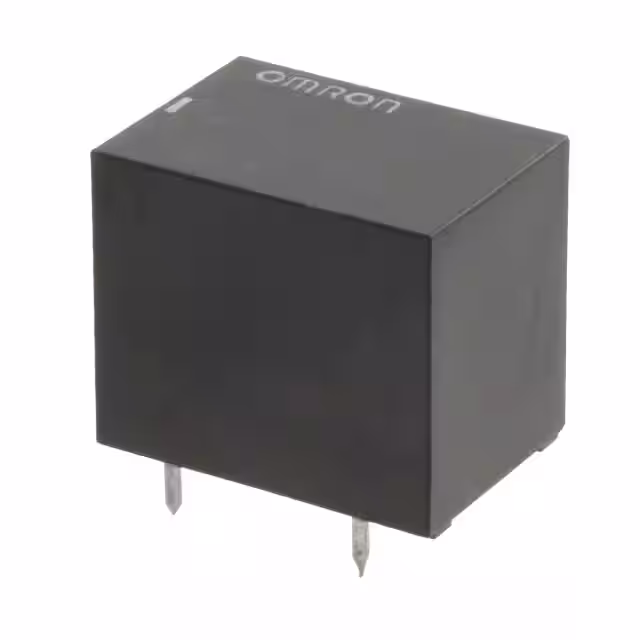

G5LE-14-CF DC12RELAY GEN PURPOSE SPDT 10A 12V Omron Electronics Inc-EMC Div |
2,325 | - |
RFQ |
Scheda tecnica |
Tray | G5LE | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
G5NB-1A DC5RELAY GENERAL PURPOSE SPST 3A 5V Omron Electronics Inc-EMC Div |
3,221 | - |
RFQ |
Scheda tecnica |
Bulk | G5NB | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 70°C | - |
