Trasformatori di potenza
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS28-700-C2PWR XFMR LAMINATED 20VA TH Triad Magnetics |
3,424 | - |
RFQ |
Scheda tecnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|
|
FS36-550-C2PWR XFMR LAMINATED 20VA TH Triad Magnetics |
2,629 | - |
RFQ |
Scheda tecnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|
|
FS56-350-C2PWR XFMR LAMINATED 20VA TH Triad Magnetics |
2,874 | - |
RFQ |
Scheda tecnica |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 700mA, Series 350mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|

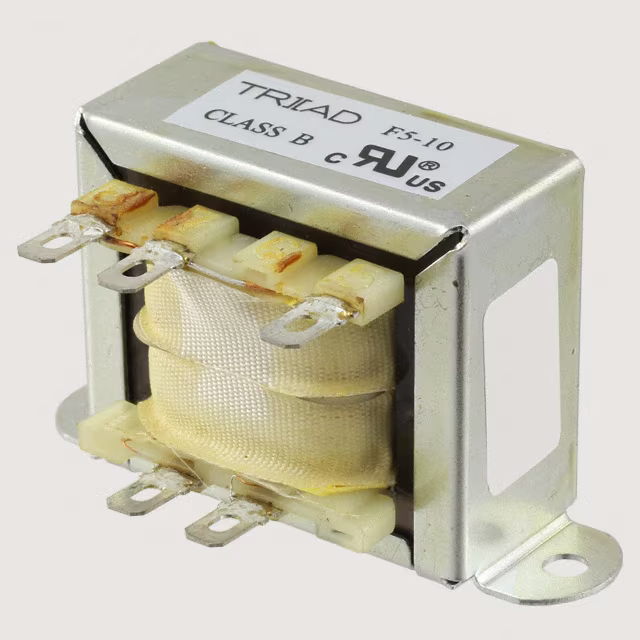

F5-10PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
2,483 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 10V | 1.2A | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
F5-12PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
3,234 | - |
RFQ |
Scheda tecnica |
Bulk,Bulk | Quick Pack | Active | Laminated Core | 115V | 12.6V | 1A | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
F5-120PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
3,792 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 120V | 100mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

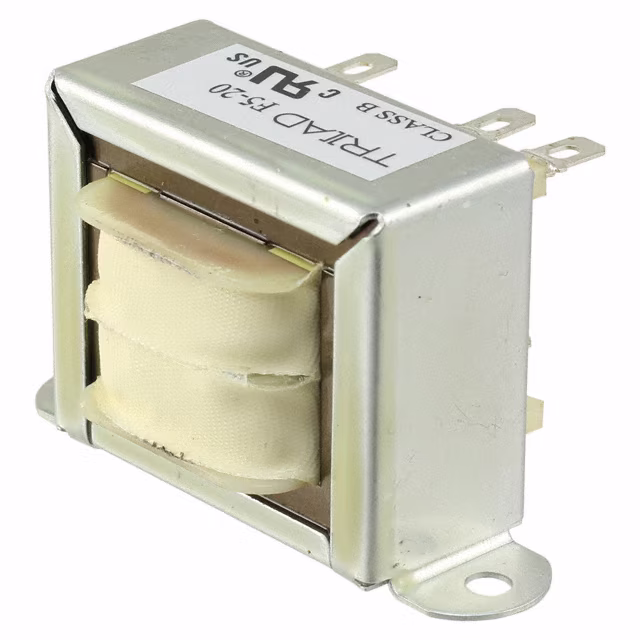

F5-20PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
3,511 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 20V | 600mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

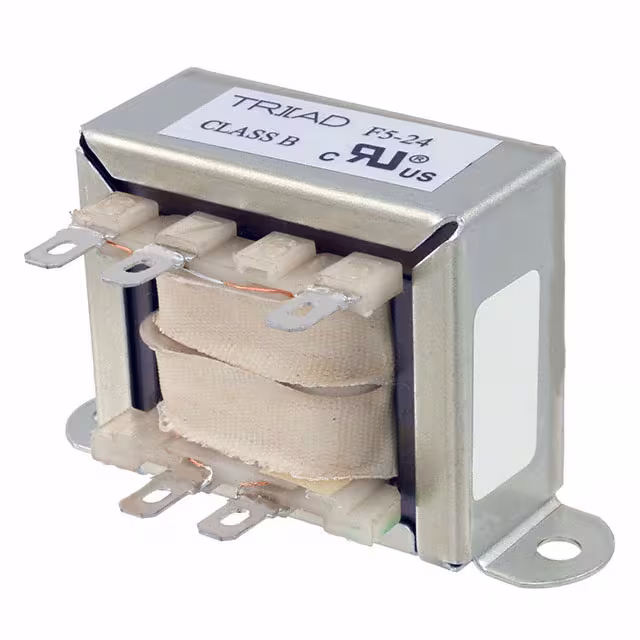

F5-24PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
2,179 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 24V | 500mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
|
F5-28PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
2,361 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 28V | 420mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
F5-36PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
3,270 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 36V | 350mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
|
F5-48PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
3,265 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 48V | 250mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
|
F5-56PWR XFMR LAMINATED 12VA CHAS MT Triad Magnetics |
2,514 | - |
RFQ |
Scheda tecnica |
Bulk | Quick Pack | Active | Laminated Core | 115V | 56V | 220mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
F-166XPPWR XFMR LAMINATED 7.5VA TH Triad Magnetics |
2,898 | - |
RFQ |
Scheda tecnica |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 9V, Series 24V | Parallel 500mA, Series 125mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-169XPPWR XFMR LAMINATED 7.5VA TH Triad Magnetics |
2,493 | - |
RFQ |
Scheda tecnica |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 287mA, Series 100mA | Single | Dual | Yes | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
FP12-950-BPWR XFMR LAMINATED 12VA TH Triad Magnetics |
3,774 | - |
RFQ |
Scheda tecnica |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.9A, Series 950mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
FP20-600-BPWR XFMR LAMINATED 12VA TH Triad Magnetics |
3,387 | - |
RFQ |
Scheda tecnica |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.67mm | 2000Vrms |
|
|
FP24-500-BPWR XFMR LAMINATED 12VA TH Triad Magnetics |
3,616 | - |
RFQ |
Scheda tecnica |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP30-400-BPWR XFMR LAMINATED 12VA TH Triad Magnetics |
3,919 | - |
RFQ |
Scheda tecnica |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 800mA, Series 400mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
F-349XPPWR XFMR LAMINATED 4.5VA TH Triad Magnetics |
2,748 | - |
RFQ |
Scheda tecnica |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 560mA, Series 280mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms |
|
|
F-363XPPWR XFMR LAMINATED 4.5VA TH Triad Magnetics |
3,983 | - |
RFQ |
Scheda tecnica |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 40mA, Series 20mA | Dual | Dual | No | 4.5VA | Through Hole | PC Pin | 60.33mm L x 31.75mm W | 36.50mm | 1500Vrms |
