Trasformatori di potenza

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
F-184X PWR XFMR LAMINATED 28VA CHAS MT Triad Magnetics	3,551	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	28V	1A	Single	Single	Yes	28VA	Chassis Mount	Wire Leads	93.65mm L x 57.15mm W	58.72mm	1500Vrms
F-224X PWR XFMR LAMINATED 37.8VA CHAS Triad Magnetics	3,817	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	12.6V	3A	Single	Single	No	37.8VA	Chassis Mount	Wire Leads	95.25mm L x 53.98mm W	57.15mm	1500Vrms
F-31X PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,432	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	95.25mm L x 53.98mm W	54.76mm	2000Vrms
FD7-10 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,710	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	5A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

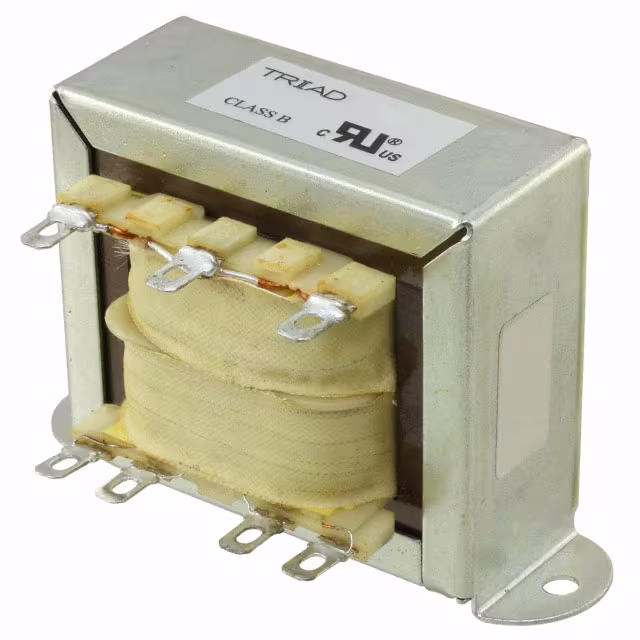

FD7-12 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,253	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	4A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
FD7-28 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	3,134	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	2A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
FD7-48 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,913	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	48V	1.2A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
FD7-56 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	3,164	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	1A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
VPP20-2800-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	2,297	-	RFQ	Scheda tecnica	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP24-2330-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,761	-	RFQ	Scheda tecnica	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 4.66A, Series 2.33A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP36-1560-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,916	-	RFQ	Scheda tecnica	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 3.12A, Series 1.56A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP10-5600-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	2,295	-	RFQ	Scheda tecnica	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 11.2A, Series 5.6A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP12-4400-B PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,728	-	RFQ	Scheda tecnica	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 8.8A, Series 4.4A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPL26-930 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	2,427	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	26.8V	930mA	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms

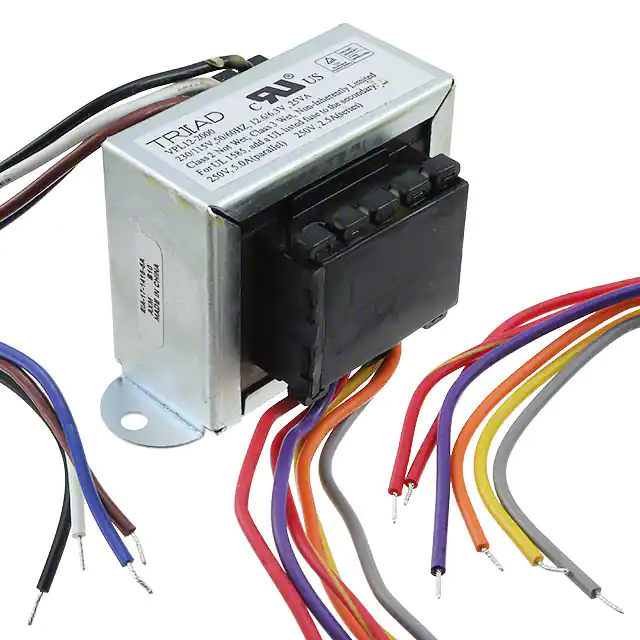

VPL12-2000 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	3,753	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	12.6V	1.98A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
VPL25-1000 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	3,582	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	25.2V	0.99A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
VPL28-900 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	2,653	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	28V	0.89A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
VPL20-1200 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	3,922	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	20V	1.25A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
TCT40-01E07AB-B PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	3,860	-	RFQ	Scheda tecnica	Bulk	Class 2, TCT	Active	Laminated Core	120V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms
TCT40-05E07AB-B PWR XFMR LAMINATED 40VA CHAS MT Triad Magnetics	2,323	-	RFQ	Scheda tecnica	Bulk	Class 2, TCT	Active	Laminated Core	120V, 208V, 240V	24V	1.67A	Single, Multiple Taps	Single	No	40VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms
