Trasformatori di potenza

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

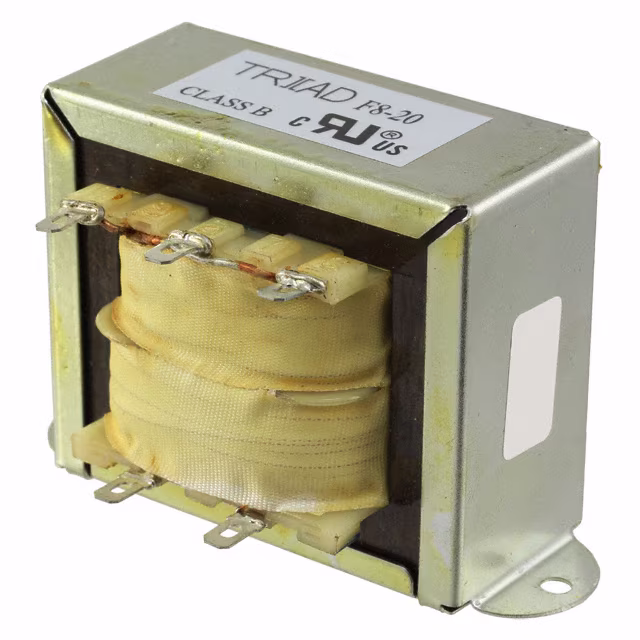

F8-20 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,766	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V	20V	5A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
F8-48 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,572	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V	48V	2A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
VPS10-8000 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,764	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS12-6300-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,553	-	RFQ	Scheda tecnica	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS16-5000-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,471	-	RFQ	Scheda tecnica	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 10A, Series 5A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS20-4000-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,698	-	RFQ	Scheda tecnica	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 8A, Series 4A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 74.68mm W	76.20mm	4000Vrms
VPS230-350-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,075	-	RFQ	Scheda tecnica	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS36-2200-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,280	-	RFQ	Scheda tecnica	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
FD8-20 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,176	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	20V	5A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
FD8-28 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,039	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	28V	3.6A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

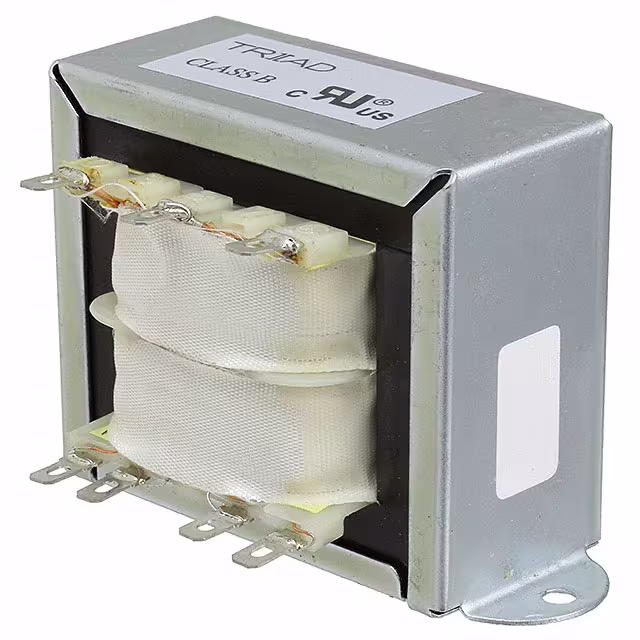

FD8-36 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,669	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	36V	2.8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

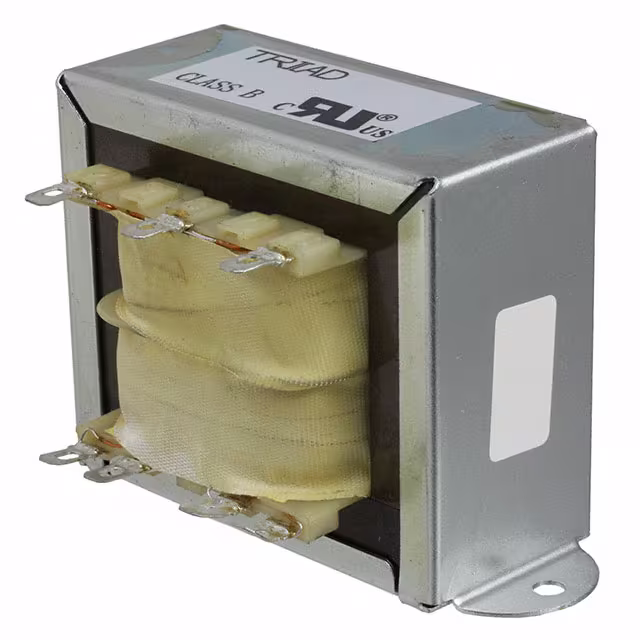

FD8-56 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,227	-	RFQ	Scheda tecnica	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	1.8A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
F-91X PWR XFMR LAMINATED CHASSIS MT Triad Magnetics	3,129	-	RFQ	Scheda tecnica	Box	Universal	Active	Laminated Core	115V	40V, 20V, 10V	300mA	Single, Multiple Taps	Single	Yes	Varies	Chassis Mount	Wire Leads	93.65mm L x 50.80mm W	57.94mm	1500Vrms
F-252U PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,146	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	14V	4A	Single	Single	Yes	56VA	Chassis Mount	Wire Leads	63.50mm L x 61.90mm W	76.20mm	1500Vrms
F-279U PWR XFMR LAMINATED 60VA CHAS MT Triad Magnetics	3,060	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	60V	1A	Single	Single	Yes	60VA	Chassis Mount	Wire Leads	66.68mm L x 63.50mm W	76.20mm	1500Vrms
VPS12-10300 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,124	-	RFQ	Scheda tecnica	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 26A, Series 13A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms
F-182U PWR XFMR LAMINATED 75.6VA CHAS Triad Magnetics	3,036	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	12.6V	6A	Single	Single	Yes	75.6VA	Chassis Mount	Wire Leads	71.42mm L x 71.42mm W	85.73mm	1500Vrms
F-220U PWR XFMR LAMINATED 72VA CHAS MT Triad Magnetics	3,810	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	12V	6A	Single	Single	No	72VA	Chassis Mount	Wire Leads	71.42mm L x 63.50mm W	87.30mm	1500Vrms
F-253U PWR XFMR LAMINATED 84VA CHAS MT Triad Magnetics	3,940	-	RFQ	Scheda tecnica	Box	Single Secondary	Active	Laminated Core	115V	14V	6A	Single	Single	Yes	84VA	Chassis Mount	Wire Leads	73.03mm L x 71.42mm W	85.73mm	1500Vrms
F-256U PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,298	-	RFQ	Scheda tecnica	Bulk,Box	Single Secondary	Active	Laminated Core	115V	20V	4A	Single	Single	Yes	80VA	Chassis Mount	Wire Leads	73.03mm L x 71.42mm W	85.73mm	1500Vrms
