Pressione Sensori, trasduttori
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M325M-00000E-010BGPRESS XDCR M325M-00000E-010BG TE Connectivity Measurement Specialties |
3,482 | - |
RFQ |
Scheda tecnica |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 145.04PSI (1000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 290PSI (2000kPa) | -40°C ~ 125°C |
|
85-100A-0RSENSOR 100PSIA 1/4NPT RIB W/CONN TE Connectivity Measurement Specialties |
2,944 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|
85-030A-0RSENSOR 30PSIA 1/4NPT RIBN W/CONN TE Connectivity Measurement Specialties |
2,329 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C |
|
85-500A-0RSENSOR 500PSIA 1/4NPT RIB W/CONN TE Connectivity Measurement Specialties |
2,587 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
82-005G-RTSENSOR 5PSIG RIBBON CABLE W/CONN TE Connectivity Measurement Specialties |
2,690 | - |
RFQ |
Scheda tecnica |
- | Tube | - | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C |
|
FMA-500-T1-40W-GVPRESSURE SENSOR 40H2O Amphenol NovaSensor |
2,428 | - |
RFQ |
Scheda tecnica |
Module | Bulk | FMA | Active | Board Mount | Vacuum | 1.45PSI (10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Female - 1/8 (3.18mm) NPT | Barbless | Amplified Output, Temperature Compensated | Connector | 2.89PSI (20kPa) | -40°C ~ 125°C |
|
85-300G-4RSNSR PRES 300PSIG 1/4 - 18NPT TE Connectivity Measurement Specialties |
3,766 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|
85-030G-4RSNSR PRES TE Connectivity Measurement Specialties |
2,979 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C |
|
154BC-S-015PG-CSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,975 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
85-100A-FCSENSOR 100PSIA 1/4NPT RIB TE Connectivity Measurement Specialties |
3,743 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|

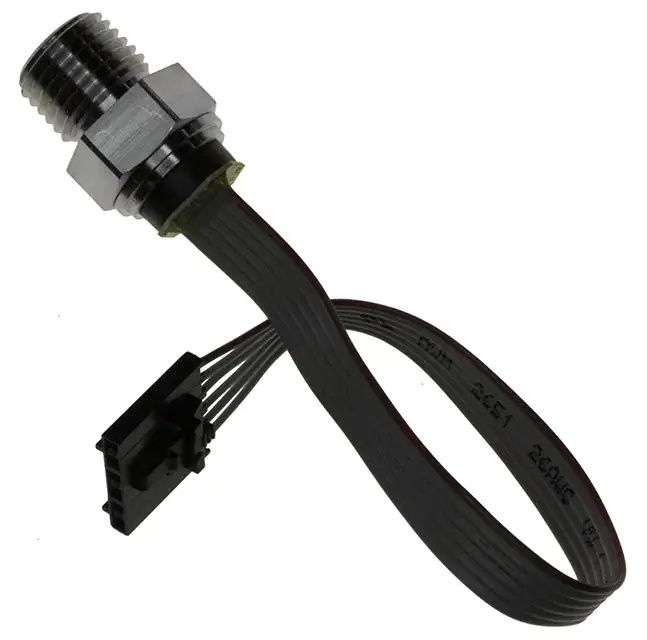

85-015G-FCSNSR PRES 15PSIG 1/4 - 18NPT TE Connectivity Measurement Specialties |
3,510 | - |
RFQ |
Scheda tecnica |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
|
154BC-T-015PG-CSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,583 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
|
154BC-T-028BA-CSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,705 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Absolute | 406.11PSI (2800kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 812.21PSI (5600kPa) | -40°C ~ 125°C |
|
|
154BC-T-030PG-CSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,774 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 60PSI (413.69kPa) | -40°C ~ 125°C |
|

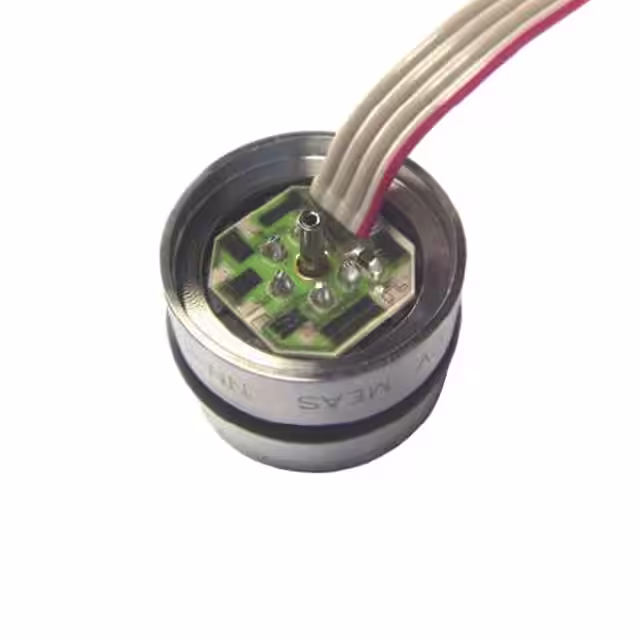

154CV-005G-RSENSOR PRESSURE TE Connectivity Measurement Specialties |
2,073 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | 10V ~ 14V | - | No Port | Temperature Compensated | Wire Leads | 15PSI (103.42kPa) | -20°C ~ 70°C |
|

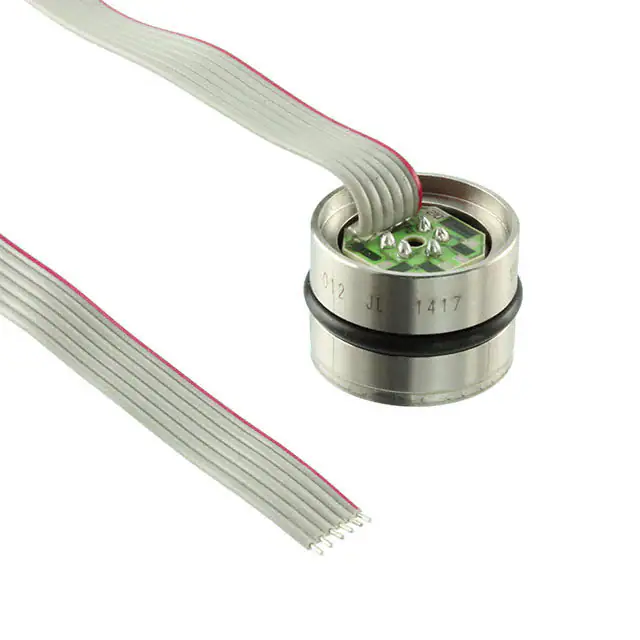

154N-100A-RSENSOR PRESSURE TE Connectivity Measurement Specialties |
2,728 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|

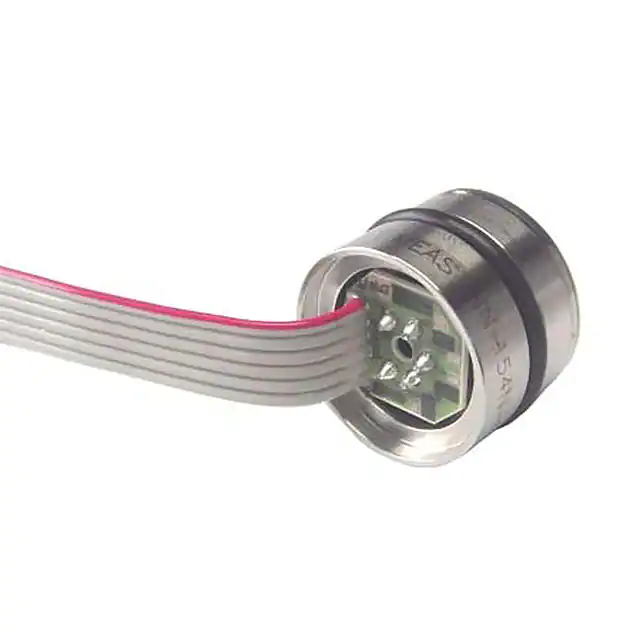

154N-500G-RSENSOR PRESSURE TE Connectivity Measurement Specialties |
2,703 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
154N-500G-RTSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,332 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
154N-030G-RTSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,994 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 90PSI (620.53kPa) | -40°C ~ 125°C |
|

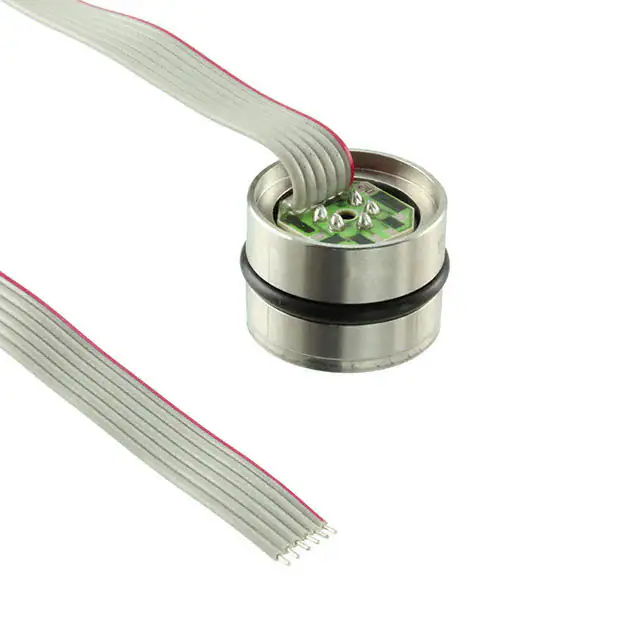

154N-300G-RSENSOR PRESSURE TE Connectivity Measurement Specialties |
3,611 | - |
RFQ |
Scheda tecnica |
Module | Tube | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
