Pressione Sensori, trasduttori
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP3V7007DPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
2,028 | - |
RFQ |
Scheda tecnica |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tray | MP3V7007 | Obsolete | Board Mount | Differential | ±1.02PSI (±7kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±5% | 2.7V ~ 3.3V | Male - 0.13 (3.3mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
MP3V7007GC6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
2,752 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tube | MP3V7007 | Obsolete | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±5% | 2.7V ~ 3.3V | Male - 0.13 (3.17mm) Tube | Barbless | Amplified Output, Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
MP3V7007GPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,678 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Side Port | Tray | MP3V7007 | Obsolete | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.06 V ~ 2.82 V | ±5% | 2.7V ~ 3.3V | Male - 0.13 (3.17mm) Tube | Barbed | Amplified Output, Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
MPVZ5050GW7UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
2,131 | - |
RFQ |
Scheda tecnica |
8-DIP Module | Tray | MPVZ5050G | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | - | 4.75V ~ 5.25V | Male - 0.22 (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
MPVZ7025G6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,624 | - |
RFQ |
Scheda tecnica |
8-SMD Module | Tray | MPXV7025 | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|
|
MPVZ7025GC6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,725 | - |
RFQ |
Scheda tecnica |
8-SMD Module | Tray | MPXV7025 | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|
|
MPVZ7025GPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,752 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Side Port | Tray | MPXV7025 | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|
MPX2050GSXIC PRESSURE SENSOR 4-PIN NXP USA Inc. |
3,584 | - |
RFQ |
Scheda tecnica |
4-SIP Module | Tray | MPX2050 | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
MPX2202AIC PRESSURE SENSOR 4-PIN NXP USA Inc. |
2,667 | - |
RFQ |
Scheda tecnica |
4-SIP Module | Tray | MPX2202 | Obsolete | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX4200AIC PRESSURE SENSOR 6-PIN NXP USA Inc. |
2,580 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX4200A | Obsolete | Board Mount | Absolute | 2.9PSI ~ 29.01PSI (20kPa ~ 200kPa) | Analog Voltage | 0.3 V ~ 4.9 V | - | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C |
|
MPX5010GSXIC PRESSURE SENSOR 6-PIN NXP USA Inc. |
2,901 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5010 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
|
MPXV12DPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
2,764 | - |
RFQ |
Scheda tecnica |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tray | MPXV12 | Obsolete | Board Mount | Differential | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | - | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
|
MPXV12GPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,119 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Side Port | Tray | MPXV12 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.19 (4.93mm) Tube | Barbed | - | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C |
|

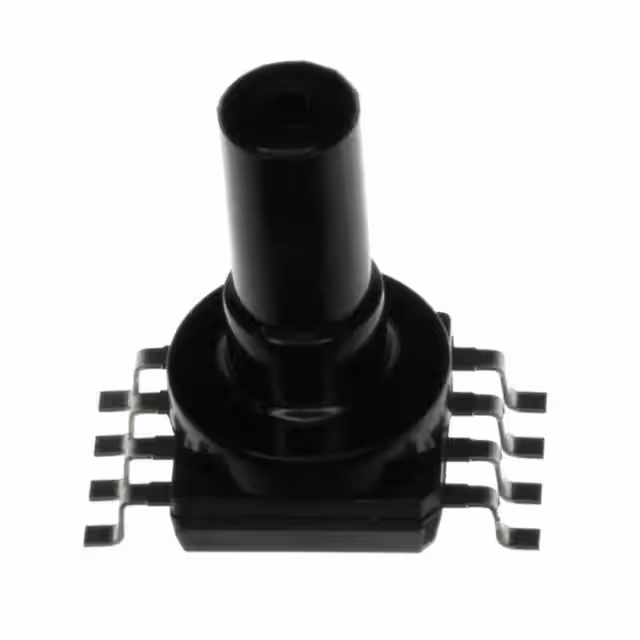

MPXV12GW6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,303 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tray | MPXV12 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.22 (5.59mm) Tube | Barbless | - | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
|
MPXV12GW7UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,155 | - |
RFQ |
Scheda tecnica |
8-DIP Module | Tray | MPXV12 | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 55 mV (3V) | ±5% | 3V ~ 6V | Male - 0.22 (5.59mm) Tube | Barbless | - | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
MPXV2053GVPIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,870 | - |
RFQ |
Scheda tecnica |
8-SMD Module | Tray | MPXV2053 | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | -0.6% ~ 0.4% | 10V ~ 16V | Male - 0.13 (3.3mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
|
MPXV5050GC6UIC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,881 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tube | MPXV5050 | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
|
MPXV7007DPT1IC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,798 | - |
RFQ |
Scheda tecnica |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR) | MPXV7007 | Obsolete | Board Mount | Differential | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C |
|
|
MPXV7025DPT1IC PRESSURE SENSOR 8-SOP NXP USA Inc. |
3,344 | - |
RFQ |
Scheda tecnica |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR) | MPXV7025 | Obsolete | Board Mount | Differential | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|

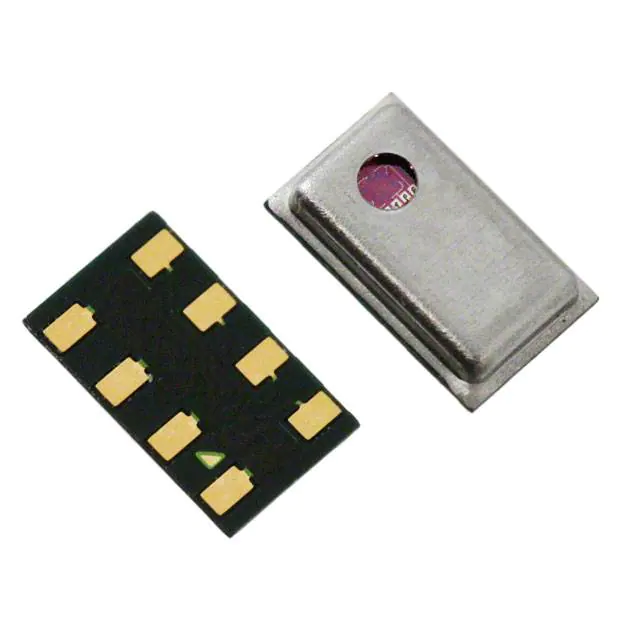

MPL115A1IC BAROMETER SPI DGTL MINI 8LGA NXP USA Inc. |
3,328 | - |
RFQ |
Scheda tecnica |
8-TLGA | Tray | - | Obsolete | Board Mount | Absolute | 7.25PSI ~ 16.68PSI (50kPa ~ 115kPa) | SPI | 10 b | ±0.145PSI (±1kPa) | 2.375V ~ 5.5V | - | No Port | Shutdown Mode, Standby Mode | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 105°C |
