Pressione Sensori, trasduttori
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX5010GPSENSOR GAUGE PRESS 1.45 PSI MAX NXP USA Inc. |
2,212 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
|
MPX5100APSENSOR ABS PRESS 16.68 PSI MAX NXP USA Inc. |
3,837 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5100 | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX5700GPSENSOR GAUGE PRESS 101.5 PSI MAX NXP USA Inc. |
2,551 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5700 | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C |
|
MPX5700DSENSOR DIFF PRESS 101.5PSI MAX NXP USA Inc. |
1,405 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5700 | Active | Board Mount | Differential | 101.53PSI (700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C |
|
MPXV7025DPPRESSURE SENSOR DUAL PORT 8-SOP NXP USA Inc. |
3,244 | - |
RFQ |
Scheda tecnica |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tray | MPXV7025 | Active | Board Mount | Differential | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C |
|
|
MPX4115ASENSOR ABS PRESS 16.7 PSI MAX NXP USA Inc. |
2,565 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX4115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | - | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX5100DPIC SENSOR PRESS 14.5 PSI MAX NXP USA Inc. |
3,095 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5100 | Active | Board Mount | Differential | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXV4115VC6USENSOR VAC PRESS -16.68PSI MAX NXP USA Inc. |
3,778 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tube | MPXV4115V | Not For New Designs | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C |
|
|
MPXA4250AC6UPRESSURE SENS 36.3PSI MAX 8-SOP NXP USA Inc. |
3,604 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tube | MPXA4250A | Not For New Designs | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.85V ~ 5.35V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|
|
MPXA6115AC6UPRESSURE SENS 16.7PSI MAX 8-SOP NXP USA Inc. |
2,687 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing, Top Port | Tube | MPXA6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX4250ASENSOR ABS PRESS 36.3PSI MAX NXP USA Inc. |
2,621 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX4250A | Active | Board Mount | Absolute | 2.9PSI ~ 29.01PSI (20kPa ~ 200kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|
|
MPX4115APSENSOR ABS PRESS 16.7 PSI MAX NXP USA Inc. |
3,047 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX4115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | - | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX4250DPSENSOR DIFF PRESS 36 PSI MAX NXP USA Inc. |
3,370 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX4250 | Active | Board Mount | Differential | 36.26PSI (250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.4% | 4.85V ~ 5.35V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|
|
MPX5050GPSENSOR GAUGE PRESS 7.25 PSI MAX NXP USA Inc. |
3,708 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Tray | MPX5050 | Active | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
1 PSI-D-CGRADE-MVSENSOR 1PSID MV DUAL Amphenol All Sensors Corporation |
100 | - |
RFQ |
Scheda tecnica |
6-SIP Module | Bulk | AXCX | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 16V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
ADP5110SENSOR PRESSURE 100KPA STD DIP Panasonic Electronic Components |
2,988 | - |
RFQ |
Scheda tecnica |
6-DIP Module | Bulk | PS-A | Active | Board Mount | Vacuum | -14.5PSI (-100kPa) | Analog Voltage | 0 V ~ 4.5 V | ±1.25% | 5V | Male - 0.12 (3mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | -29.01PSI (-200kPa) | -10°C ~ 60°C |
|
LPS25HBTRIC MEMS PRESSURE SENSOR 10HCLGA STMicroelectronics |
2,431 | - |
RFQ |
Scheda tecnica |
10-VFLGA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Board Mount | Absolute | 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa) | I²C, SPI | 24 b | ±0.003PSI (±0.02kPa) | 1.7V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 290.08PSI (2000kPa) | -30°C ~ 105°C |
|
HSCMRRN060MDSA3SENSOR PRES 3.3V SMD Honeywell Sensing and Productivity Solutions |
3,032 | - |
RFQ |
Scheda tecnica |
8-SMD, J-Lead, Dual Ports, Same Side | Bulk | TruStability® HSC | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | J Lead | ±12.33PSI (±85kPa) | -20°C ~ 85°C |
|

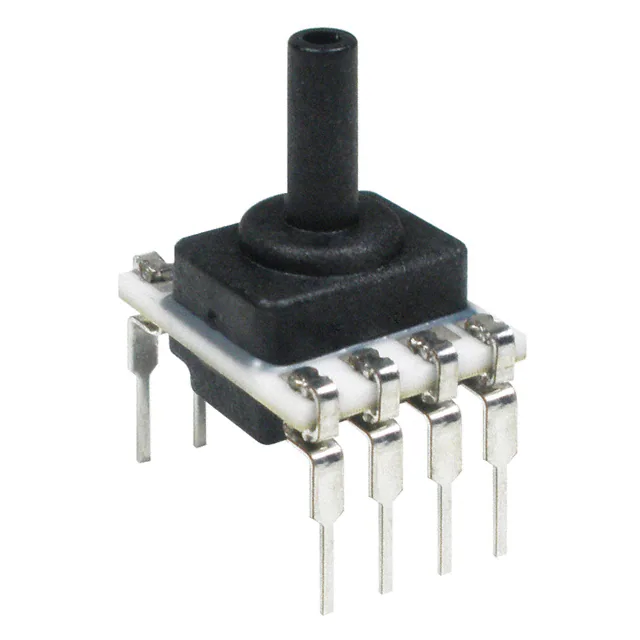

HSCDLNN001PDAA3SENSOR PRES 3.3V DIP Honeywell Sensing and Productivity Solutions |
3,866 | - |
RFQ |
Scheda tecnica |
8-DIP (0.524, 13.30mm), Top Port | Bulk | TruStability® HSC | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.1 (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C |
|
HSCSANN015PGAA3SENSOR PRES 3.3V SIP Honeywell Sensing and Productivity Solutions |
2,234 | - |
RFQ |
Scheda tecnica |
4-SIP, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C |
