Fusibili ripristinabili PTC
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1210L550SLWRPTC RESET FUSE 5.5A 6V 1210 Littelfuse Inc. |
2,700 | - |
RFQ |
Scheda tecnica |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 5.5 A | 11 A | 2 s | 1 mOhms | 11 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) |
|
|
1206L500SL-VWRPTC RESET FUSE 5.0A 6V 1206 Littelfuse Inc. |
2,589 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 5 A | 10 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
|
1206L500/12SLPRPTC RESET FUSE 5.0A 12V 1206 Littelfuse Inc. |
2,343 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 12V | 50 A | 5 A | 10 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.055 (1.40mm) |
|
TRF250-145T-B-0.5PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc. |
1,970 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
AHRF650-2PTC RESET FUSE 16V 6.5A RADIAL Littelfuse Inc. |
1,460 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 6.5 A | 13.7 A | 7 s | 9 mOhms | 26 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.874 (22.20mm) | - |
|
2920L600/16MR-APTC 16V POLYFUSE SMT 2920 6.0A Littelfuse Inc. |
1,954 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 16V | 40 A | 6 A | 12 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.063 (1.60mm) |
|
FEMTOASMDC010F/15-2PTC RESET FUSE 15V 100MA 0603 Littelfuse Inc. |
3,431 | - |
RFQ |
Scheda tecnica |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoASMD | Active | Polymeric | 15V | 10 A | 100 mA | 300 mA | 100 ms | 2 Ohms | 14 Ohms | - | - | PS300, PS400 | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|
TRF250-120T-RF-B-0.5-2PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc. |
1,378 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 900 ms | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TRF600-150-RB-B-0.5PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc. |
7,200 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 40 A | 150 mA | 300 mA | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
TRF600-160-0.130PTC RESET FUSE 250V 160MA RADIAL Littelfuse Inc. |
2,015 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 60 A | 160 mA | 320 mA | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|

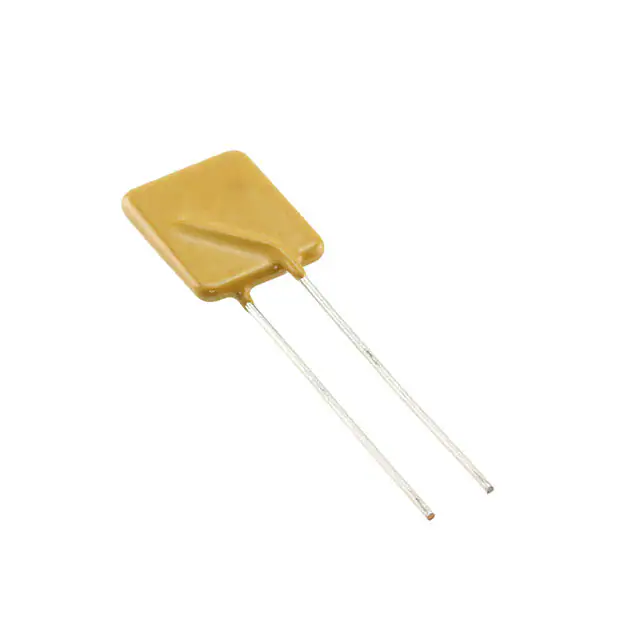

LVR055S-1PTC RESET FUSE 240V 550MA RADIAL Littelfuse Inc. |
1,302 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.854 (21.70mm) | - |
|
RGEF1400-2PTC RESET FUSE 16V 14A RADIAL Littelfuse Inc. |
1,593 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.114 W (23.50mm x 2.90mm) | 1.098 (27.90mm) | - |
|
|
TRF600-160-RAPTC RESET FUSE 250V 160MA RADIAL Littelfuse Inc. |
1,150 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 60 A | 160 mA | 320 mA | 18 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|
RHEF1300-2PTC RESET FUSE 16V 13A RADIAL Littelfuse Inc. |
1,381 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 13 A | 24 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - |
|
1206L050/24WRPTC RESET FUSE 24V 500MA 1206 Littelfuse Inc. |
2,220 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 24V | 100 A | 500 mA | 1 A | 100 ms | 150 mOhms | 750 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.049 (1.25mm) |
|
1812L260/16MR-APTC 16V POLYFUSE SMT 1812 2.60A Littelfuse Inc. |
1,802 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 16V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.079 (2.00mm) |
|
1210L260SLYRPTC RESET FUSE 6V 2.6A 1210 Littelfuse Inc. |
3,620 | - |
RFQ |
Scheda tecnica |
1210 (3225 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2.6 A | 5 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
|
1812L260SLPRPTC RESET FUSE 6V 2.6A 1812 Littelfuse Inc. |
3,685 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2.6 A | 6 A | 2 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.028 (0.70mm) |
|
1206L300SLTHYRPTC RESET FUSE 6V 3A 1206 Littelfuse Inc. |
6,793 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 3 A | 6 A | 4 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.032 (0.80mm) |
|
1206L150SLYRPTC RESET FUSE 6V 1.5A 1206 Littelfuse Inc. |
2,158 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 1.5 A | 3.9 A | 300 ms | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.028 (0.70mm) |
