Fusibili ripristinabili PTC
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

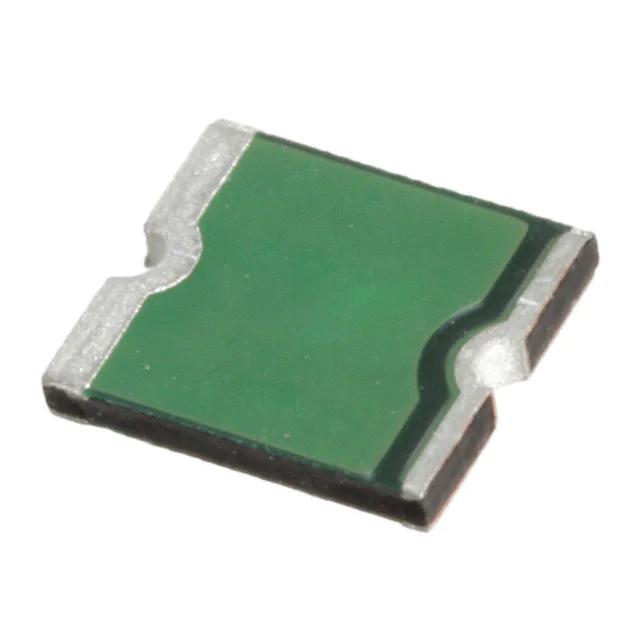

DECASMDC050F/60-2PTC RESET FUSE 60V 550MA 2018 Littelfuse Inc. |
3,569 | - |
RFQ |
Scheda tecnica |
2018 (5045 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, decaSMD | Active | Polymeric | 60V | 10 A | 550 mA | 1.1 A | 100 ms | 200 mOhms | 1.1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.197 L x 0.177 W (5.01mm x 4.50mm) | - | 0.035 (0.89mm) |
|
SMD250F-2PTC RESET FUSE 15V 2.5A 2SMD Littelfuse Inc. |
3,085 | - |
RFQ |
Scheda tecnica |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 15V | 40 A | 2.5 A | 5 A | 25 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|
MINISMDC075F/24-2PTC RESET FUSE 24V 750MA 1812 Littelfuse Inc. |
2,111 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 24V | 40 A | 750 mA | 1.5 A | 300 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.057 (1.46mm) |
|
1210L035/30WRPTC RESET FUSE 30V 350MA 1210 Littelfuse Inc. |
3,729 | - |
RFQ |
Scheda tecnica |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Active | Polymeric | 30V | 40 A | 350 mA | 700 mA | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.049 (1.25mm) |
|
1812L035/60MRPTC RESET FUSE 60V 350MA 1812 Littelfuse Inc. |
3,937 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 60V | 10 A | 350 mA | 700 mA | 150 ms | 400 mOhms | 1.7 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.071 (1.80mm) |
|
RXEF110PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc. |
2,674 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
RXEF160PTC RESET FUSE 72V 1.6A RADIAL Littelfuse Inc. |
3,882 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.642 Dia x 0.118 T (16.30mm x 3.00mm) | 0.819 (20.80mm) | - |
|
RKEF250PTC RESET FUSE 60V 2.5A RADIAL Littelfuse Inc. |
3,386 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 2.5 A | 5 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.512 L x 0.150 W (13.00mm x 3.81mm) | 0.740 (18.80mm) | - |
|
RUEF600PTC RESET FUSE 30V 6A RADIAL Littelfuse Inc. |
3,284 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.949 (24.10mm) | - |
|
LVR040SPTC RESET FUSE 240V 400MA RADIAL Littelfuse Inc. |
2,260 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bulk | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 5.5 A | 400 mA | 900 mA | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.150 W (11.50mm x 3.80mm) | 0.768 (19.50mm) | - |
|
0402L010SLKRPTC RESET FUSE 6V 100MA 0402 Littelfuse Inc. |
2,472 | - |
RFQ |
Scheda tecnica |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 40 A | 100 mA | 300 mA | 1 s | 150 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
|
RKEF500PTC RESET FUSE 60V 5A RADIAL Littelfuse Inc. |
2,623 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 5 A | 10 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.142 (29.00mm) | - |
|
NANOASMDC012F-2PTC RESET FUSE 48V 120MA 1206 Littelfuse Inc. |
2,497 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoASMD | Active | Polymeric | 48V | 10 A | 120 mA | 390 mA | 200 ms | 1.4 Ohms | 6.5 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.039 (1.00mm) |
|
|
NANOASMDC016F-2PTC RESET FUSE 48V 160MA 1206 Littelfuse Inc. |
2,537 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoASMD | Active | Polymeric | 48V | 10 A | 160 mA | 450 mA | 300 ms | 1.1 Ohms | 5 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.039 (1.00mm) |
|
MINIASMDC014F-2PTC RESET FUSE 60V 140MA 1812 Littelfuse Inc. |
3,191 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 60V | 10 A | 140 mA | 280 mA | 8 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.035 (0.89mm) |
|
|
MINIASMDC020F-2PTC RESET FUSE 30V 200MA 1812 Littelfuse Inc. |
2,345 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 30V | 10 A | 200 mA | 400 mA | 20 ms | 600 mOhms | 3.3 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.035 (0.89mm) |
|
RUEF250-APPTC RESET FUSE 30V 2.5A RADIAL Littelfuse Inc. |
2,391 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 2.5 A | 5 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
1206L035/30WRPTC RESET FUSE 30V 350MA 1206 Littelfuse Inc. |
2,286 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 30V | 100 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
|
1206L020/30YRPTC RESET FUSE 30V 20MA 1206 Littelfuse Inc. |
3,471 | - |
RFQ |
Scheda tecnica |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 30V | 100 A | 200 mA | 420 mA | 100 ms | 650 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
|
SMD200F/24-2920-2PTC RESET FUSE 24V 2A 2SMD Littelfuse Inc. |
2,388 | - |
RFQ |
Scheda tecnica |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 24V | 40 A | 2 A | 4 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
