Fusibili ripristinabili PTC

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
0805L150/12SLYR LOW RHO SMD Littelfuse Inc.	2,676	-	RFQ	Scheda tecnica	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch® Low Rho	Active	Polymeric	12V	50 A	1.5 A	3 A	500 ms	7 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.030 (0.75mm)
RUEF700K PTC RESET FUSE 30V 7A RADIAL Littelfuse Inc.	250	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.752 L x 0.118 W (19.10mm x 3.00mm)	1.091 (27.70mm)	-
1206L700SLPR LOW RHO SMD Littelfuse Inc.	2,245	-	RFQ	Scheda tecnica	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch® 1206L	Active	Polymeric	6V	50 A	7 A	14 A	2 s	1 mOhms	7 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.055 (1.40mm)
RUEF800K PTC RESET FUSE 30V 8A RADIAL Littelfuse Inc.	2,821	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	8 A	16 A	18.8 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.118 W (21.60mm x 3.00mm)	1.189 (30.20mm)	-
AHRL1000 PTC RESET FUSE 10A 16V RAD Littelfuse Inc.	3,197	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	10 A	20 A	10 s	4.2 mOhms	6.8 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.567 L x 0.142 W (14.40mm x 3.60mm)	0.882 (22.40mm)	-

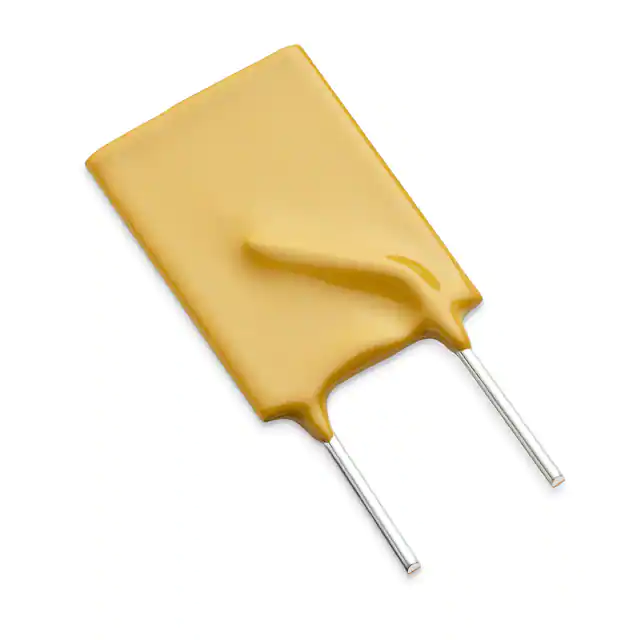

AHRL1500 PTC RESET FUSE 15A 16V RAD Littelfuse Inc.	2,996	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	15 A	30 A	18 s	2.9 mOhms	4.3 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.724 L x 0.142 W (18.40mm x 3.60mm)	1.039 (26.40mm)	-
RXEF020-AP PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	2,786	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	200 mA	400 mA	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.461 (11.70mm)	-
RUSBF075-2 PTC RESET FUSE 6V 750MA RADIAL Littelfuse Inc.	2,097	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUSBF	Active	Polymeric	6V	40 A	750 mA	1.3 A	400 ms	110 mOhms	230 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.272 L x 0.118 W (6.90mm x 3.00mm)	0.449 (11.40mm)	-
RUSBF075-AP PTC RESET FUSE 6V 750MA RADIAL Littelfuse Inc.	2,021	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUSBF	Active	Polymeric	6V	40 A	750 mA	1.3 A	400 ms	110 mOhms	230 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.272 Dia x 0.122 T (6.90mm x 3.10mm)	0.449 (11.40mm)	-
1210L500SLTH-VYR PTC RESET FUSE 6V 5A 1210 Littelfuse Inc.	2,692	-	RFQ	Scheda tecnica	1210 (3225 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	5 A	10 A	-	-	-	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.031 (0.80mm)
TCF250-120 PTC RESET FUSE 60V 120MA SMD Littelfuse Inc.	3,766	-	RFQ	Scheda tecnica	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Active	Polymeric	60V (250V Int)	3 A	120 mA	240 mA	900 ms	5 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.217 L x 0.217 W (5.50mm x 5.50mm)	-	0.091 (2.30mm)

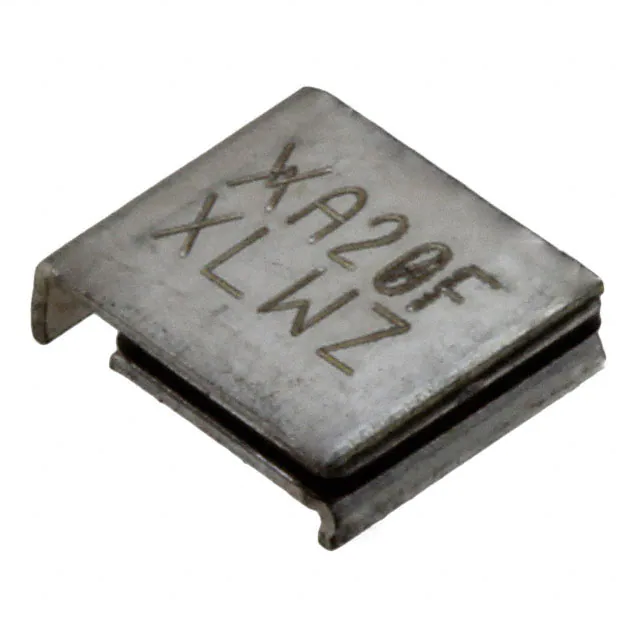

SMD200F-2018-2 PTC RESET FUSE 6V 2A 2SMD Littelfuse Inc.	3,836	-	RFQ	Scheda tecnica	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	6V	40 A	2 A	4.2 A	3 s	48 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.180 W (5.08mm x 4.58mm)	-	0.060 (1.52mm)
RXEF135K-AP PTC RESET FUSE 72V 1.35A RADIAL Littelfuse Inc.	3,237	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.35 A	2.7 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.535 Dia x 0.118 T (13.58mm x 3.00mm)	0.776 (19.70mm)	-
RUSBF160-2 PTC RESET FUSE 16V 1.6A RADIAL Littelfuse Inc.	3,536	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	1.6 A	3.2 A	9 s	30 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.598 (15.20mm)	-
TCF250-145 PTC RESET FUSE 60V 145MA SMD Littelfuse Inc.	3,500	-	RFQ	Scheda tecnica	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Active	Polymeric	60V (250V Int)	3 A	145 mA	290 mA	2.5 s	3 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.217 L x 0.217 W (5.50mm x 5.50mm)	-	0.091 (2.30mm)
SMDC050F-2 PTC RESET FUSE 60V 500MA 2920 Littelfuse Inc.	3,854	-	RFQ	Scheda tecnica	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMDC	Active	Polymeric	60V	10 A	500 mA	1 A	4 s	150 mOhms	1.2 Ohms	-	-	-	Surface Mount	0.295 L x 0.201 W (7.50mm x 5.10mm)	-	0.035 (0.90mm)
RXEF185K-2 PTC RESET FUSE 72V 1.85A RADIAL Littelfuse Inc.	3,344	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.85 A	3.7 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.660 Dia x 0.118 T (16.76mm x 3.00mm)	0.906 (23.00mm)	-
RUEF400K-AP PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	2,023	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.839 (21.30mm)	-
FEMTOSMDC010F/15-2 PTC RESET FUSE 15V 100MA 0603 Littelfuse Inc.	3,516	-	RFQ	Scheda tecnica	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, femtoSMDC	Active	Polymeric	15V	40 A	100 mA	300 mA	100 ms	2 Ohms	14 Ohms	-	-	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.033 (0.85mm)
15LR380U PTC RESET FUSE 15V 3.8A STRAP Littelfuse Inc.	3,043	-	RFQ	Scheda tecnica	Strap	Bulk	POLY-FUSE®, LR	Active	Polymeric	15V	100 A	3.8 A	8.3 A	5 s	13 mOhms	37 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.283 W (25.00mm x 7.20mm)	-	0.039 (1.00mm)
