Fusibili ripristinabili PTC
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

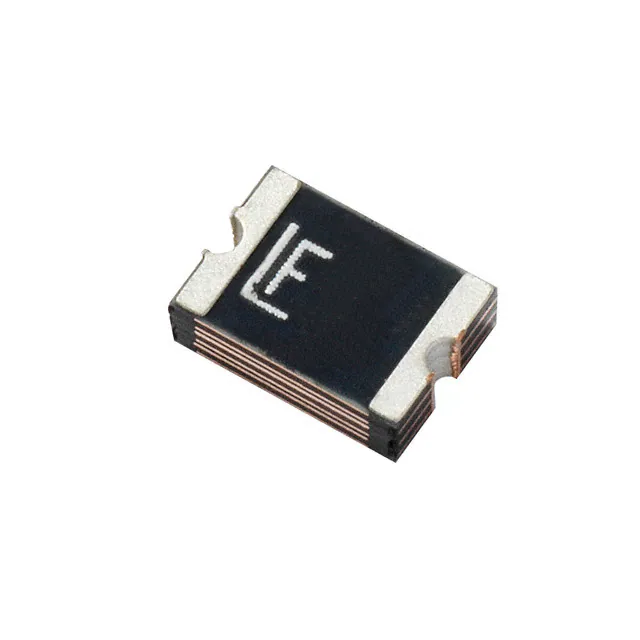

1812L075/33DRPTC RESET FUSE 33V 750MA 1812 Littelfuse Inc. |
60,006 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 33V | 20 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.061 (1.55mm) |
|
|
1812L075/24DRPTC RESET FUSE 24V 750MA 1812 Littelfuse Inc. |
46,760 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 24V | 100 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.061 (1.55mm) |
|

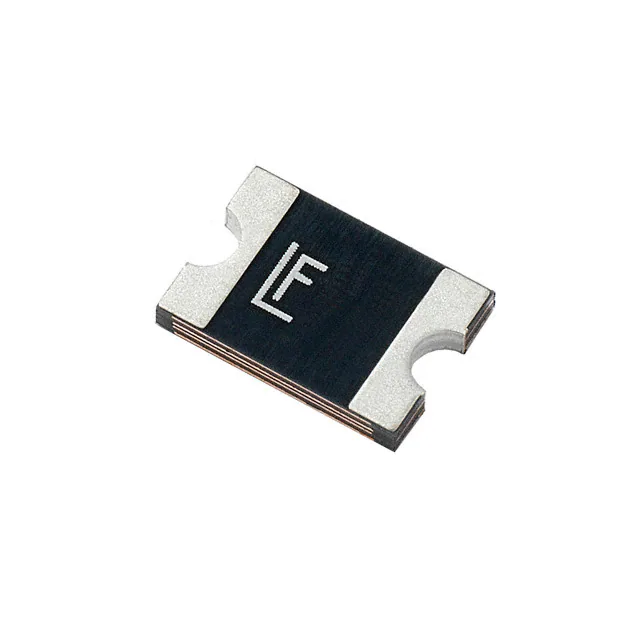

2920L100PRPTC RESET FUSE 33V 1.1A 2920 Littelfuse Inc. |
42,738 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 33V | 40 A | 1.1 A | 2.2 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
MINISMDC150F/24-2PTC RESET FUSE 24V 1.5A 1812 Littelfuse Inc. |
59,099 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 24V | 20 A | 1.5 A | 3 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.076 (1.94mm) |
|
|
1812L150/24MRPTC RESET FUSE 24V 1.5A 1812 Littelfuse Inc. |
55,387 | - |
RFQ |
Scheda tecnica |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 24V | 20 A | 1.5 A | 3 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.071 (1.80mm) |
|
|
2920L150DRPTC RESET FUSE 33V 1.5A 2920 Littelfuse Inc. |
27,080 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 33V | 40 A | 1.5 A | 3 A | 2 s | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
|
2920L075DRPTC RESET FUSE 30V 750MA 2920 Littelfuse Inc. |
21,635 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 30V | 40 A | 750 mA | 1.5 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
|
2920L050DRPTC RESET FUSE 60V 500MA 2920 Littelfuse Inc. |
15,861 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 60V | 10 A | 500 mA | 1 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|

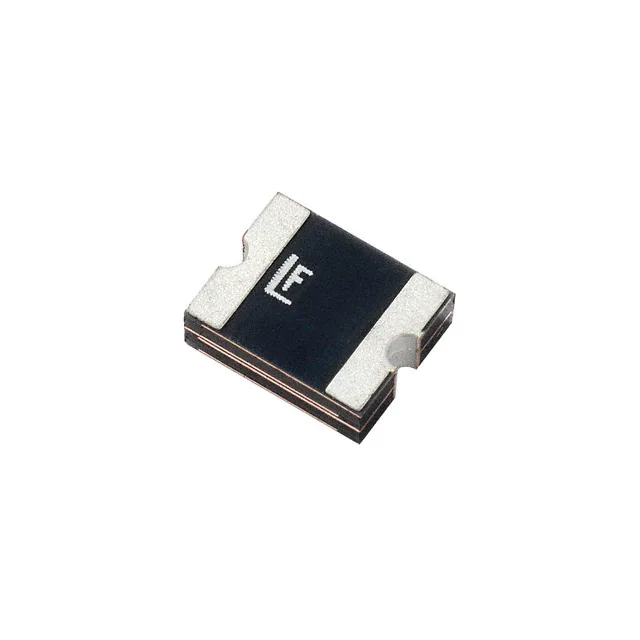

2016L030DRPTC RESET FUSE 60V 300MA 2016 Littelfuse Inc. |
6,962 | - |
RFQ |
Scheda tecnica |
2016 (5041 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2016L | Active | Polymeric | 60V | 20 A | 300 mA | 600 mA | 3 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.160 W (5.08mm x 4.07mm) | - | 0.049 (1.25mm) |
|
SMD185F-2PTC RESET FUSE 33V 1.85A 2SMD Littelfuse Inc. |
87,088 | - |
RFQ |
Scheda tecnica |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 33V | 40 A | 1.85 A | 3.6 A | 5 s | 65 mOhms | 165 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|
|
2016L050MRPTC RESET FUSE 60V 550MA 2016 Littelfuse Inc. |
110,895 | - |
RFQ |
Scheda tecnica |
2016 (5041 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2016L | Active | Polymeric | 60V | 20 A | 550 mA | 1.1 A | 5 s | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.160 W (5.08mm x 4.07mm) | - | 0.079 (2.00mm) |
|

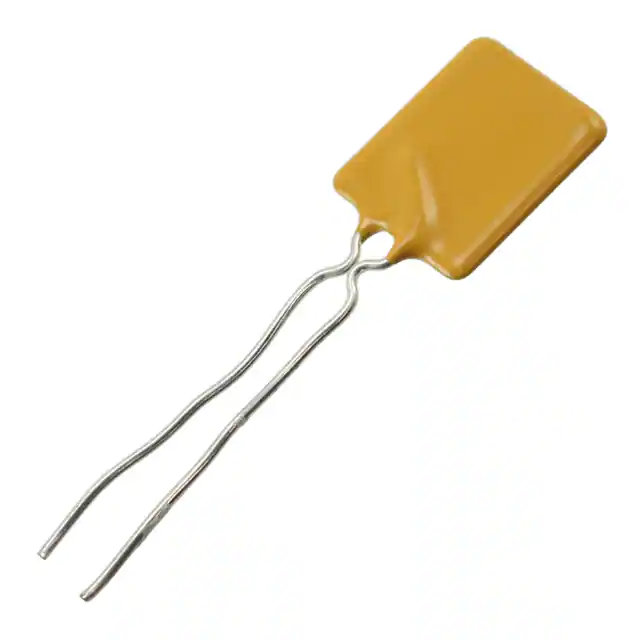

30R400UMRPTC RESET FUSE 30V 4A RADIAL Littelfuse Inc. |
22,303 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.866 (22.00mm) | - |
|

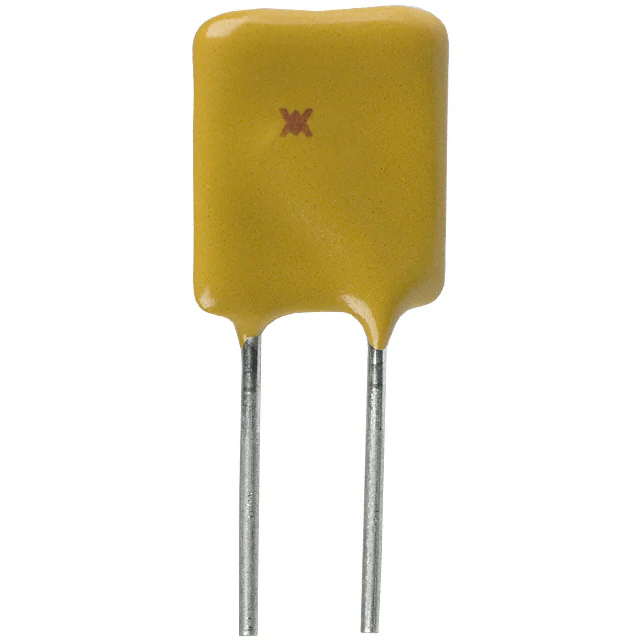

RUEF400-2PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc. |
3,774 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.760 (19.30mm) | - |
|

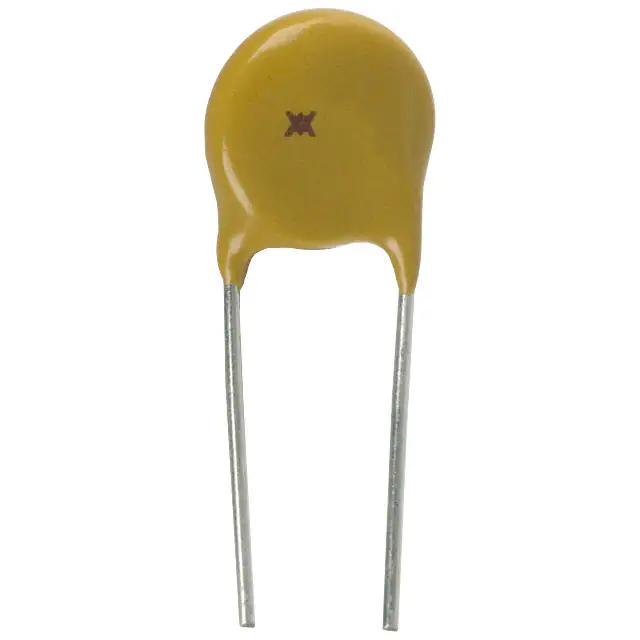

LVR005NS-2PTC RESET FUSE 240V 50MA RADIAL Littelfuse Inc. |
46,630 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1 A | 50 mA | 120 mA | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.181 T (6.90mm x 4.60mm) | 0.390 (9.90mm) | - |
|

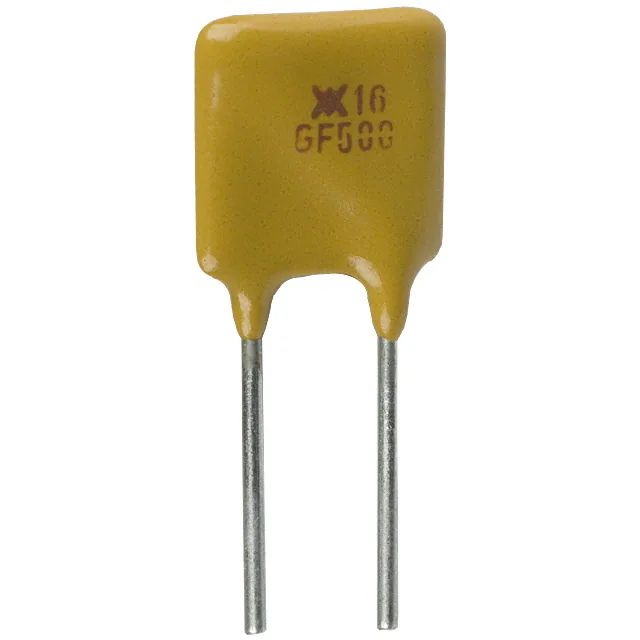

RGEF500-2PTC RESET FUSE 16V 5A RADIAL Littelfuse Inc. |
30,363 | - |
RFQ |
Scheda tecnica |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|
|
2016L300/16MRPTC RESET FUSE 16V 3A 2016 Littelfuse Inc. |
40,798 | - |
RFQ |
Scheda tecnica |
2016 (5041 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2016L | Active | Polymeric | 16V | 40 A | 3 A | 5 A | 10 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.160 W (5.08mm x 4.07mm) | - | 0.045 (1.15mm) |
, Concave.jpg)
|

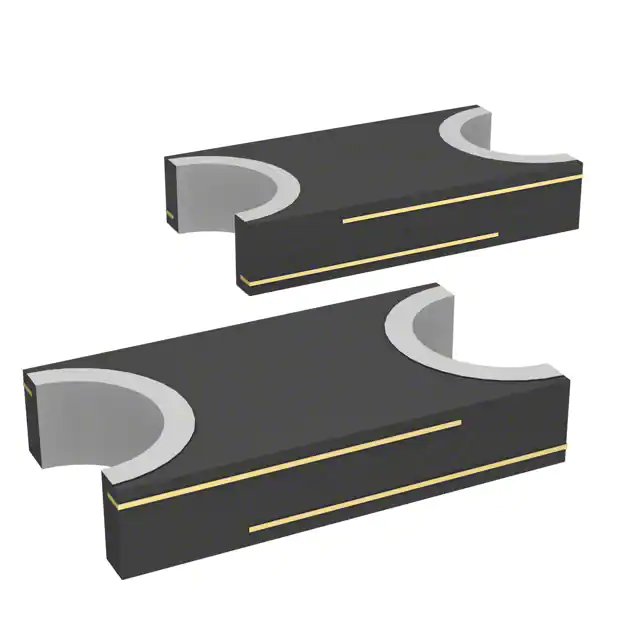

FEMTOSMDC005F-2PTC RESET FUSE 15V 50MA 0603 Littelfuse Inc. |
40,109 | - |
RFQ |
Scheda tecnica |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMD | Active | Polymeric | 15V | 40 A | 50 mA | 150 mA | 100 ms | 3.8 Ohms | 30 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|
|
2920L075/60MRPTC RESET FUSE 60V 750MA 2920 Littelfuse Inc. |
54,258 | - |
RFQ |
Scheda tecnica |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 60V | 10 A | 750 mA | 1.5 A | 300 ms | 300 mOhms | 950 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
;RA.JPG)
|
PRG21BC6R8MM1RAPTC RESET FUSE 30V 120MA 0805 Murata Electronics |
20,376 | - |
RFQ |
Scheda tecnica |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | POSISTOR®, PRG | Not For New Designs | Ceramic | 30V | 5.5 A | 120 mA | 260 mA | - | - | - | 6.8 Ohms | -20°C ~ 85°C | - | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | - | 0.043 (1.10mm) |
|
|
PRG21BC4R7MM1RAPTC RESET FUSE 30V 155MA 0805 Murata Electronics |
32,562 | - |
RFQ |
Scheda tecnica |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | POSISTOR®, PRG | Not For New Designs | Ceramic | 30V | 8 A | 155 mA | 330 mA | - | - | - | 4.7 Ohms | -20°C ~ 85°C | - | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | - | 0.043 (1.10mm) |
