Relè Reed
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT72410FURELAY REED SPST-NO 2A 24V Sensata-Cynergy3 |
2,826 | - |
RFQ |
Scheda tecnica |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DBT72410PRELAY REED SPST-NC 2A 24V Sensata-Cynergy3 |
2,096 | - |
RFQ |
Scheda tecnica |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
HE12-1A69-02RELAY REED SPST 3A 12V Standex-Meder Electronics |
3,833 | - |
RFQ |
Scheda tecnica |
Bulk | HE | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
HM12-1A69-150RELAY REED SPST 3A 12V Standex-Meder Electronics |
2,875 | - |
RFQ |
Scheda tecnica |
Bulk | HM | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
DBT71210FURELAY REED SPST-NC 2A 12V Sensata-Cynergy3 |
2,472 | - |
RFQ |
Scheda tecnica |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT71215-HRRELAY REED SPST-NO 2A 12V Sensata-Cynergy3 |
2,879 | - |
RFQ |
Scheda tecnica |
Tray | D-HR | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT72415-HRRELAY REED SPST-NO 2A 24V Sensata-Cynergy3 |
3,768 | - |
RFQ |
Scheda tecnica |
Tray | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71215PRELAY REED SPST-NO 2A 12V Sensata-Cynergy3 |
2,205 | - |
RFQ |
Scheda tecnica |
Tray | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
24HV1A100HV REED RELAY SPST NO 10KV 24V Sensata-Cynergy3 |
2,489 | - |
RFQ |
Scheda tecnica |
Bulk | XXHV | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 5000VDC - Max | 60 mA | Non Latching | - | Solder Turret | - | 19 VDC | 2 VDC | - | - | - |
|
DIP15-2A72-21LRELAY REED DPST-NO 1A 15V Standex-Meder Electronics |
2,067 | - |
RFQ |
Scheda tecnica |
Tube | DIP | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 10.5 VDC | 2.2 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C |
|
8L61-12-101RELAY REED SPDT 250MA 12V Coto Technology |
2,698 | - |
RFQ |
Scheda tecnica |
Bulk | 8L | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
S1-1204RELAY REED 4KV SPST 12V SIP Sensata-Cynergy3 |
3,719 | - |
RFQ |
Scheda tecnica |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
S2-05EURELAY REED SPST 1A 5V UL Sensata-Cynergy3 |
3,660 | - |
RFQ |
Scheda tecnica |
Bulk | S2 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S2-12EURELAY REED SPST 1A 12V UL Sensata-Cynergy3 |
3,979 | - |
RFQ |
Scheda tecnica |
Bulk | S2 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S2-24EURELAY REED SPST 1A 24V UL Sensata-Cynergy3 |
2,739 | - |
RFQ |
Scheda tecnica |
Bulk | S2 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-0504DRELAY REED 4KV SPST 5V SIP W/DIO Sensata-Cynergy3 |
2,757 | - |
RFQ |
Scheda tecnica |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
2271-12-001RELAY REED SPDT 250MA 12V Coto Technology |
3,758 | - |
RFQ |
Scheda tecnica |
Tube | 2270 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 125°C |
|
|
S1-2404DMRELAY REED 4KV SPST 24V SIP W/DI Sensata-Cynergy3 |
2,021 | - |
RFQ |
Scheda tecnica |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|

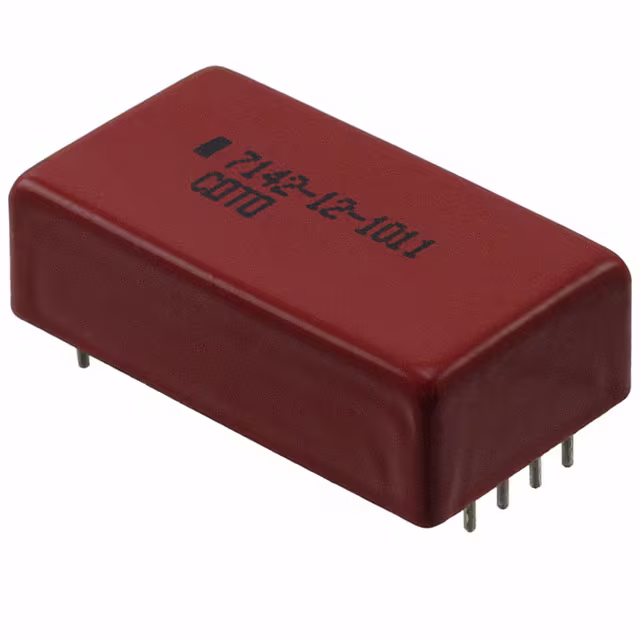

7142-12-1011RELAY REED DPDT 250MA 12V Coto Technology |
2,572 | - |
RFQ |
Scheda tecnica |
Bulk | 7000 | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C |
|
DBR71205URELAY REED SPST-NC 5KV 12V Sensata-Cynergy3 |
3,299 | - |
RFQ |
Scheda tecnica |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
