Relè di segnale, fino a 2 Ampere

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
J102K1AS15VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,213	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	5VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS112VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,435	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS16VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,537	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	6VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS112VDC.45 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,380	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	12VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	37.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS16VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,289	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	6VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.5 VDC	0.6 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS112VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,307	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	12VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS124VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,665	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021AS124VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,407	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS124VDC.45 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,039	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021CS124VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,973	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021AS124VDC.45 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,747	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J1021AS124VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,816	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS124VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,839	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS124VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,746	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1CS124VDC.45 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,213	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPDT (1 Form C)	1 A	300VAC, 150VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS124VDC.45 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	3,827	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	18.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS124VDC.36 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,495	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	15 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)
J102K1AS124VDC.20 RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,996	-	RFQ	Scheda tecnica	Tube	J102	Active	Through Hole	24VDC	SPST-NO (1 Form A)	1 A	300VAC, 150VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	18 VDC	2.4 VDC	5 ms	5 ms	-40°C ~ 85°C	Silver (Ag)

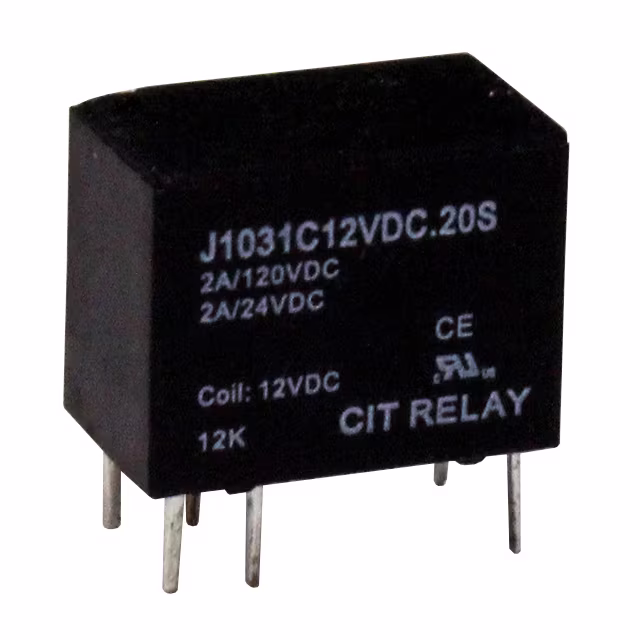

J1031C12VDC.20S RELAY UL GEN PURP SPDT 12VDC CIT Relay and Switch	3,496	-	RFQ	Scheda tecnica	Tube	J103	Active	Through Hole	12VDC	SPDT (1 Form C)	2 A	125VAC, 60VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9 VDC	1.2 VDC	4.5 ms	1.5 ms	-40°C ~ 85°C	Silver (Ag), Gold (Au)
J1031C5VDC.20S RELAY UL APPROVED GEN PURPOSE SP CIT Relay and Switch	2,493	-	RFQ	Scheda tecnica	Tube	J103	Active	Through Hole	5VDC	SPDT (1 Form C)	2 A	125VAC, 60VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.75 VDC	0.5 VDC	4.5 ms	1.5 ms	-40°C ~ 85°C	Silver (Ag), Gold (Au)
