Relè allo stato solido

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Package/Case	Packaging	Series	ProductStatus	MountingType	Circuit	OutputType	Voltage-Input	Voltage-Load	LoadCurrent	On-StateResistance(Max)	TerminationStyle

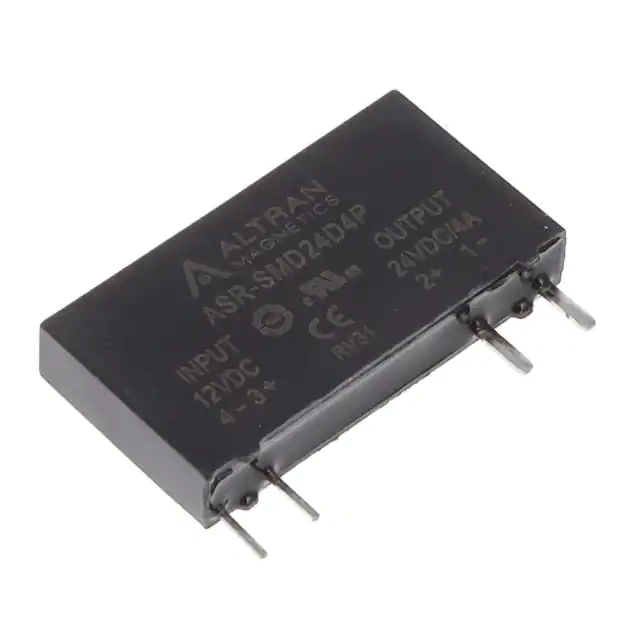

ASR-SMD24D4P SIM TYPE PCB MOUNTED DC TO DC SS Altran Magnetics, LLC	3,274	-	RFQ	Scheda tecnica	4-SIP	Box	SMD	Active	Through Hole	SPST-NO (1 Form A)	DC	12VDC	3 V ~ 28 V	4 A	37 mOhms	PC Pin
ASR-SMA240D2ZN-K SIM TYPE PCB MOUNTED DC TO AC SS Altran Magnetics, LLC	3,356	-	RFQ	Scheda tecnica	Module	Box	SMA	Active	DIN Rail	SPST-NO (1 Form A)	AC, Zero Cross	5VDC	24 V ~ 280 V	2 A	-	Screw Terminal
ASR-SMD24D4T SIM TYPE PCB MOUNTED DC TO DC SS Altran Magnetics, LLC	2,586	-	RFQ	Scheda tecnica	4-SIP	Box	SMD	Active	Through Hole	SPST-NO (1 Form A)	DC	60VDC	3 V ~ 28 V	4 A	37 mOhms	PC Pin

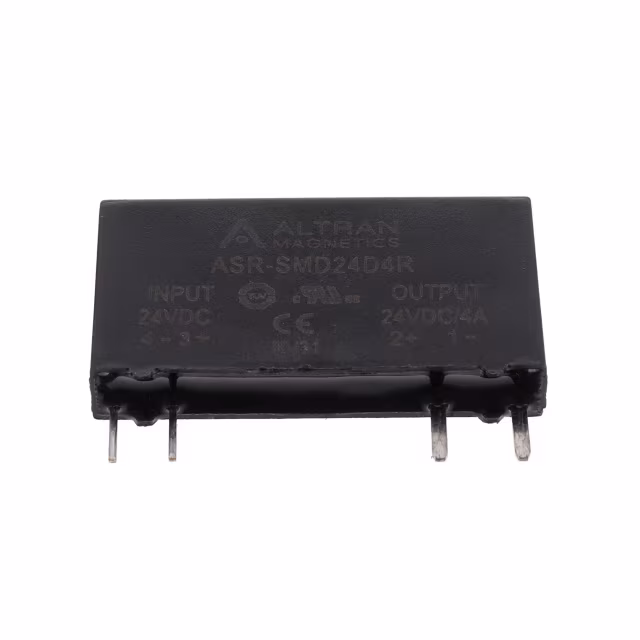

ASR-SMD24D4R SIM TYPE PCB MOUNTED DC TO DC SS Altran Magnetics, LLC	2,556	-	RFQ	Scheda tecnica	4-SIP	Box	SMD	Active	Through Hole	SPST-NO (1 Form A)	DC	24VDC	3 V ~ 28 V	4 A	37 mOhms	PC Pin
ASR-SMA240D2ZR-K SIM TYPE PCB MOUNTED DC TO AC SS Altran Magnetics, LLC	2,828	-	RFQ	Scheda tecnica	Module	Box	SMA	Active	DIN Rail	SPST-NO (1 Form A)	AC, Zero Cross	24VDC	24 V ~ 280 V	2 A	-	Screw Terminal
ASR-SI240A10ZY-L SINGLE PHASE PANEL MOUNTED AC TO Altran Magnetics, LLC	2,384	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC, Zero Cross	90 ~ 280VAC	48 V ~ 280 V	10 A	-	Screw Terminal
ASR-SI240A25ZY SINGLE PHASE PANEL MOUNTED AC TO Altran Magnetics, LLC	2,654	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC, Zero Cross	90 ~ 280VAC	48 V ~ 280 V	25 A	-	Screw Terminal
ASR-SH240D25RW PCB MOUNTED HEATSINK INTEGRATED Altran Magnetics, LLC	3,292	-	RFQ	Scheda tecnica	4-SIP	Box	SH	Active	Through Hole	SPST-NO (1 Form A)	AC	4 ~ 32VDC	24 V ~ 280 V	25 A	-	PC Pin
ASR-SI480A25RY-LV SINGLE PHASE PANEL MOUNTED AC TO Altran Magnetics, LLC	3,223	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC	90 ~ 280VAC	48 V ~ 530 V	25 A	-	Screw Terminal
ASR-SH480D25RW PCB MOUNTED HEATSINK INTEGRATED Altran Magnetics, LLC	2,097	-	RFQ	Scheda tecnica	4-SIP	Box	SH	Active	Through Hole	SPST-NO (1 Form A)	AC	4 ~ 32VDC	24 V ~ 530 V	25 A	-	PC Pin
ASR-SH480D25ZW PCB MOUNTED HEATSINK INTEGRATED Altran Magnetics, LLC	2,199	-	RFQ	Scheda tecnica	4-SIP	Box	SH	Active	Through Hole	SPST-NO (1 Form A)	AC, Zero Cross	4 ~ 32VDC	24 V ~ 530 V	25 A	-	PC Pin
ASR-SI240D60ZW-LR7 SINGLE PHASE PANEL MOUNTED DC TO Altran Magnetics, LLC	2,914	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC, Zero Cross	4 ~ 32VDC	48 V ~ 280 V	60 A	-	Screw Terminal
ASR-SLE60D3-L MINI TYPE SINGLE POLE PANEL MOUN Altran Magnetics, LLC	3,251	-	RFQ	Scheda tecnica	-	Box	ASR-SLE	Active	Through Hole	-	DC	-	0 V ~ 50 V	3 A	400 mOhms	PC Pin
ASR-SMA240D2ZT SIM TYPE PCB MOUNTED DC TO AC SS Altran Magnetics, LLC	3,141	-	RFQ	Scheda tecnica	4-SIP	Box	SMA	Active	Through Hole	SPST-NO (1 Form A)	AC, Zero Cross	60VDC	24 V ~ 280 V	2 A	-	PC Pin
ASR-SMD48D0.1T SIM TYPE PCB MOUNTED DC TO DC SS Altran Magnetics, LLC	3,923	-	RFQ	Scheda tecnica	4-SIP	Box	ASR-SMD	Active	Through Hole	SPST-NO (1 Form A)	DC	60VDC	3 V ~ 58 V	100 mA	37 mOhms	PC Pin
ASR-SD380D5RH PCB MOUNTED SSR 380VAC 5A RANDOM Altran Magnetics, LLC	3,674	-	RFQ	Scheda tecnica	4-SIP	Box	SD	Active	Through Hole	SPST-NO (1 Form A)	AC	15 ~ 32VDC	24 V ~ 440 V	5 A	-	PC Pin
ASR-SIM240D16RW-LQ MINI TYPE SINGLE POLE PANEL MOUN Altran Magnetics, LLC	2,782	-	RFQ	Scheda tecnica	Hockey Puck	Box	SIM	Active	Chassis Mount	SPST-NO (1 Form A)	AC	4 ~ 32VDC	24 V ~ 280 V	16 A	-	Quick Connect, Disconnect
ASR-SI240D10ZW-LU SINGLE PHASE PANEL MOUNTED DC TO Altran Magnetics, LLC	3,122	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC, Zero Cross	4 ~ 32VDC	48 V ~ 280 V	10 A	-	Screw Terminal
ASR-SI240D10ZW-M SINGLE PHASE PANEL MOUNTED DC TO Altran Magnetics, LLC	3,421	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC, Zero Cross	4 ~ 32VDC	48 V ~ 280 V	10 A	-	Screw Terminal
ASR-SI240D10RW-LM SINGLE PHASE PANEL MOUNTED DC TO Altran Magnetics, LLC	3,738	-	RFQ	Scheda tecnica	Hockey Puck	Box	SI	Active	Chassis Mount	SPST-NO (1 Form A)	AC	4 ~ 32VDC	48 V ~ 280 V	10 A	-	Screw Terminal
