Relè allo stato solido
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Package/Case | Packaging | Series | ProductStatus | MountingType | Circuit | OutputType | Voltage-Input | Voltage-Load | LoadCurrent | On-StateResistance(Max) | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP4222G-2(F)SSR RELAY SPST-NC 100MA 0-350V Toshiba Semiconductor and Storage |
3,051 | - |
RFQ |
Scheda tecnica |
8-DIP (0.300, 7.62mm) | Tube | TLP4222G-2 | Obsolete | Through Hole | SPST-NC (1 Form B) x 2 | AC, DC | 1.15VDC | 0 V ~ 350 V | 100 mA | 50 Ohms | PC Pin |
.JPG)
|

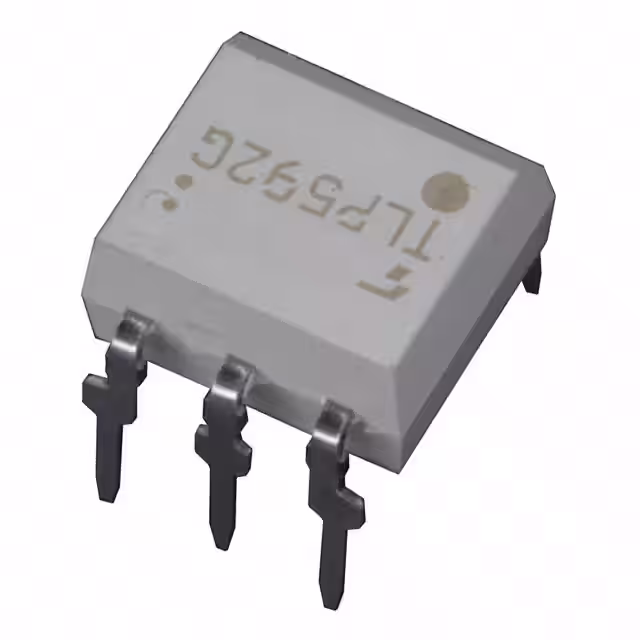

TLP592G(F)SSR RELAY SPST-NO 110MA 0-350V Toshiba Semiconductor and Storage |
2,633 | - |
RFQ |
Scheda tecnica |
6-DIP (0.300, 7.62mm) | Tube | TLP592G | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 110 mA | 50 Ohms | PC Pin |
.JPG)
|

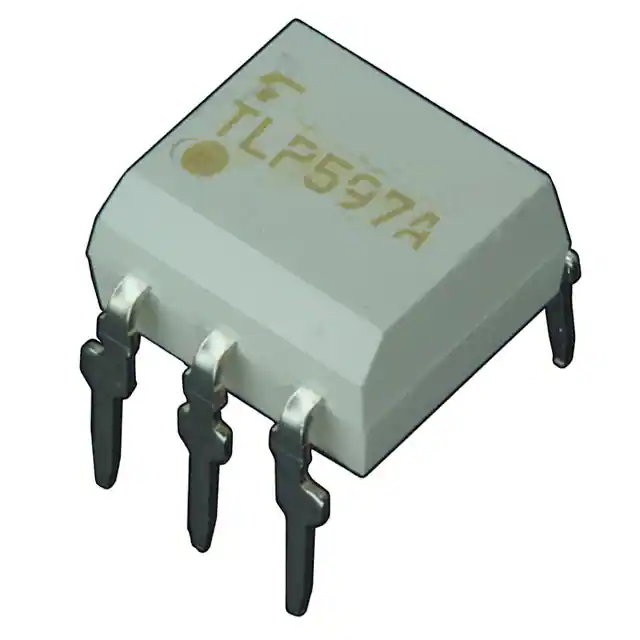

TLP597A(F)SSR RELAY SPST-NO 500MA 0-60V Toshiba Semiconductor and Storage |
2,014 | - |
RFQ |
Scheda tecnica |
6-DIP (0.300, 7.62mm) | Tube | TLP597A | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | PC Pin |
.JPG)
|

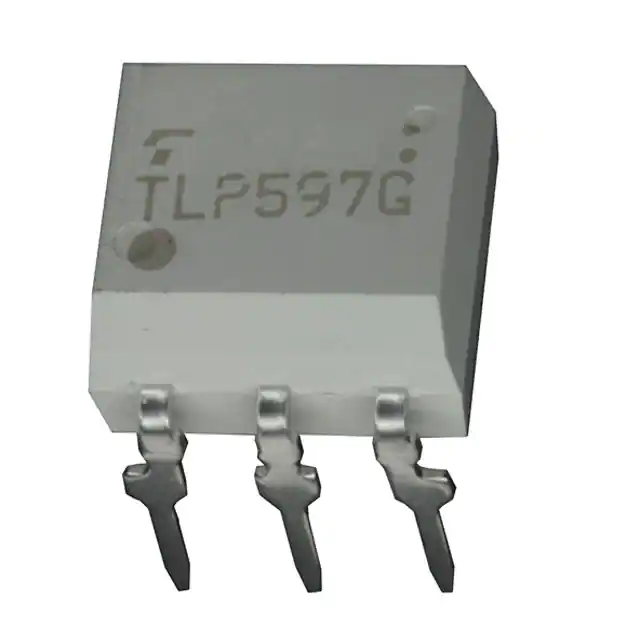

TLP597G(F)SSR RELAY SPST-NO 120MA 0-350V Toshiba Semiconductor and Storage |
2,168 | - |
RFQ |
Scheda tecnica |
6-DIP (0.300, 7.62mm) | Tube | TLP597G | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | PC Pin |
|
TLP222G(F)SSR RELAY SPST-NO 120MA 0-350V Toshiba Semiconductor and Storage |
2,464 | - |
RFQ |
Scheda tecnica |
4-DIP (0.300, 7.62mm) | Tube | TLP222G | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 50 Ohms | PC Pin |
|
TLP227G-2(TP1,N,F)SSR RELAY SPST-NO 120MA 0-350V Toshiba Semiconductor and Storage |
2,967 | - |
RFQ |
Scheda tecnica |
8-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP227G-2 | Obsolete | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | Gull Wing |
|
|
TLP227G(N,F)SSR RELAY SPST-NO 120MA 0-350V Toshiba Semiconductor and Storage |
3,446 | - |
RFQ |
Scheda tecnica |
4-DIP (0.300, 7.62mm) | Tube | TLP227G | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 35 Ohms | PC Pin |
|
TLP3120(F)SSR RELAY SPST-NO 1.25A 0-80V Toshiba Semiconductor and Storage |
2,328 | - |
RFQ |
Scheda tecnica |
6-SMD, Gull Wing | Tube | TLP3120 | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 80 V | 1.25 A | 150 mOhms | Gull Wing |
|
TLP172G(F)SSR RELAY SPST-NO 110MA 0-350V Toshiba Semiconductor and Storage |
2,423 | - |
RFQ |
Scheda tecnica |
4-SMD, Gull Wing | Tube | TLP172G | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 110 mA | 35 Ohms | Gull Wing |
|
TLP176GA(F)SSR RELAY SPST-NO 120MA 0-400V Toshiba Semiconductor and Storage |
3,692 | - |
RFQ |
Scheda tecnica |
4-SMD, Gull Wing | Tube | TLP176GA | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | Gull Wing |
|
|
TLP197D(F)SSR RELAY SPST-NO 200MA 0-200V Toshiba Semiconductor and Storage |
3,954 | - |
RFQ |
Scheda tecnica |
6-SMD, Gull Wing | Tube | TLP197D | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 200 V | 200 mA | 8 Ohms | Gull Wing |
|
|
TLP222A-2(F)SSR RELAY SPST-NO 500MA 0-60V Toshiba Semiconductor and Storage |
2,696 | - |
RFQ |
Scheda tecnica |
8-DIP (0.300, 7.62mm) | Tube | TLP222A-2 | Obsolete | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.15VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | PC Pin |
|
|
TLP222G-2(F)SSR RELAY SPST-NO 120MA 0-350V Toshiba Semiconductor and Storage |
3,618 | - |
RFQ |
Scheda tecnica |
8-DIP (0.300, 7.62mm) | Tube | TLP222G-2 | Obsolete | Through Hole | SPST-NO (1 Form A) x 2 | AC, DC | 1.15VDC | 0 V ~ 350 V | 120 mA | 50 Ohms | PC Pin |
|
|
TLP227A(F)SSR RELAY SPST-NO 500MA 0-60V Toshiba Semiconductor and Storage |
2,001 | - |
RFQ |
Scheda tecnica |
4-DIP (0.300, 7.62mm) | Tube | TLP227A | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 60 V | 500 mA | 2 Ohms | PC Pin |
|
TLP172A(TP,F)SSR RELAY SPST-NO 400MA 0-60V Toshiba Semiconductor and Storage |
3,149 | - |
RFQ |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP172A | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 60 V | 400 mA | 2 Ohms | Gull Wing | |
|
|
TLP172G(TP,F)SSR RELAY SPST-NO 110MA 0-350V Toshiba Semiconductor and Storage |
3,745 | - |
RFQ |
Scheda tecnica |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP172G | Obsolete | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 350 V | 110 mA | 35 Ohms | Gull Wing |
|
TLP3114(TP,F)SSR RELAY SPST-NO 250MA 0-40V Toshiba Semiconductor and Storage |
3,276 | - |
RFQ |
Scheda tecnica |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP3114 | Last Time Buy | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 250 mA | 3 Ohms | Gull Wing |
|
TLP3116(TP,F)SSR RELAY SPST-NO 120MA 0-40V Toshiba Semiconductor and Storage |
3,145 | - |
RFQ |
Scheda tecnica |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP3116 | Last Time Buy | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 40 V | 120 mA | 15 Ohms | Gull Wing |
|
|
TLP3122(TP,F)SSR RELAY SPST-NO 1A 0-60V Toshiba Semiconductor and Storage |
3,898 | - |
RFQ |
Scheda tecnica |
4-SOP (0.173, 4.40mm) | Tape & Reel (TR) | TLP3122 | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 60 V | 1 A | 250 mOhms | Gull Wing |
.JPG)
|

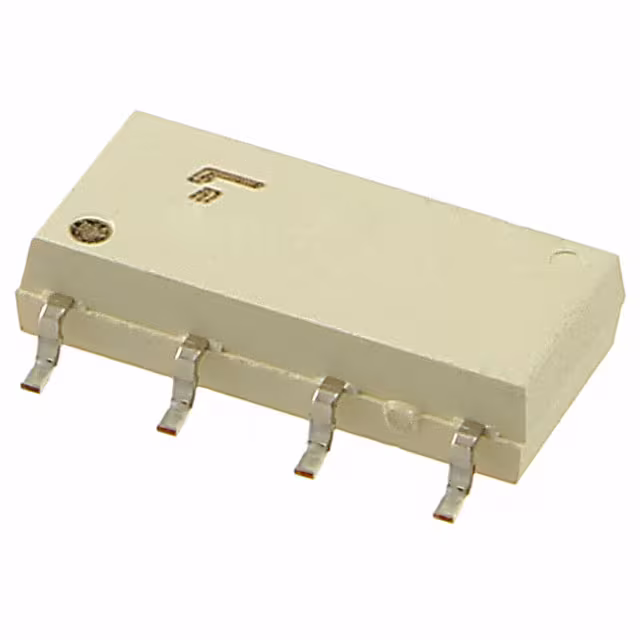

TLP3125(TP,F)SSR RELAY SPST-NO 200MA 0-400V Toshiba Semiconductor and Storage |
2,053 | - |
RFQ |
8-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | TLP3125 | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 400 V | 200 mA | 4 Ohms | Gull Wing |
