Motori passo-passo
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM25S-024-HHF8STEPPER MOTOR PM TAPPED M2.6 NMB Technologies Corporation |
2,343 | - |
RFQ |
Scheda tecnica |
Bag | PM | Active | Permanent Magnet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PG15S-J20-HHF3STEP MOTOR PM GEARED BIPOLAR 5V NMB Technologies Corporation |
3,375 | - |
RFQ |
Scheda tecnica |
Tray | PG | Active | Permanent Magnet Gear Motor | Bipolar | 5VDC | - | 1000 | 0.36° | - | - | Round - 0.591 Dia (15.00mm) | - | 0.118 (3.00mm) | 0.354 (9.00mm) | 0.787 (20.00mm) | Wire Leads | 0°C ~ 50°C | 10 Ohms |
|

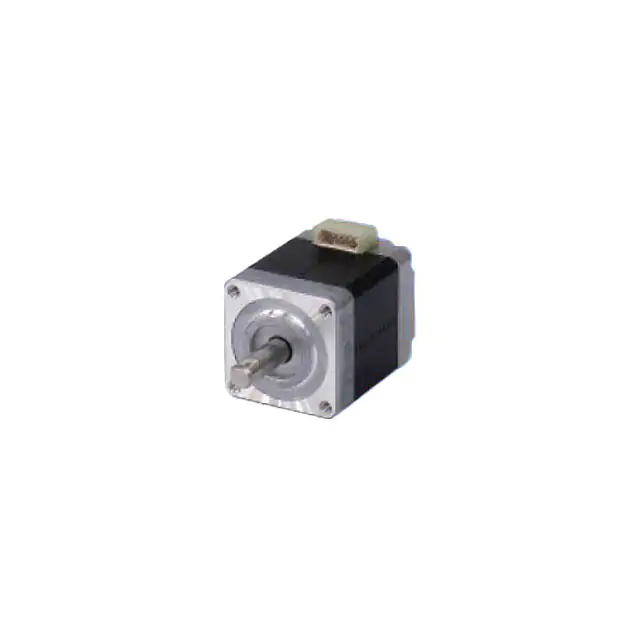

10PM-K405BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
3,845 | - |
RFQ |
Scheda tecnica |
Box | 10PM | Active | Hybrid | Bipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 17 / 120 | Square - 0.984 x 0.984 (25.00mm x 25.00mm) | 10 | 0.197 (5.00mm) | 0.394 (10.00mm) | 0.787 (20.00mm) | Connector | - | 1.6 Ohms |
|
|
17PM-K249BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
3,099 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | - | 19.83 / 140 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 5.4 Ohms |
|
|
17PM-K249USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,963 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 800 mA | 200 | 1.8° | - | 14.16 / 100 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 2.7 Ohms |
|
|
17PM-K264USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,515 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200 | 1.8° | - | 14.16 / 100 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 6.9 Ohms |
|
|
17PM-K749BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,688 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | - | 9.2 / 64.97 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 4.4 Ohms |
|
|
17PM-K749USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,892 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 900 mA | 200 | 1.8° | - | 7.08 / 50 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 2.2 Ohms |
|
|
17PM-K764USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,399 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200 | 1.8° | - | 7.08 / 50 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 5.6 Ohms |
|
|
17PM-K049BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
3,532 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 700 mA | 200 | 1.8° | - | 38.24 / 270 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 6.4 Ohms |
|
|
17PM-K049USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,366 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 1 A | 200 | 1.8° | - | 7.08 / 50 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 3.2 Ohms |
|
|
17PM-K064USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,233 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 600 mA | 200 | 1.8° | - | 7.08 / 50 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 8.3 Ohms |
|
|
17PM-K342BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
3,067 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 900 mA | 200 | 1.8° | - | 43.9 / 310 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 4 Ohms |
|
|
17PM-K342USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,635 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 35.41 / 250 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 2 Ohms |
|
|
17PM-K349USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,975 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 1 A | 200 | 1.8° | - | 35.41 / 250 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 3.6 Ohms |
|

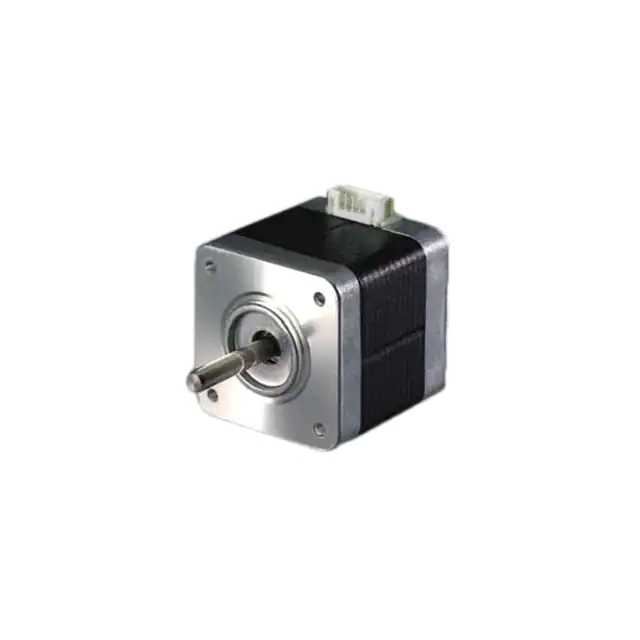

23KM-K249USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,972 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 2 A | 200 | 1.8° | - | 59.48 / 420 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.813 (20.64mm) | 1.856 (47.14mm) | Connector | - | 1.2 Ohms |
|
|
23KM-K255-UPVSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,935 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid | Unipolar | 24VDC | 1.5 A | 200 | 1.8° | - | 59.48 / 420 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.813 (20.64mm) | 1.856 (47.14mm) | Connector | - | 2.3 Ohms |
|
|
17PM-K142BSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
3,758 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 53.82 / 380 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 4.6 Ohms |
|
|
17PM-K142USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
2,986 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 39.66 / 280 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 2.3 Ohms |
|
|
17PM-K149USTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,655 | - |
RFQ |
Scheda tecnica |
Bulk | 17PM | Active | Hybrid | Unipolar | 24VDC | 1 A | 200 | 1.8° | - | 39.66 / 280 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | - | 4.3 Ohms |
