Motori passo-passo
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WO-5718X-01SSTEPPER MOTOR Lin Engineering |
2,307 | - |
RFQ |
Scheda tecnica |
Tray | 5718 | Active | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.795 (20.20mm) | 1.860 (47.24mm) | Wire Leads | - | 2.8 Ohms |
|

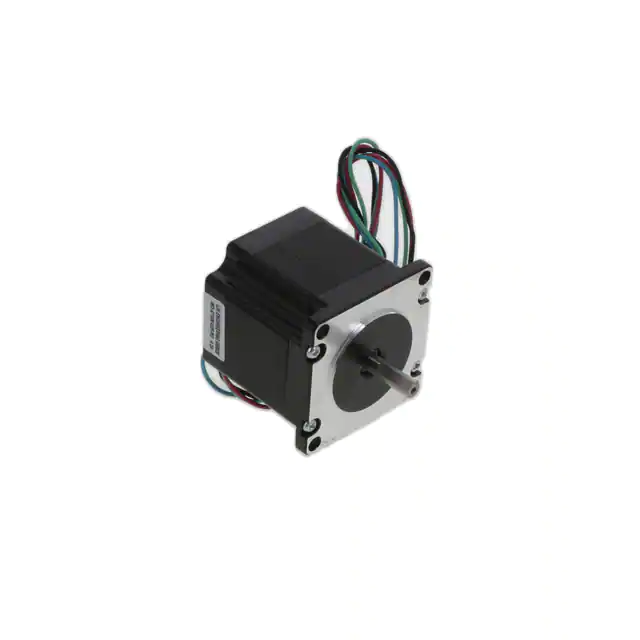

WO-5718M-02P-ROSTEPPER MOTOR Lin Engineering |
2,917 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | - | Bipolar | 24VDC | 4.2 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.5 Ohms |
|

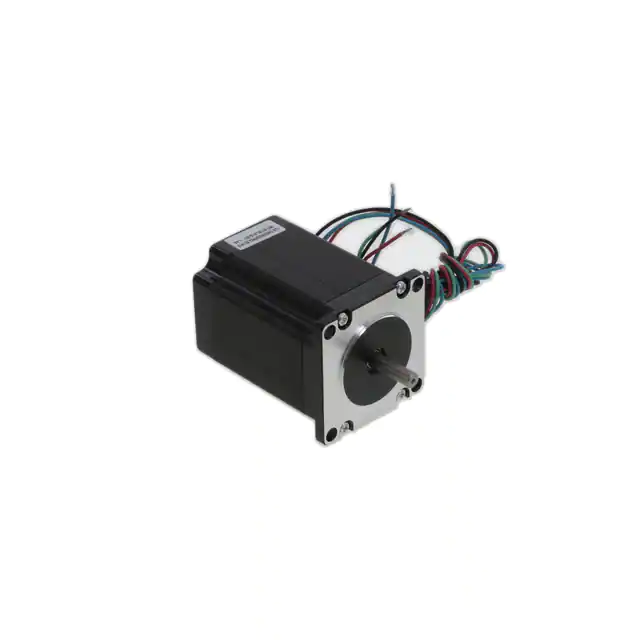

WO-5718L-01S-ROSTEPPER MOTOR Lin Engineering |
2,234 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 294 / 2076 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms |
|
PM20S-180-033PERMANENT MAGNET STEPPER MOTOR Lin Engineering |
2,394 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 12VDC | 0.33 A | 20 | 18° | - | 1.18 / 8.34 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 10.3 Ohms |
|
|
PM25S-075-032PERMANENT MAGNET STEPPER MOTOR Lin Engineering |
2,840 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 12VDC | 0.32 A | 48 | 7.5° | - | 2.2 / 15.7 | Round - 0.492 Dia (12.50mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 16 Ohms |
|
|
PM42S-075-015PERMANENT MAGNET STEPPER MOTOR Lin Engineering |
2,002 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 0.15 A | 48 | 7.5° | - | 8.89 / 62.77 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.949 (49.50mm) | Wire Leads with Connector | -20°C ~ 50°C | 80 Ohms |
|
WO-3709V-18STEPPER MOTOR Lin Engineering |
3,597 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 16 / 113 | Square - 1.440 L x 1.440 W (36.58mm x 36.58mm) | 14 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
WO-4209S-01PSTEPPER MOTOR Lin Engineering |
3,582 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 1.33 A | 400 | 0.9° | - | 31 / 219 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 2.4 Ohms |
|
WO-4109Y-51STEPPER MOTOR Lin Engineering |
3,436 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 6 / 42.37 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms |
|
|
WO-4109Z-51STEPPER MOTOR Lin Engineering |
2,459 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 500 mA | 400 | 0.9° | - | 3 / 21.19 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 4.1 Ohms |
|
WO-417-09-03STEPPER MOTOR Lin Engineering |
2,669 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 1.2 A | 400 | 0.9° | - | 12 / 84.74 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms |
|

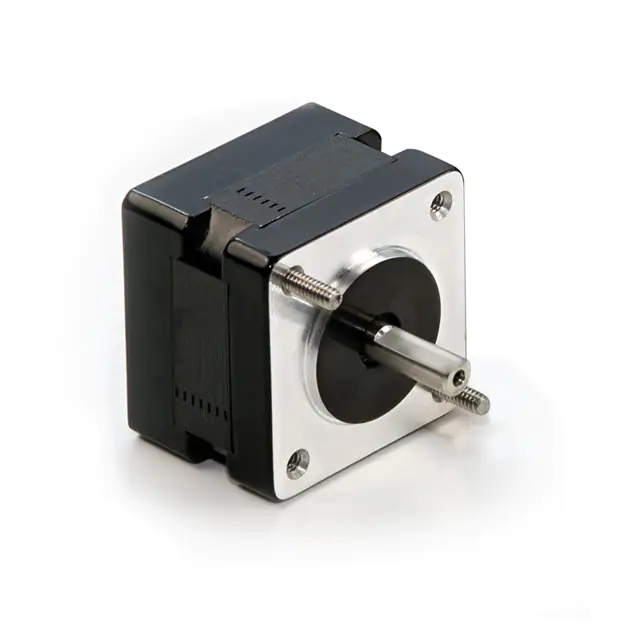

WO-3518X-08STEPPER MOTOR Lin Engineering |
3,731 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 350 mA | 200 | 1.8° | - | 7.5 / 52.96 | Square - 1.390 x 1.390 (35.30mm x 35.30mm) | 14 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.023 (26.00mm) | Wire Leads | -20°C ~ 50°C | 8.5 Ohms |
|

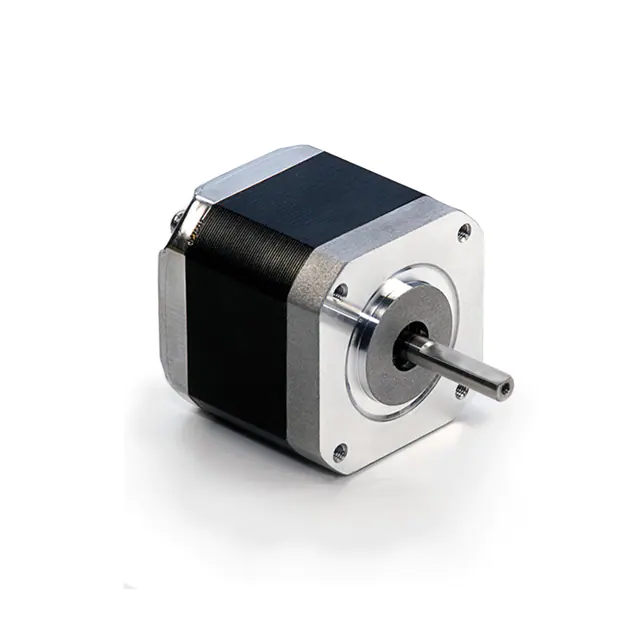

WO-4418F-01STEPPER MOTOR Lin Engineering |
3,760 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 670 mA | 200 | 1.8° | - | 27 / 190.7 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 7.6 Ohms |
|
|
WO-4109R-05STEPPER MOTOR Lin Engineering |
3,036 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 800 mA | 400 | 0.9° | - | 22 / 155.4 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 6.5 Ohms |
|
WO-4418S-01STEPPER MOTOR Lin Engineering |
3,927 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 1.7 A | 200 | 1.8° | - | 61 / 431 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.6 Ohms |
|
WO-211-20-02-ROSTEPPER MOTOR Lin Engineering |
3,032 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 24VDC | 1.3 A | 200 | 1.8° | - | 16.6 / 117.22 | Square - 1.110 x 1.110 (28.20mm x 28.20mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads | -20°C ~ 50°C | 1.9 Ohms |
|

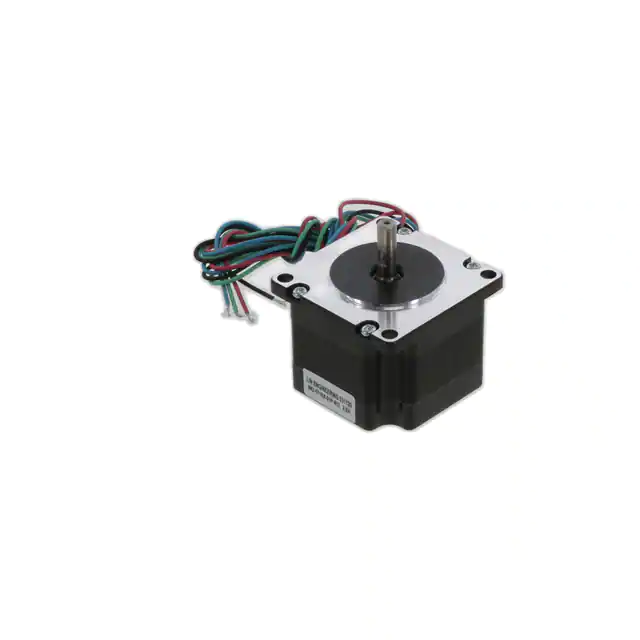

WO-5718X-01P-ROSTEPPER MOTOR Lin Engineering |
3,161 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | - | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.7 Ohms |
|
WO-5718M-02S-ROSTEPPER MOTOR Lin Engineering |
3,024 | - |
RFQ |
Scheda tecnica |
Bulk | - | Active | - | Bipolar | 24VDC | 2.1 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms |
|
|
PM20S-180-021PERMANENT MAGNET STEPPER MOTOR Lin Engineering |
3,893 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 12VDC | 0.21 A | 20 | 18° | - | 1.18 / 8.34 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 25 Ohms |
|
|
PM20L-180-043PERMANENT MAGNET STEPPER MOTOR Lin Engineering |
3,848 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | Bipolar | 12VDC | 0.43 A | 20 | 18° | - | 1.7 / 11.8 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 7 Ohms |
