Motori passo-passo
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
82924055STEPPER MOTOR PM GEARED UNI 6.3V Crouzet |
2,148 | - |
RFQ |
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|
|
82924059STEPPER MOTOR PM GEARED UNI 6.3V Crouzet |
3,055 | - |
RFQ |
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 280 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 46 Ohms | |
|
|
82924062STEPPER MOTOR PM GEARED UNI 6.3V Crouzet |
2,831 | - |
RFQ |
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 280 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 46 Ohms | |
|
|
82924074STEPPER MOTOR PM GEARED UNI 6.3V Crouzet |
2,990 | - |
RFQ |
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|
|
82924027STEPPER MOTOR PM GEARED UNI 6.3V Crouzet |
2,457 | - |
RFQ |
Bulk | 82924 | Active | Permanent Magnet Gear Motor | Unipolar | 6.3VDC | 590 mA | 48 | 7.5° | ±5% | 9.91 / 70 | Round - 2.020 Dia (51.30mm) | 21 | 0.157 (4.00mm) | 0.520 (13.20mm) | 1.874 (47.60mm) | Wire Leads | -30°C ~ 70°C | 10.7 Ohms | |
|

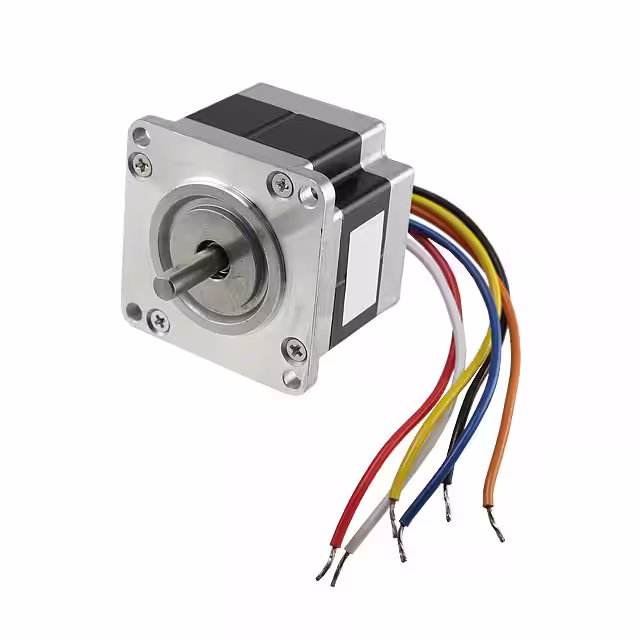

23KM-K244-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,314 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.9 A | 200 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.6 Ohms |
|

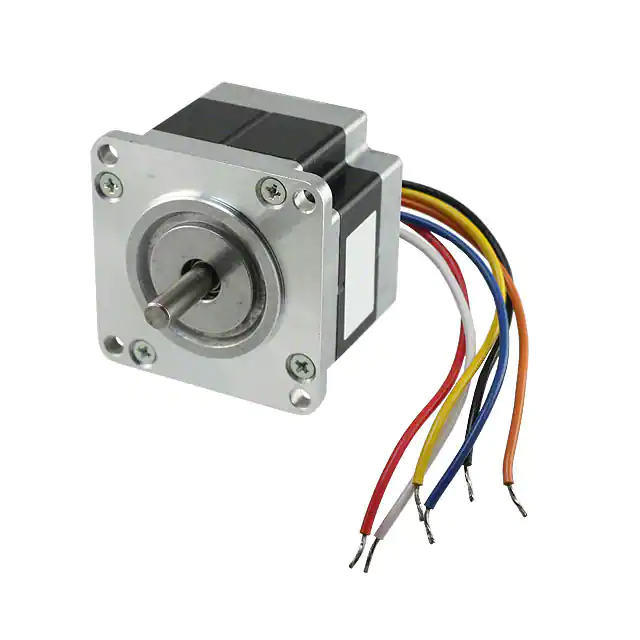

23KM-K267-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,423 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 900 mA | 200 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms |
|
23KM-K044-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,201 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 0.85 Ohms |
|
08PM-K049BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,060 | - |
RFQ |
Scheda tecnica |
Bulk | 08PM | Active | Hybrid | Bipolar | 24VDC | 500 mA | 200 | 1.8° | - | 2.83 / 20 | Square - 0.787 x 0.787 (20.00mm x 20.00mm) | 8 | 0.157 (4.00mm) | 0.394 (10.00mm) | 0.630 (16.00mm) | Wire Leads with Connector | - | 8 Ohms |
|
|

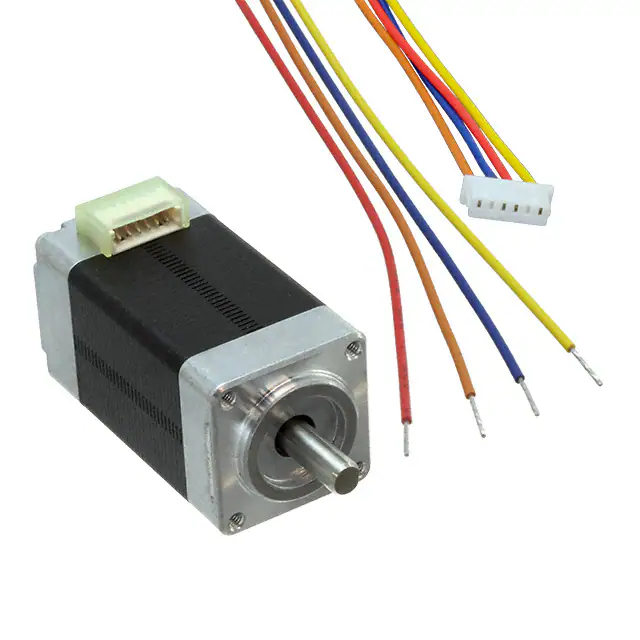

08PM-K139BSTDCNSTEPPER MOTOR HYBRID BIPOLAR 24V NMB Technologies Corporation |
2,699 | - |
RFQ |
Scheda tecnica |
Bulk | 08PM | Active | Hybrid | Bipolar | 24VDC | 600 mA | 200 | 1.8° | - | 5.1 / 36 | Square - 0.787 x 0.787 (20.00mm x 20.00mm) | 8 | 0.157 (4.00mm) | 0.394 (10.00mm) | 0.630 (16.00mm) | Wire Leads with Connector | - | 6.5 Ohms |
|
|
82929001MOTOR 829200 - 7 5 48STEP/T GEAR Crouzet |
3,315 | - |
RFQ |
Bulk | 82929 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
29SM-K250-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,479 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.6 A | 200 | 1.8° | ±5% | 82.15 / 580 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2 Ohms |
|

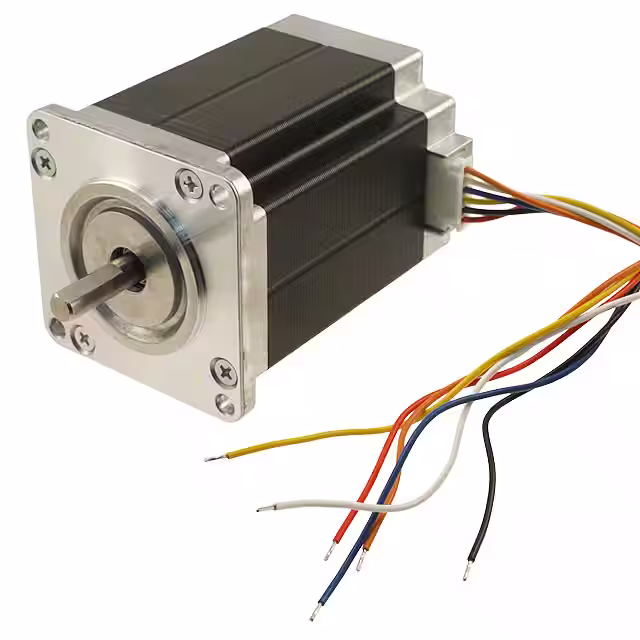

23KM-K748-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,450 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms |
|

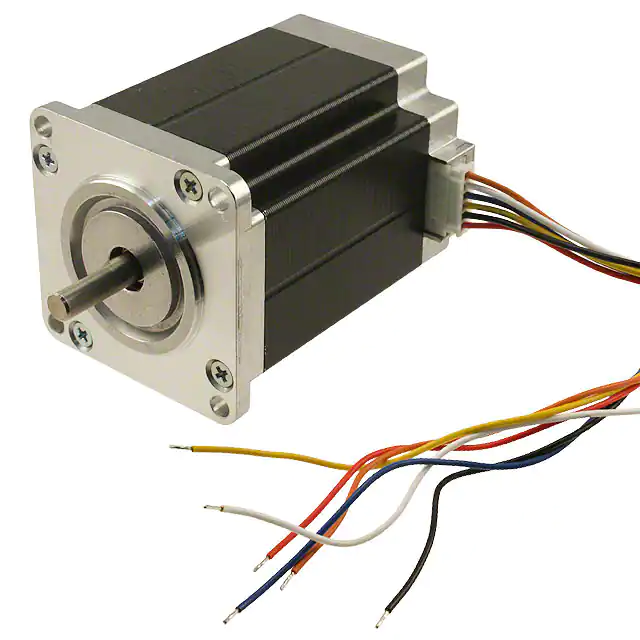

23KM-K743-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,811 | - |
RFQ |
Scheda tecnica |
Bulk | 23KM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.1 Ohms |
|
29SM-K379-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,704 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 116.14 / 820 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.75 Ohms |
|

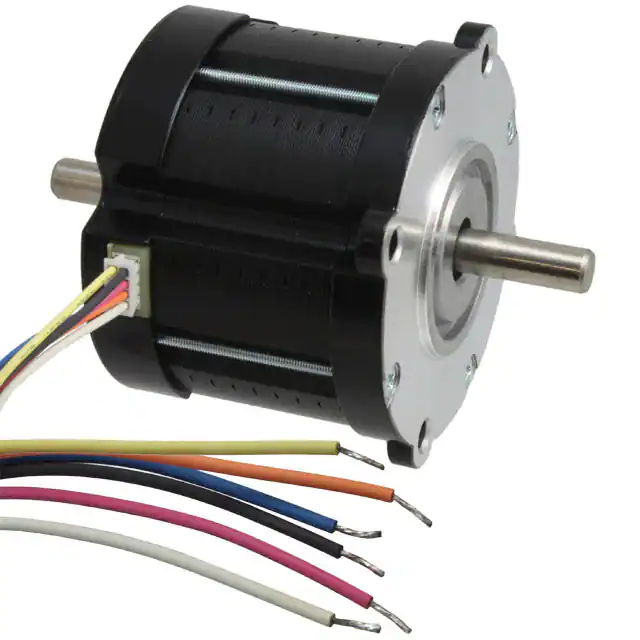

29SM-K035-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,088 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.2 A | 200 | 1.8° | ±5% | 127.47 / 900 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms |
|

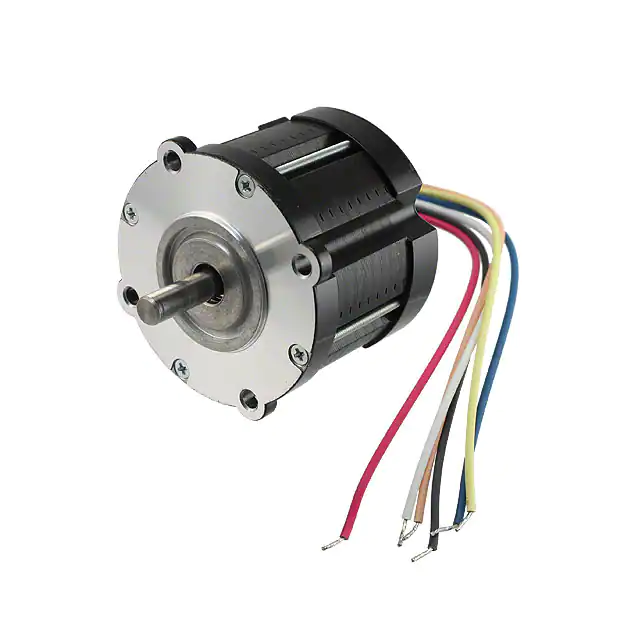

29SM-K035-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,073 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 2.2 A | 200 | 1.8° | ±5% | 127.47 / 900 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.55 Ohms |
|
29SM-K138-00VSTEP MOTOR HYBRID UNIPOLAR 24V NMB Technologies Corporation |
3,329 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 2.6 A | 200 | 1.8° | ±5% | 169.96 / 1200 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms |
|
29SM-K138-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
3,380 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 2.6 A | 200 | 1.8° | ±5% | 169.96 / 1200 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms |
|

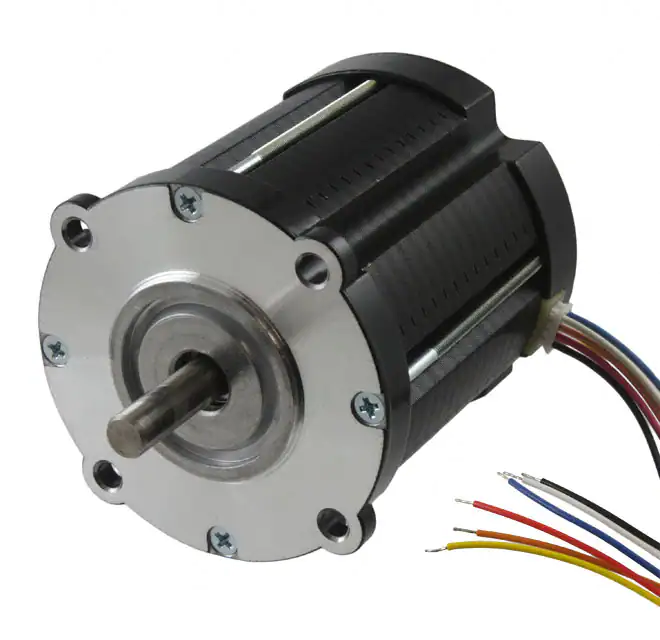

29SM-K711-99VSTEP MOTOR HYBRID DUAL SHAFT 24V NMB Technologies Corporation |
2,914 | - |
RFQ |
Scheda tecnica |
Bulk | 29SM | Active | Hybrid, Dual Shaft | Unipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 205.36 / 1450 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms |
