Convertitore di commutazione, trasformatori SMPS
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Applications | IntendedChipset | ChipsetManufacturer | Voltage-Primary | Voltage-Auxiliary | Voltage-Isolation | Inductance@Frequency | Frequency | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Footprint |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3855.004NLTTRANSFORMER FLYBACK 21UH SMD Pulse Electronics Power |
767 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA3856.002NLTTRANSFORMER FORWARD 100UH SMD Pulse Electronics Power |
3,932 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA3856.005NLTTRANSFORMER FORWARD 128UH SMD Pulse Electronics Power |
700 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
|
PA3856.003NLTTRANSFORMER FORWARD 100UH SMD Pulse Electronics Power |
649 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13Plus | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | Surface Mount | 0.571 L x 0.526 W (14.50mm x 13.36mm) | 0.551 (14.00mm) | 0.571 L x 0.695 W (14.50mm x 17.65mm) |
|
750316770PUSH-PULL TRANSFORMER TOR4.3/2.8 Würth Elektronik |
2,361 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 350µH @ 100kHz | 400kHz | -40°C ~ 125°C | Surface Mount | 0.281 L x 0.265 W (7.14mm x 6.73mm) | 0.165 (4.19mm) | 0.412 L x 0.265 W (10.46mm x 6.73mm) |
|

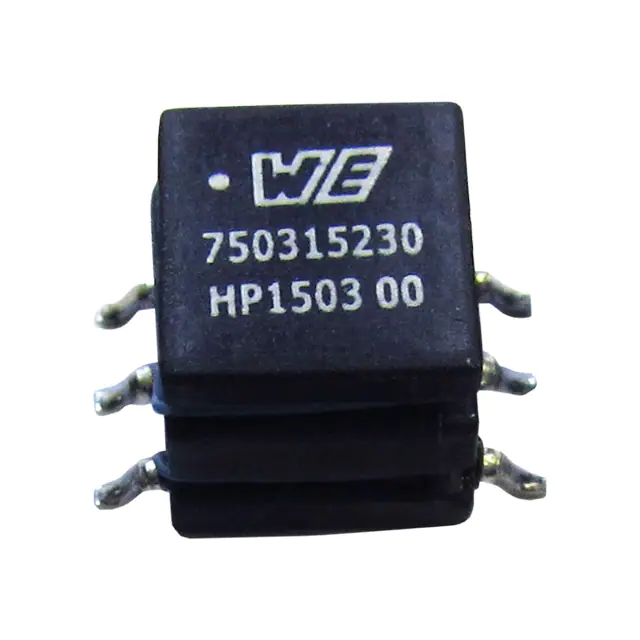

750315230PUSH-PULL TRANSFORMER Würth Elektronik |
2,008 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | Surface Mount | 0.360 L x 0.315 W (9.14mm x 8.00mm) | 0.300 (7.62mm) | - |
|

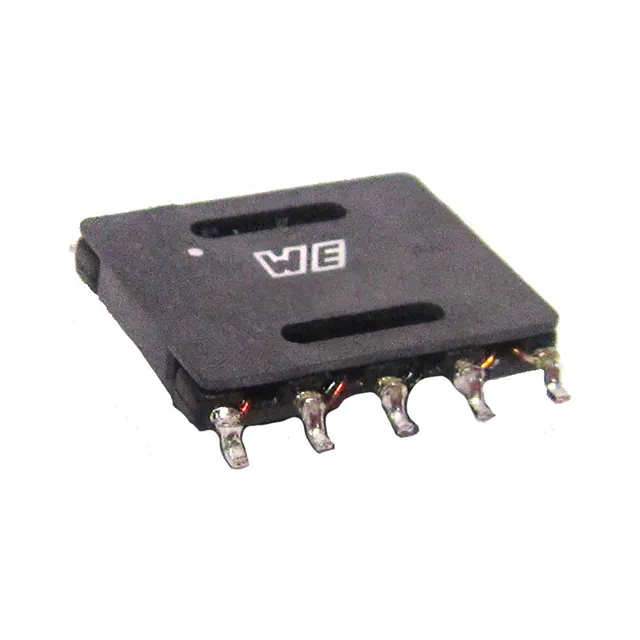

750316668PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
2,958 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | Surface Mount | 0.458 L x 0.364 W (11.63mm x 9.25mm) | 0.157 (3.99mm) | 0.458 L x 0.496 W (11.63mm x 12.60mm) |
|

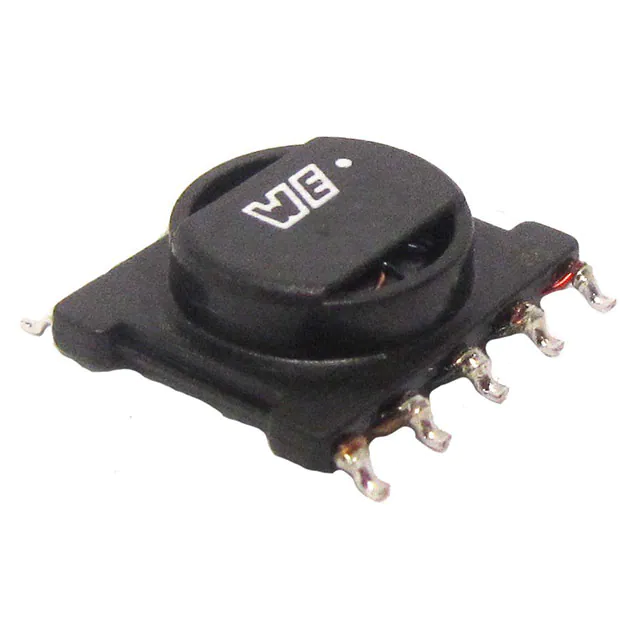

750316017PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
950 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | Surface Mount | 0.458 L x 0.364 W (11.63mm x 9.25mm) | 0.145 (3.68mm) | 0.458 L x 0.496 W (11.63mm x 12.60mm) |
|

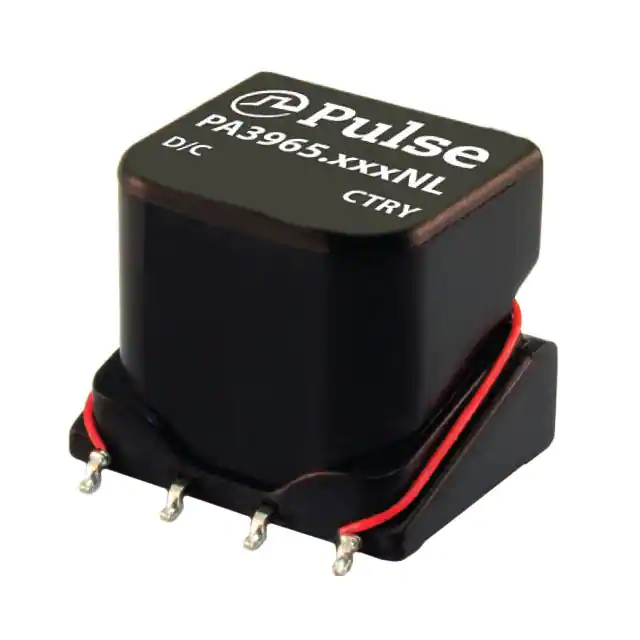

PA3965.002NLXFRMR FLYBACK7W Pulse Electronics Power |
2,765 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | 0.657 L x 0.500 W (16.70mm x 12.70mm) | 0.557 (14.15mm) | 0.657 L x 0.650 W (16.70mm x 16.50mm) |
|
|
750316887PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
2,953 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.327 W (11.43mm x 8.30mm) | 0.165 (4.20mm) | 0.581 L x 0.327 W (14.75mm x 8.30mm) |
|
|
750316888PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
2,469 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.327 W (11.43mm x 8.30mm) | 0.165 (4.20mm) | 0.581 L x 0.327 W (14.75mm x 8.30mm) |
|
|
750316854PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
3,486 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.327 W (11.43mm x 8.30mm) | 0.165 (4.20mm) | 0.581 L x 0.327 W (14.75mm x 8.30mm) |
|
|
750316886PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik |
2,023 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | MID-PPTI | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | Surface Mount | 0.450 L x 0.327 W (11.43mm x 8.30mm) | 0.165 (4.20mm) | 0.581 L x 0.327 W (14.75mm x 8.30mm) |
|
PA5000.001NLTTRANSF FRWD 20W 48V TO 3.3V Pulse Electronics Power |
3,307 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PA5000.XXXNL | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | Surface Mount | 0.531 L x 0.520 W (13.50mm x 13.20mm) | 0.650 (16.50mm) | 0.689 L x 0.531 W (17.50mm x 13.50mm) |
|
CEER117-AX05-15-007FLYBACK TRANSFORMER Sumida America Components Inc. |
510 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV | Broadcom, ROHM | 12V | 5V @ 50mA | 2500Vrms | 7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz | 400kHz | -40°C ~ 125°C | Surface Mount | 0.449 L x 0.390 W (11.40mm x 9.90mm) | 0.331 (8.40mm) | 0.508 L x 0.449 W (12.90mm x 11.40mm) |
|

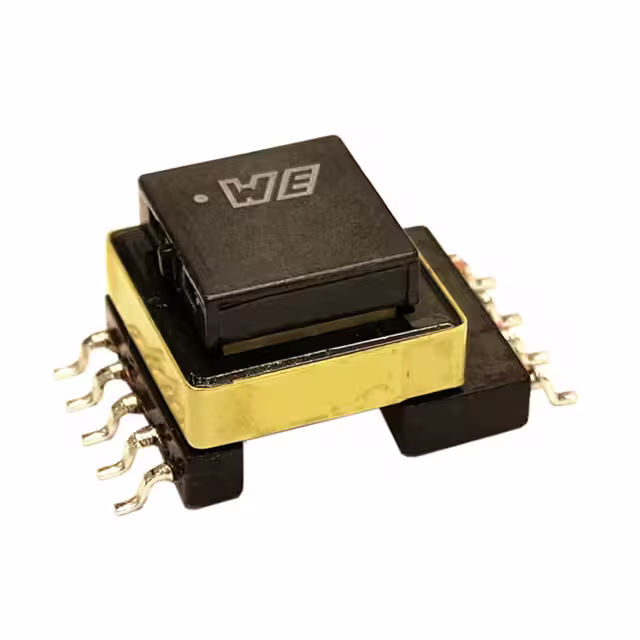

750817014XFRMER FLYBACK AC/DC CONV SMD Würth Elektronik |
990 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WE-UNIT, MID-OLEE | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.84mH @ 10kHz | 50kHz | -40°C ~ 125°C | Surface Mount | - | 0.438 (11.13mm) | 0.543 L x 0.941 W (13.80mm x 23.90mm) |
|
|
7508170311XFRMER FLYBACK AC/DC CONV SMD Würth Elektronik |
997 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WE-UNIT, MID-OLEE | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 491µH @ 10kHz | 150kHz | -40°C ~ 125°C | Surface Mount | - | 0.438 (11.13mm) | 0.543 L x 0.941 W (13.80mm x 23.90mm) |
|
749196511TRANSFORMER 22.3UH 1.7A SMD Würth Elektronik |
401 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FLEX | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 22.3µH @ 10kHz | - | -40°C ~ 125°C | Surface Mount | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.425 (10.80mm) | 0.827 L x 1.169 W (21.00mm x 29.70mm) |
|
|
749196530TRANSFORMER 4.3UH 1.91A SMD Würth Elektronik |
120 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FLEX | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 4.3µH @ 10kHz | - | -40°C ~ 125°C | Surface Mount | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.425 (10.80mm) | 0.827 L x 1.169 W (21.00mm x 29.70mm) |
|
|
749196520TRANSFORMER 5.3UH 1.91A SMD Würth Elektronik |
120 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WE-FLEX | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 5.3µH @ 10kHz | - | -40°C ~ 125°C | Surface Mount | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.425 (10.80mm) | 0.827 L x 1.169 W (21.00mm x 29.70mm) |
