Bobine di ricarica wireless
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IWAS3827ABEB100JF1IWAS-3827AB-F1 10 5% EB E2 Vishay Dale |
2,454 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 10.65µH | ±5% | 178mOhm | 30 @ 200kHz | - | - | - | -40°C ~ 105°C |
|

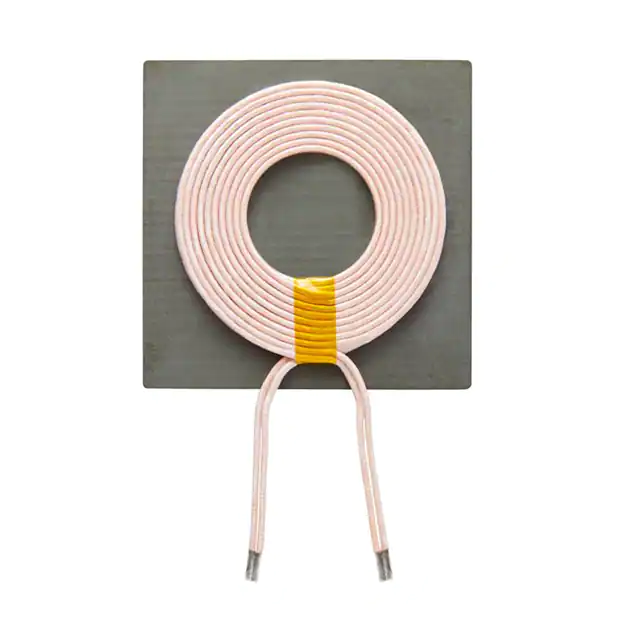

WTSQ-6R3K-A11SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer |
3,353 | - |
RFQ |
Scheda tecnica |
Box | WCC | Active | Transmitter | 2 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 9A | 10A | - | -20°C ~ 85°C |
|
|
AWCCA-RX483205-103WIRELESS CHARGING COIL Abracon LLC |
3,402 | - |
RFQ |
Scheda tecnica |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 14.5µH | ±10% | 140mOhm | 60 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
|
IWTX5050FEEB100KF1WIRELESS CHARGING TRANSMIT COIL Vishay Dale |
2,953 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C |
|
|
IWTX5050DEEB100KF1WIRELESS CHARGING TRANSMIT COIL Vishay Dale |
2,560 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C |
|
|
AWCCA-RX514012-F003WIRELESS CHARGING COIL Abracon LLC |
3,942 | - |
RFQ |
Scheda tecnica |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8.5µH | ±10% | 160mOhm | 25 @ 125kHz | - | - | - | -25°C ~ 85°C |
|
|
AWCCA-RX404012-102WIRELESS CHARGING COIL Abracon LLC |
2,029 | - |
RFQ |
Scheda tecnica |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm | 30 @ 125kHz | - | - | - | -25°C ~ 85°C |
|
|
AWCCA-RX300200-102WIRELESS CHARGING COIL Abracon LLC |
2,319 | - |
RFQ |
Scheda tecnica |
Tray | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
|
IWAS4832ADEB150JF1IWAS-4832AB-F1 11 5% EB E2 Vishay Dale |
3,509 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 15µH | ±5% | 240mOhm | 65 @ 200kHz | - | - | - | -40°C ~ 105°C |
|
|
IWTX47R0DAEB6R3JF1IWTX-47R0DA-F1 6.3 5% EB E2 Vishay Dale |
2,588 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 40mOhm | 190 @ 200kHz | 7A | 22A | - | -40°C ~ 105°C |
|
|
IWAS4832AAEB220JF1IWAS-4832AA-F1 22 5% EB E2 Vishay Dale |
2,413 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 22µH | ±5% | 427mOhm | 38 @ 200kHz | - | - | - | -40°C ~ 105°C |
|
|
IWAS3222CZEB190JF1IWAS-3222CZ-F1 19 5% EB E2 Vishay Dale |
2,299 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 29 @ 200kHz | - | - | - | -40°C ~ 105°C |
|

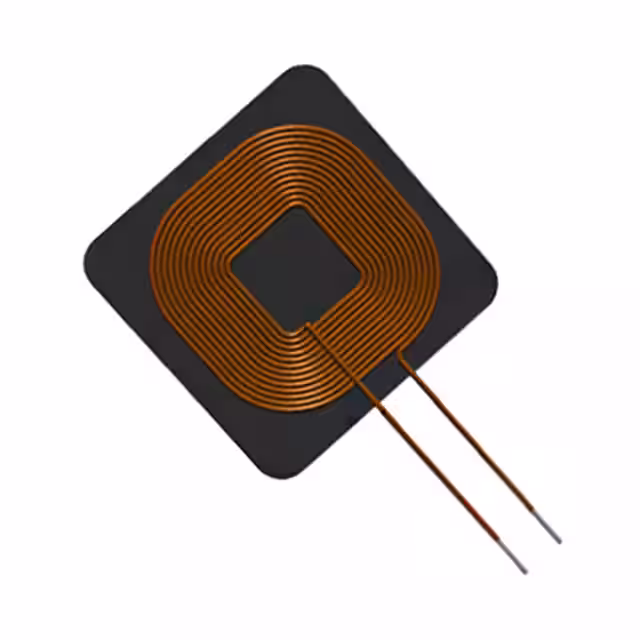

AWCCA-20R20H08-C01-BRECEIVER COIL, 12UH Abracon LLC |
2,255 | - |
RFQ |
Scheda tecnica |
Box | AWCCA | Not For New Designs | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 290mOhm | 20 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

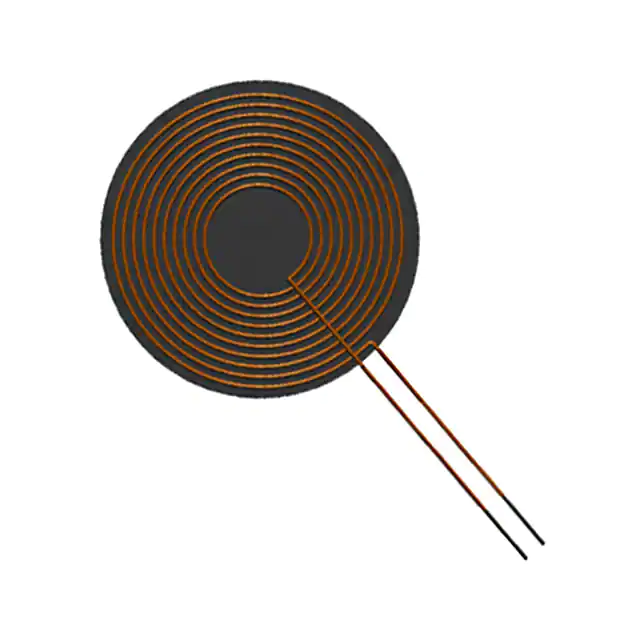

AWCCA-15N15H06-C01-BTX OR RX COIL, 1 COIL, 14.9UH Abracon LLC |
2,381 | - |
RFQ |
Scheda tecnica |
Box | AWCCA | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 14.9µH | ±10% | 1Ohm | 8.5 @ 100kHz | - | - | - | -25°C ~ 85°C |
|
AWCCA-20N20H20-C01-BTX OR RX COIL, 1 COIL 6.3UH Abracon LLC |
3,138 | - |
RFQ |
Scheda tecnica |
Box | AWCCA | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 150mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C |
|

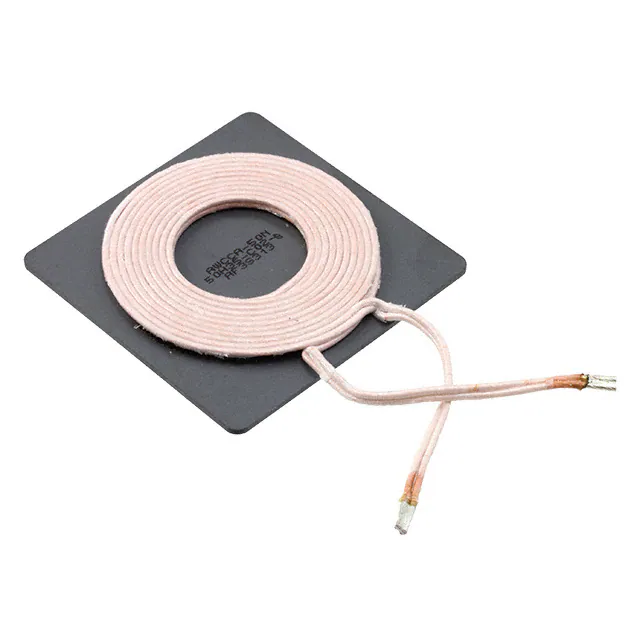

AWCCA-50N50H35-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon LLC |
2,546 | - |
RFQ |
Scheda tecnica |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 10.6A | 36A | 6.4MHz | -25°C ~ 85°C |
|

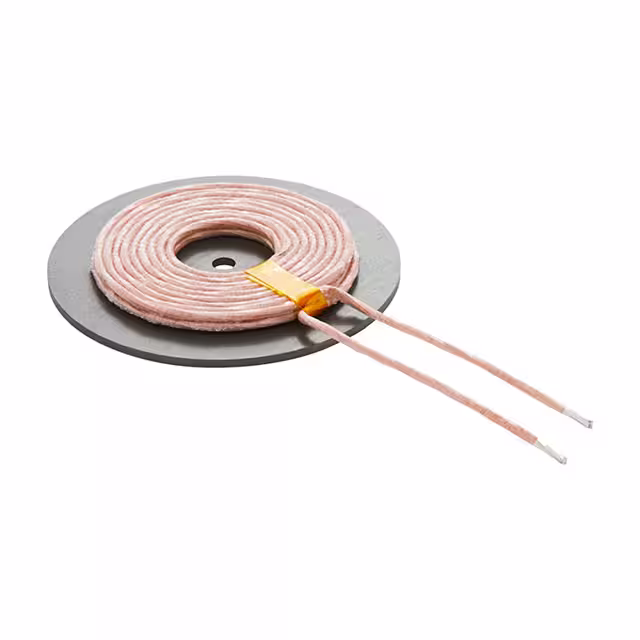

WTSC-10R0K-A3SINGLE-COIL CIRCLE BASE WIRELESS Signal Transformer |
3,317 | - |
RFQ |
Scheda tecnica |
Box | WCC | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 75mOhm Max | - | 4A | 6A | - | -20°C ~ 85°C |
|

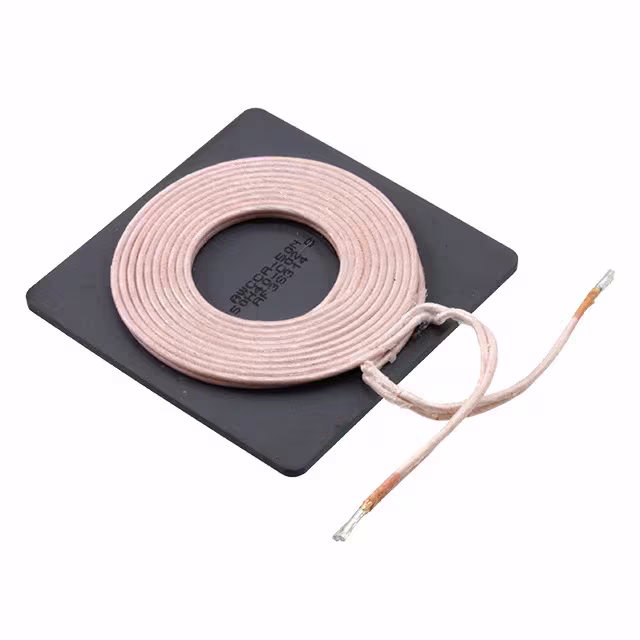

AWCCA-50N50H40-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11.1A Abracon LLC |
2,947 | - |
RFQ |
Scheda tecnica |
Box | AWCCA-50N50 | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 11.1A | 40A | 5.7MHz | -25°C ~ 85°C |
|
|
IWTX9955DEEB110KF3WIRELESS CHARGING TRANSMIT COIL Vishay Dale |
2,786 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH, 11.3µH, 11.3µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 6.5A | - | - | -40°C ~ 125°C |
|
|
AWCCA-TX523517-102WIRELESS CHARGING COIL Abracon LLC |
3,087 | - |
RFQ |
Scheda tecnica |
Tray | AWCCA | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 80mOhm | 60 @ 100kHz | - | - | - | -40°C ~ 120°C |
