AC CC Desktop, Adattatori da parete
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAA20R-480AC/DC WALL MOUNT ADAPTER 48V 20W Phihong USA |
2,980 | - |
RFQ |
Scheda tecnica |
Box | PSAA20R (20W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 420mA | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.82 L x 1.97 W x 1.22 H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
PSAC05R-050(MB)AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
2,793 | - |
RFQ |
Scheda tecnica |
Box | PSAC05R (5W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB Mini | 59 (1.50m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.17 H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs |
|
PSAC05R-050(P)AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,024 | - |
RFQ |
Scheda tecnica |
Box | PSAC05R (5W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.17 H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs |
|

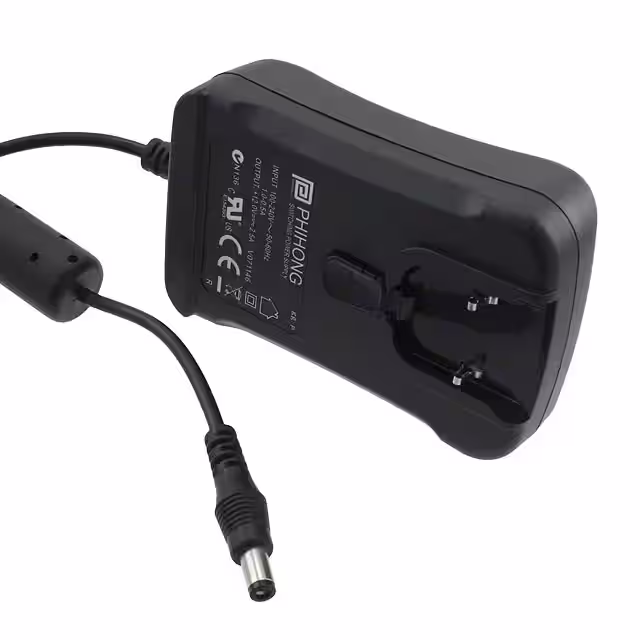

PSAM30R-120AC/DC WALL MOUNT ADAPTER 12V 30W Phihong USA |
2,740 | - |
RFQ |
Box | PSAM30R (30W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9 (1.80m) | Multi-Blade | - | 3.94 L x 2.48 W x 1.41 H (100.0mm x 63.0mm x 35.7mm) | CE, C-Tick, cURus | |
|
|
PSAM30R-240AC/DC WALL MOUNT ADAPTER 24V 30W Phihong USA |
2,628 | - |
RFQ |
Box | PSAM30R (30W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9 (1.80m) | Multi-Blade | - | 3.94 L x 2.48 W x 1.41 H (100.0mm x 63.0mm x 35.7mm) | CE, C-Tick, cURus | |
|
PSC12R-050AC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
2,922 | - |
RFQ |
Scheda tecnica |
Box | PSC12R (12W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|
|
PSC12R-090AC/DC WALL MOUNT ADAPTER 9V 10W Phihong USA |
2,725 | - |
RFQ |
Scheda tecnica |
Box | PSC12R (12W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|
|
PSC12R-120AC/DC WALL MOUNT ADAPTER 12V 12W Phihong USA |
2,858 | - |
RFQ |
Scheda tecnica |
Box | PSC12R (12W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|
PSA05F-050QAC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
2,115 | - |
RFQ |
Scheda tecnica |
Box | PSA05F (5W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 30mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.36 L x 1.85 W x 0.59 H (60.0mm x 47.0mm x 15.0mm) | CE, C-tick, cULus |
|
PSA120U-120AC/DC DESKTOP ADAPTER 12V 120W Phihong USA |
3,909 | - |
RFQ |
Scheda tecnica |
Box | PSA120U (120W) | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 10A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level IV | 0°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 6.85 L x 3.03 W x 1.69 H (174.0mm x 77.0mm x 43.0mm) | cULus |
|
|
PSA120U-240AC/DC DESKTOP ADAPTER 24V 120W Phihong USA |
2,039 | - |
RFQ |
Scheda tecnica |
Box | PSA120U (120W) | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 6.85 L x 3.03 W x 1.69 H (174.0mm x 77.0mm x 43.0mm) | cULus |
|
|
PSA120U-480AC/DC DESKTOP ADAPTER 48V 120W Phihong USA |
2,468 | - |
RFQ |
Scheda tecnica |
Box | PSA120U (120W) | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 6.85 L x 3.03 W x 1.69 H (174.0mm x 77.0mm x 43.0mm) | cULus |
|
|
PSA120U-560AC/DC DESKTOP ADAPTER 56V 120W Phihong USA |
2,223 | - |
RFQ |
Scheda tecnica |
Box | PSA120U (120W) | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 2.14A | 120 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | IEC 320-C14 | - | 6.85 L x 3.03 W x 1.69 H (174.0mm x 77.0mm x 43.0mm) | cULus |
|

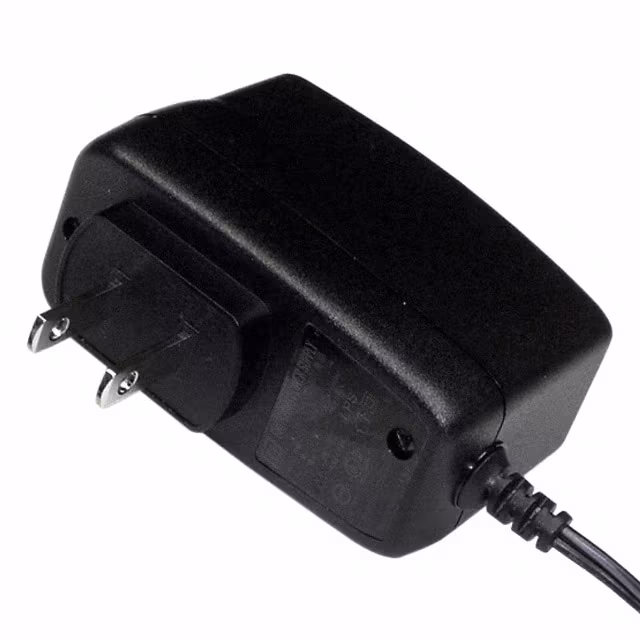

PSA12A-120AC/DC WALL MOUNT ADAPTER 12V 12W Phihong USA |
3,711 | - |
RFQ |
Scheda tecnica |
Box | PSA12 (12W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47.2 (1.20m) | NEMA 1-15P | - | 2.81 L x 1.33 W x 1.81 H (71.5mm x 33.8mm x 46.0mm) | CE, cULus, TUVgs |
|
PSA12E-120AC/DC WALL MOUNT ADAPTER 12V 12W Phihong USA |
3,888 | - |
RFQ |
Scheda tecnica |
Box | PSA12 (12W) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47.2 (1.20m) | CEE 7/16 | - | 2.81 L x 1.33 W x 1.81 H (71.5mm x 33.8mm x 46.0mm) | CE, cULus, TUVgs |
|
PSA15A-050PAC/DC WALL MOUNT ADAPTER 5V 15W Phihong USA |
2,304 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-060PAC/DC WALL MOUNT ADAPTER 6V 15W Phihong USA |
3,857 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2.5A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-075PAC/DC WALL MNT ADAPTER 7.5V 16W Phihong USA |
2,371 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 2.14A | 16 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-090PAC/DC WALL MOUNT ADAPTER 9V 15W Phihong USA |
2,285 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.66A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-120PAC/DC WALL MOUNT ADAPTER 12V 15W Phihong USA |
2,313 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
