AC CC Desktop, Adattatori da parete
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSA15A-150PAC/DC WALL MOUNT ADAPTER 15V 15W Phihong USA |
2,712 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-240PAC/DC WALL MOUNT ADAPTER 24V 15W Phihong USA |
2,618 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 620mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-480PAC/DC WALL MOUNT ADAPTER 48V 15W Phihong USA |
2,953 | - |
RFQ |
Scheda tecnica |
Box | PSA15A (15W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 310mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | NEMA 1-15P | - | 2.81 L x 1.97 W x 1.23 H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
PSA24E-120(P)AC/DC WALL MOUNT ADAPTER 12V 24W Phihong USA |
2,913 | - |
RFQ |
Scheda tecnica |
Box | PSA24E (24W) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59 (1.50m) | CEE 7/16 | - | 3.29 L x 1.38 W x 2.11 H (83.5mm x 35.0mm x 53.5mm) | cULus |
|

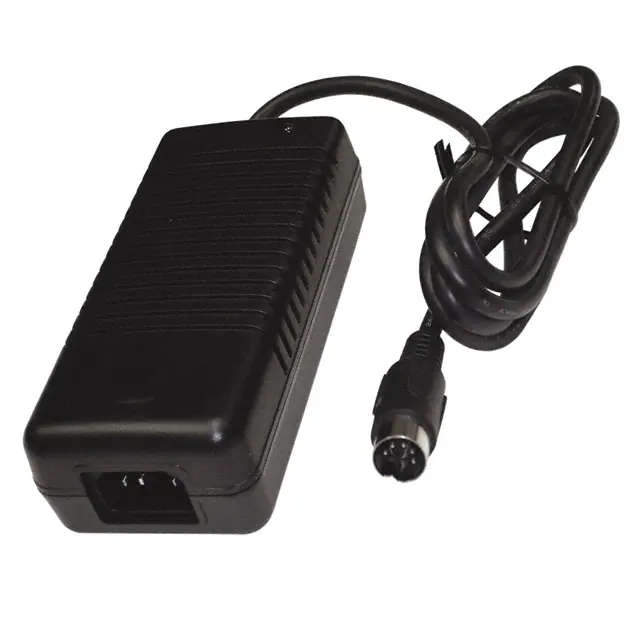

PSA45U-201AC/DC DESKTOP ADAPTER 5V/12V 38W Phihong USA |
3,705 | - |
RFQ |
Scheda tecnica |
Box | PSA45U (38W) | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V | 4A, 1.5A | 38 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 70.9 (1.80m) | IEC 320-C8 | - | 5.51 L x 2.48 W x 1.58 H (140.0mm x 63.0mm x 40.0mm) | CE, cULus, TUVgs |
|

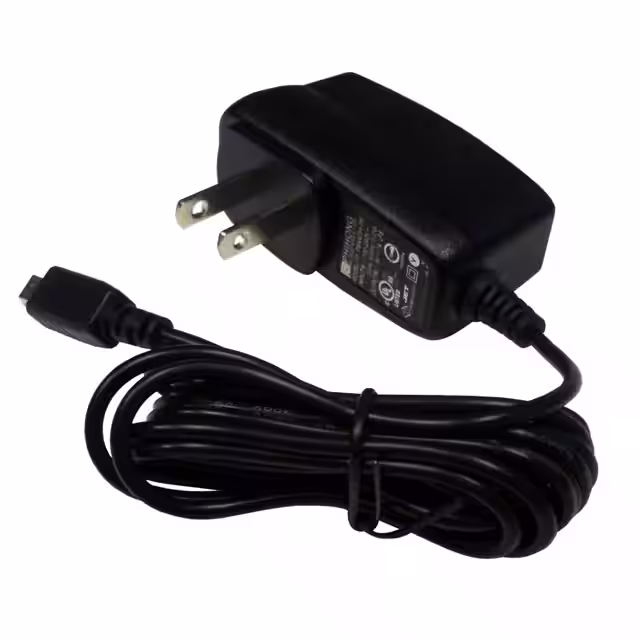

PSAA05A-050AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,786 | - |
RFQ |
Box | PSAA05 (5W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9 (1.80m) | NEMA 1-15P | - | 2.62 L x 1.10 W x 1.54 H (66.5mm x 28.0mm x 39.0mm) | cULus, PSE | |
|
PSAA05E-050AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,816 | - |
RFQ |
Box | PSAA05 (5W) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9 (1.80m) | CEE 7/16 | - | 2.62 L x 1.10 W x 1.54 H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS | |
|

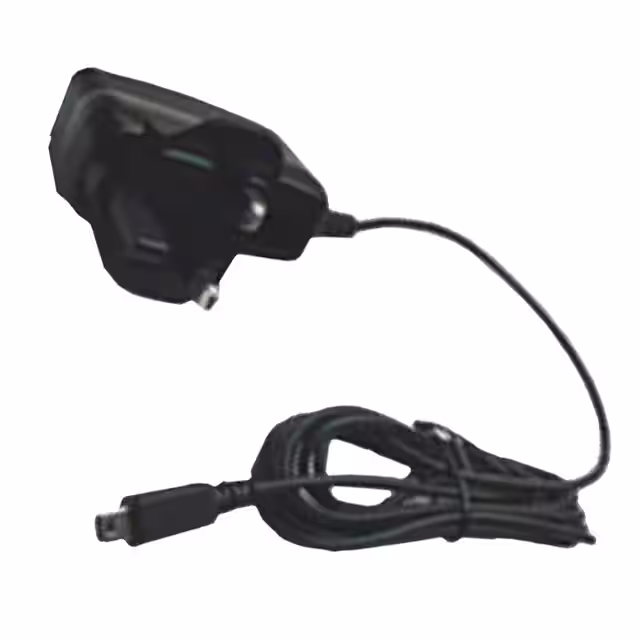

PSAA05K-050AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,723 | - |
RFQ |
Box | PSAA05 (5W) | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9 (1.80m) | BS 1363 | - | 2.62 L x 1.10 W x 1.54 H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS | |
|

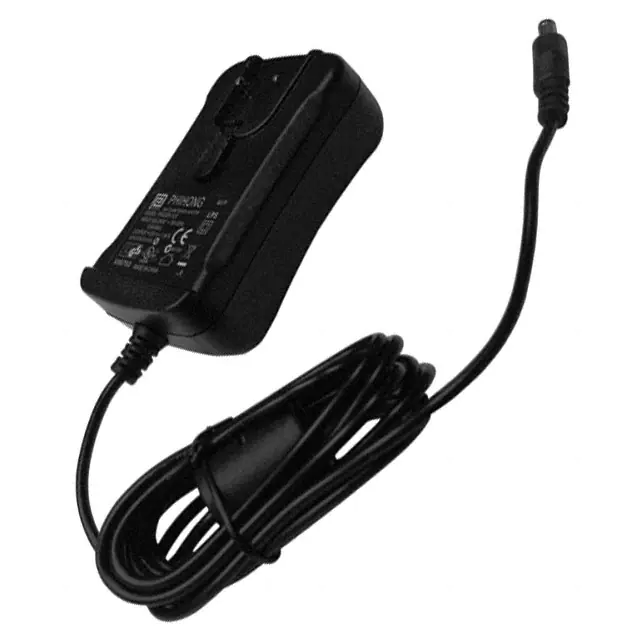

PSC30R-240AC/DC WALL MOUNT ADAPTER 24V 30W Phihong USA |
3,164 | - |
RFQ |
Scheda tecnica |
Box | PSC30R (30W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83 (1.85m) | Multi-Blade | - | 3.90 L x 2.50 W x 1.40 H (100.0mm x 63.0mm x 36.0mm) | C-Tick, cULus |
.jpg)
|

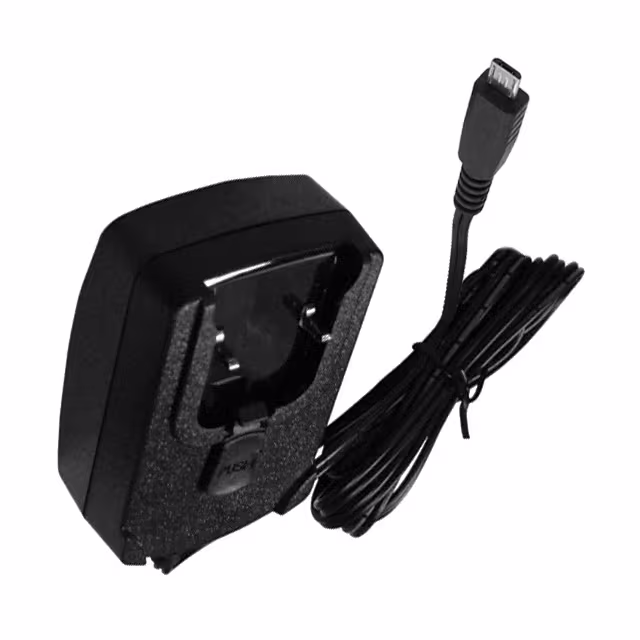

PSM08R-050(M)AC/DC WALL MOUNT ADAPTER 5V 8W Phihong USA |
2,652 | - |
RFQ |
Scheda tecnica |
Box | PSM08R (8W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.6A | 8 W | 300mW (Max) | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB Micro | 70.9 (1.80m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.17 H (71.7mm x 45.0mm x 29.8mm) | CCC, C-Tick, cULus |
|

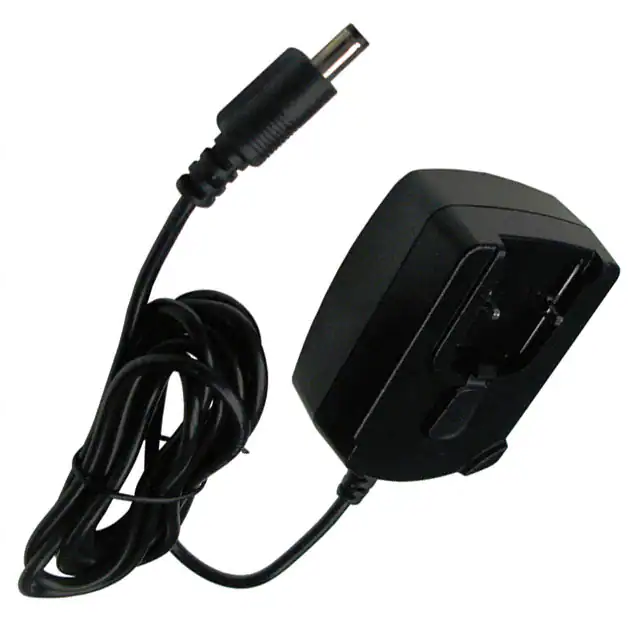

PSM11R-050AC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
3,767 | - |
RFQ |
Scheda tecnica |
Box | PSM11R (10W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9 (1.80m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.22 H (71.7mm x 45.0mm x 31.0mm) | CE, C-Tick, cULus, GS |
|
|
PSM11R-090AC/DC WALL MOUNT ADAPTER 9V 9.9W Phihong USA |
2,880 | - |
RFQ |
Scheda tecnica |
Box | PSM11R (10W) | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.1A | 9.9 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9 (1.80m) | Multi-Blade | - | 2.82 L x 1.77 W x 1.22 H (71.7mm x 45.0mm x 31.0mm) | CE, C-Tick, cULus, GS |
|
PSAA05S-050AC/DC WALL MOUNT ADAPTER 5V 5W Phihong USA |
3,100 | - |
RFQ |
Box | PSAA05 (5W) | Obsolete | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9 (1.80m) | AS 3112 | - | 2.62 L x 1.10 W x 1.54 H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS | |
|
PSAA15W-180AC/DC DESKTOP ADAPTER 18V 15W Phihong USA |
2,859 | - |
RFQ |
Scheda tecnica |
Box | PSAA15W (15W) | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 830mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9 (1.80m) | IEC 320-C8 | - | 3.20 L x 1.97 W x 1.17 H (81.2mm x 50.0mm x 29.8mm) | cULus |
|

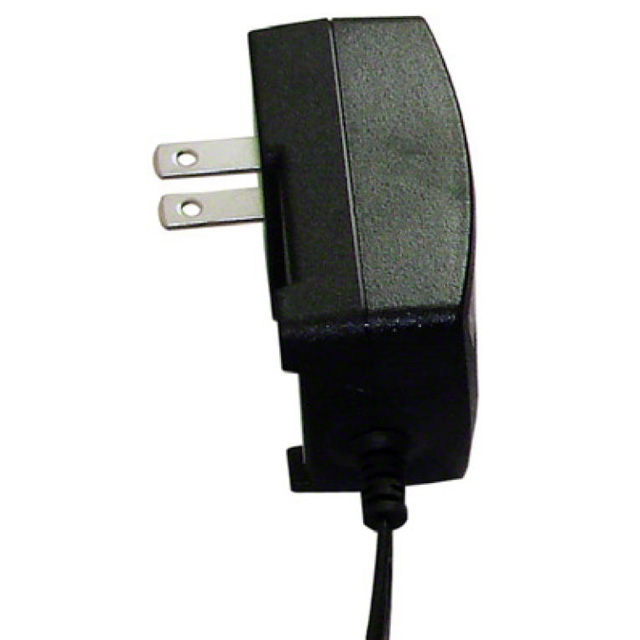

PSC12A-050AC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
2,995 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | NEMA 1-15P | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | cULus |
|
|
PSC12A-090AC/DC WALL MOUNT ADAPTER 9V 10W Phihong USA |
2,400 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | NEMA 1-15P | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | cULus |
|

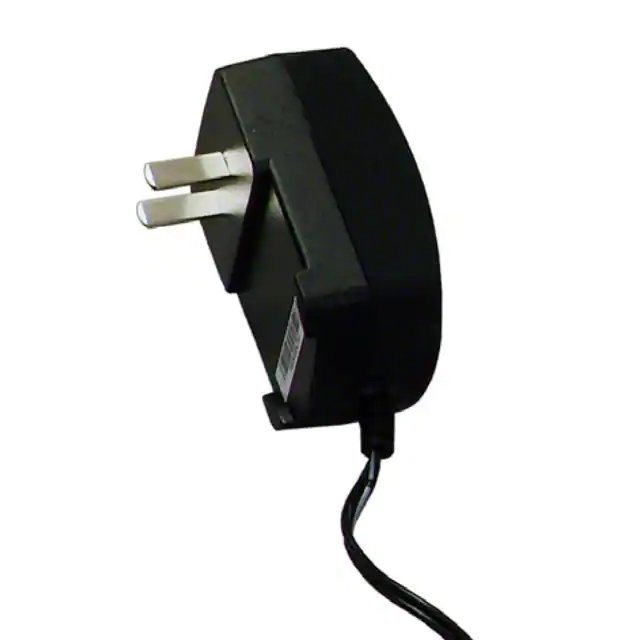

PSC12C-050AC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
3,013 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | China | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | GB 1002 | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | CCC |
|
|
PSC12C-090AC/DC WALL MOUNT ADAPTER 9V 10W Phihong USA |
3,865 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | China | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | GB 1002 | - | 2.82 L x 1.77 W x 1.30 H (71.7mm x 45.0mm x 33.0mm) | CCC |
|
PSC12E-050AC/DC WALL MOUNT ADAPTER 5V 10W Phihong USA |
2,286 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | CEE 7/16 | - | 2.82 L x 1.77 W x 1.20 H (71.7mm x 45.0mm x 30.5mm) | CE |
|
|
PSC12E-090AC/DC WALL MOUNT ADAPTER 9V 10W Phihong USA |
3,836 | - |
RFQ |
Scheda tecnica |
Box | PSC12 (10W) | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2 (1.20m) | CEE 7/16 | - | 2.82 L x 1.77 W x 1.20 H (71.7mm x 45.0mm x 30.5mm) | CE |
