Condensatori elettrolitici in alluminio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

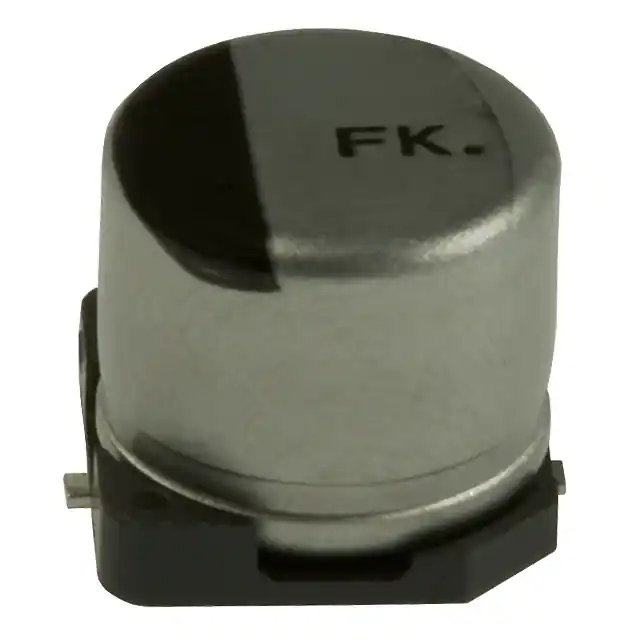

EEV-FK1A221XPCAP ALUM 220UF 20% 10V SMD Panasonic Electronic Components |
3,889 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEV-FK1A681PCAP ALUM 680UF 20% 10V SMD Panasonic Electronic Components |
2,319 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1C680PCAP ALUM 68UF 20% 16V SMD Panasonic Electronic Components |
3,929 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1C151XPCAP ALUM 150UF 20% 16V SMD Panasonic Electronic Components |
2,688 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 150 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1C221XPCAP ALUM 220UF 20% 16V SMD Panasonic Electronic Components |
3,650 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1E680PCAP ALUM 68UF 20% 25V SMD Panasonic Electronic Components |
2,188 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 68 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 240 mA @ 100 kHz | 360 mOhms | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1E101XPCAP ALUM 100UF 20% 25V SMD Panasonic Electronic Components |
3,989 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1E151PCAP ALUM 150UF 20% 25V SMD Panasonic Electronic Components |
3,381 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 150 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1V680XPCAP ALUM 68UF 20% 35V SMD Panasonic Electronic Components |
2,940 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 68 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1V101XPCAP ALUM 100UF 20% 35V SMD Panasonic Electronic Components |
2,558 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 280 mA @ 100 kHz | 340 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1V151PCAP ALUM 150UF 20% 35V SMD Panasonic Electronic Components |
3,967 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 600 mA @ 100 kHz | 160 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEV-FK1H330XPCAP ALUM 33UF 20% 50V SMD Panasonic Electronic Components |
2,164 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 195 mA @ 100 kHz | 680 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FK1H470XPCAP ALUM 47UF 20% 50V SMD Panasonic Electronic Components |
2,916 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 195 mA @ 100 kHz | 680 mOhms | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EET-UQ2W331EACAP ALUM 330UF 20% 450V SNAP Panasonic Electronic Components |
2,088 | - |
RFQ |
Scheda tecnica |
Bulk | TS-UQ | Obsolete | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.814 A @ 10 kHz | - | - | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
ECE-P2EP682HACAP ALUM 6800UF 20% 250V SNAP Panasonic Electronic Components |
3,694 | - |
RFQ |
Scheda tecnica |
Bulk | T-UP | Obsolete | 6800 µF | ±20% | 250 V | 29mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.16 A @ 120 Hz | 17.02 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
EET-ED2D102CACAP ALUM 1000UF 20% 200V SNAP Panasonic Electronic Components |
2,205 | - |
RFQ |
Scheda tecnica |
Bulk | TS-ED | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
EET-ED2D102DACAP ALUM 1000UF 20% 200V SNAP Panasonic Electronic Components |
3,944 | - |
RFQ |
Scheda tecnica |
Bulk | TS-ED | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
EET-ED2D102EACAP ALUM 1000UF 20% 200V SNAP Panasonic Electronic Components |
3,104 | - |
RFQ |
Scheda tecnica |
Bulk | TS-ED | Obsolete | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EET-ED2D122DACAP ALUM 1200UF 20% 200V SNAP Panasonic Electronic Components |
3,688 | - |
RFQ |
Scheda tecnica |
Bulk | TS-ED | Obsolete | 1200 µF | ±20% | 200 V | 124mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 4.47 A @ 100 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.575 (40.00mm) | - | Through Hole |
|
EET-ED2D122EACAP ALUM 1200UF 20% 200V SNAP Panasonic Electronic Components |
3,127 | - |
RFQ |
Scheda tecnica |
Bulk | TS-ED | Obsolete | 1200 µF | ±20% | 200 V | 124mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 4.47 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
