Alluminio - Condensatori polimerici
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PVM-16V101MG70E-R2CAP ALUM POLY 100UF 20% 16V SMD Elna America |
500 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT) | PVM | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.331 L x 0.331 W (8.40mm x 8.40mm) | Surface Mount |
|
875075161011CAP ALUM POLY 1200UF 6.3V SMD Würth Elektronik |
392 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WCAP-PSLC | Active | Polymer | 1200 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.488 (12.40mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
APXE160ARA390ME61GCAP ALUM POLY 39UF 20% 16V SMD United Chemi-Con |
667 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXE | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.07 A @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE4R0ARA151ME61GCAP ALUM POLY 150UF 20% 4V SMD United Chemi-Con |
500 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXE | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
25SVP56MCAP ALUM POLY 56UF 20% 25V SMD Panasonic Electronic Components |
2,902 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVP | Active | Polymer | 56 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
870135375007CAP ALUM POLY 470UF 20% 16V T/H Würth Elektronik |
154 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | WCAP-PTHT | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 96.45 mA @ 120 Hz | 1.929 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
PCF1D560MCL1GSCAP ALUM POLY 56UF 20% 20V SMD Nichicon |
500 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 56 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PCG1A181MCL1GSCAP ALUM POLY 180UF 20% 10V SMD Nichicon |
235 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCG | Active | Polymer | 180 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.236 (6.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
20SVPA47MCAP ALUM POLY 47UF 20% 20V SMD Panasonic Electronic Components |
909 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPA | Active | Polymer | 47 µF | ±20% | 20 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 131.5 mA @ 120 Hz | 2.63 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
RNL1C681MDS1KXCAP ALUM POLY 680UF 20% 16V T/H Nichicon |
897 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNL | Active | Polymer | 680 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 700 mA @ 120 Hz | 7 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
6SVPA220MAACAP ALUM POLY 220UF 20% 6.3V SMD Panasonic Electronic Components |
783 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPA | Active | Polymer | 220 µF | ±20% | 6.3 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 161 mA @ 120 Hz | 3.22 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
16SVPF1000MXCAP ALUM POLY 1000UF 20% 16V SMD Panasonic Electronic Components |
150 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPF | Active | Polymer | 1000 µF | ±20% | 16 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
875115752001CAP ALUM POLY 10UF 20% 50V SMD Würth Elektronik |
420 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WCAP-PSHP | Active | Polymer | 10 µF | ±20% | 50 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.354 (9.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
4SVPC1500MCAP ALUM POLY 1500UF 20% 4V SMD Panasonic Electronic Components |
2,950 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPC | Active | Polymer | 1500 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
25SVPK270MCAP ALUM POLY 270UF 20% 25V SMD Panasonic Electronic Components |
367 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPK | Active | Polymer | 270 µF | ±20% | 25 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 73.5 mA @ 120 Hz | 1.47 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
APXH160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD United Chemi-Con |
970 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXH | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.264 (6.70mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

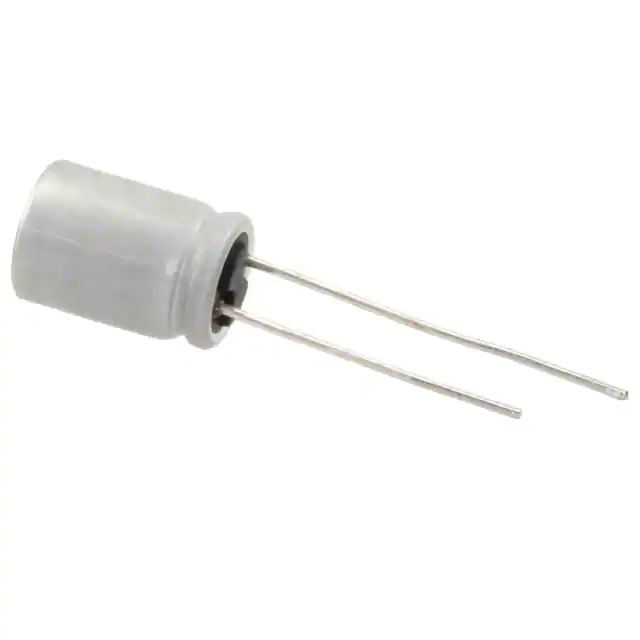

PLS1A271MDO1TDCAP ALUM POLY 270UF 20% 10V T/H Nichicon |
995 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | PLS | Active | Polymer | 270 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
PVH-35V100MG70E-R2CAP ALUM POLY 10UF 20% 35V SMD Elna America |
898 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PVH | Active | Polymer | 10 µF | ±20% | 35 V | 200mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 750 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.331 L x 0.331 W (8.40mm x 8.40mm) | Surface Mount |
|
|
870135175007CAP ALUM POLY 1200UF 6.3V T/H Würth Elektronik |
560 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | WCAP-PTHT | Active | Polymer | 1200 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
PVH-10V331MH80E-R2CAP ALUM POLY 330UF 20% 10V SMD Elna America |
493 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PVH | Active | Polymer | 330 µF | ±20% | 10 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.409 L x 0.409 W (10.40mm x 10.40mm) | Surface Mount |
