Alluminio - Condensatori polimerici
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Ratings | Applications | Features | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXE160ARA680MF61GCAP ALUM POLY 68UF 20% 16V SMD United Chemi-Con |
134 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | NPCAP™-PXE | Active | Polymer | 68 µF | ±20% | 16 V | 28mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.39 A @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
RNL1C152MDS1PHCAP ALUM POLY 1500UF 20% 16V T/H Nichicon |
233 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNL | Active | Polymer | 1500 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
EEH-ZT1E221VCAP ALUM POLY HYB 220UF 25V SMD Panasonic Electronic Components |
113 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | ZT | Active | Hybrid | 220 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.425 (10.80mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
A767MU157M1VLAE028CAP ALUM POLY 150UF 20% 35V SMD KEMET |
101 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | A767 | Active | Polymer | 150 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.508 (12.90mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V270MCL1GSCAP ALUM POLY 27UF 20% 35V SMD Nichicon |
959 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCV | Active | Polymer | 27 µF | ±20% | 35 V | 55mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ0J821MCL1GSCAP ALUM POLY 820UF 20% 6.3V SMD Nichicon |
490 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 820 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0J122MCL1GSCAP ALUM POLY 1200UF 6.3V SMD Nichicon |
490 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 1200 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.025 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCJ1C221MCL4GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
277 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 220 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.89 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ1A471MCL1GSCAP ALUM POLY 470UF 20% 10V SMD Nichicon |
200 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCJ | Active | Polymer | 470 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.315 (8.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
PCF1E470MCL4GSCAP ALUM POLY 47UF 20% 25V SMD Nichicon |
390 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
RNU1V470MDN1KXCAP ALUM POLY 47UF 20% 35V T/H Nichicon |
335 | - |
RFQ |
Scheda tecnica |
Cut Tape (CT),Tape & Box (TB) | FPCAP, RNU | Active | Polymer | 47 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
50SVPK68MCAP ALUM POLY 68UF 20% 50V SMD Panasonic Electronic Components |
3,578 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | OS-CON™, SVPK | Active | Polymer | 68 µF | ±20% | 50 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.472 (12.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-UD0J121LRCAP ALUM POLY 120UF 20% 6.3V SMD Panasonic Electronic Components |
2,461 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap UD | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.118 (3.00mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCF1E470MCL1GSCAP ALUM POLY 47UF 20% 25V SMD Nichicon |
217 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 47 µF | ±20% | 25 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
875075561007CAP ALUM POLY 180UF 20% 25V SMD Würth Elektronik |
199 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | WCAP-PSLC | Active | Polymer | 180 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.488 (12.40mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-CS1E100RCAP ALUM POLY 10UF 20% 25V SMD Panasonic Electronic Components |
452 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap CS | Not For New Designs | Polymer | 10 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.047 (1.20mm) | - | Surface Mount |
|

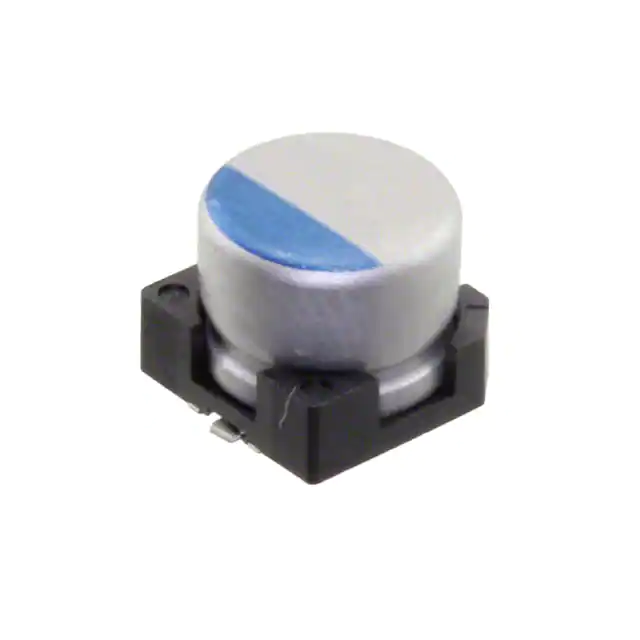

PCX1C820MCS1GSCAP ALUM POLY 82UF 20% 16V SMD Nichicon |
900 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCX | Active | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.315 (8.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-SD0G151RCAP ALUM POLY 150UF 20% 4V SMD Panasonic Electronic Components |
727 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | SP-Cap SD | Obsolete | Polymer | 150 µF | ±20% | 4 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287 L x 0.169 W (7.30mm x 4.30mm) | 0.110 (2.80mm) | 0.287 L x 0.169 W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCF1A471MCL9GSCAP ALUM POLY 470UF 20% 10V SMD Nichicon |
373 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PCF | Active | Polymer | 470 µF | ±20% | 10 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.500 (12.70mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
A767MU107M1VLAE029CAP ALUM POLY 100UF 20% 35V SMD KEMET |
115 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | A767 | Active | Polymer | 100 µF | ±20% | 35 V | 29mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.508 (12.90mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
