Trasformatori audio

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	TurnsRatio-Primary:Secondary	Impedance-Primary(Ohms)	Impedance-Secondary(Ohms)	DCResistance(DCR)-Primary	DCResistance(DCR)-Secondary	TransformerType	FrequencyRange	FrequencyResponse	Voltage-Isolation	InsertionLoss	ReturnLoss	PowerLevel	OperatingTemperature	ApprovalAgency	MountingType	Size/Dimension	Height-Seated(Max)
MET-59-T AUDIO XFMR 600/150:150 THRU HOLE Triad Magnetics	3,415	-	RFQ	Scheda tecnica	Bulk	MET	Active	2:1:1	600	150/150	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-31 TRANSFORMER 600CT:600CT 3.0MADC Tamura	2,841	-	RFQ	Scheda tecnica	Tube	MET	Active	1:1	600CT	600CT	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-31-T TRANSFORMER 600CT:600CT 3.0MADC Triad Magnetics	920	-	RFQ	Scheda tecnica	Bulk	MET	Active	1:1	600CT	600CT	70Ohm	95Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-09 TRANSFORMER 10KCT:10KCT 1.0MADC Tamura	2,858	-	RFQ	Scheda tecnica	Tube	MET	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)
MET-09-T-B TRANSFORMER 10KCT:10KCT 1.0MADC Triad Magnetics	3,765	-	RFQ	Scheda tecnica	Bulk	MET	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 1 Second	-	-	40mW	-20°C ~ 85°C	-	Through Hole	0.409 L x 0.310 W (10.40mm x 7.87mm)	0.465 (11.80mm)

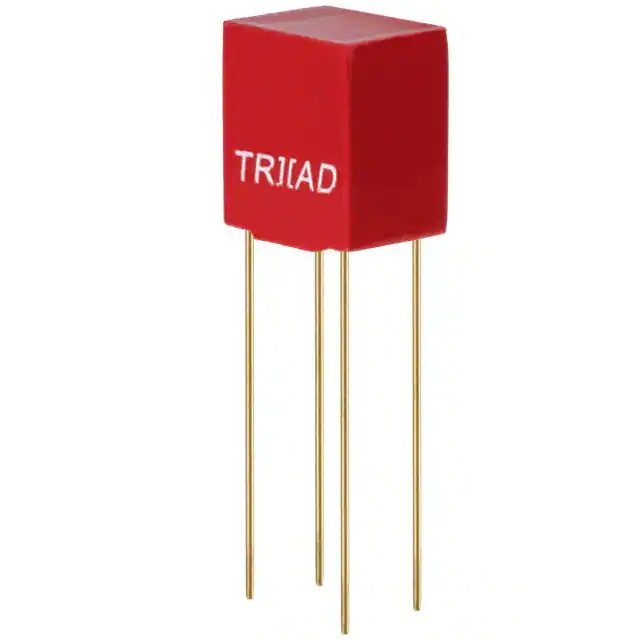

SP-33 TRANS 1K/50 OHM IMPEDANCE AUDIO Triad Magnetics	2,251	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	4.4:1	1k	50	145Ohm	8Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-66 TRANSER 10K CT/ 10K CT AUDIO Triad Magnetics	3,962	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-70 TRANS 600/ 600 OHM AUDIO Triad Magnetics	3,056	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	1:1	600	600	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-69 TRANS 600/ 600CT 150 SPLIT AUDIO Triad Magnetics	3,394	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	2:1:1	600	600, 150/150	72Ohm	40Ohm, 45Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)

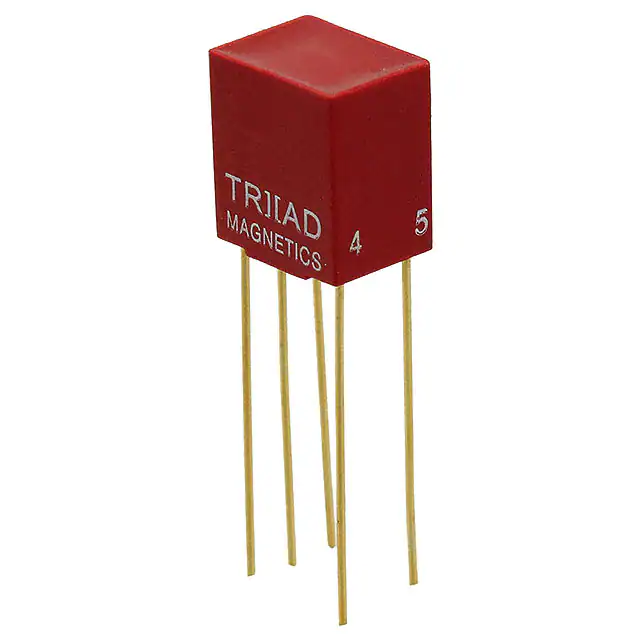

SP-49 TRANS 300/600 OHM IMPEDNCE AUDIO Triad Magnetics	203	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	1:1.42	300CT	600	41Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
SP-67 TRANSER 600 CT/ 600 CT AUDIO Triad Magnetics	3,800	-	RFQ	Scheda tecnica	Bulk	Red-Spec	Active	1:1	600CT	600CT	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410 L x 0.310 W (10.41mm x 7.87mm)	0.465 (11.80mm)
107H TRANSFORMER AUDIO 600CT/600CT Hammond Manufacturing	358	-	RFQ	Scheda tecnica	Bulk	107	Active	1:1	600CT	600CT	60Ohm	78Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
107D TRANSFORMER AUDIO 150CT/150CT Hammond Manufacturing	216	-	RFQ	Scheda tecnica	Bulk	107	Active	1:1	150CT	150CT	22Ohm	27Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	100VRMS	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)
108E TRANSFORMER AUDIO 600CT/3.2 Hammond Manufacturing	103	-	RFQ	Scheda tecnica	Bulk	108	Active	13.71:1	600CT	3.2	54Ohm	400mOhm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.75dB	100VRMS	-	-	500mW	-	-	Through Hole	1.030 L x 0.770 W (26.16mm x 19.56mm)	0.770 (19.56mm)
107X TRANSFORMER AUDIO 100KCT/1KCT Hammond Manufacturing	109	-	RFQ	Scheda tecnica	Bulk	107	Active	10:1	100kCT	1kCT	3.66kOhm	75Ohm	Miniature Epoxy Potted	300Hz ~ 50kHz	±1.5dB	500Vrms	-	-	150mW	-	-	Through Hole	0.630 L x 0.586 W (16.00mm x 14.88mm)	0.630 (16.00mm)

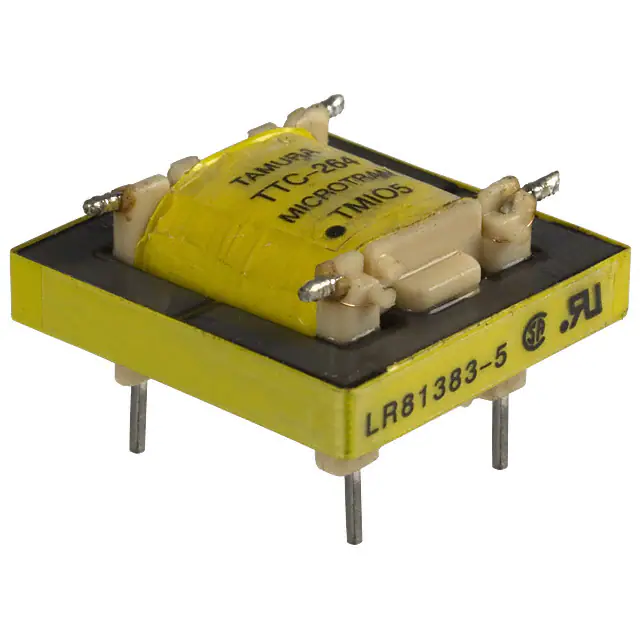

TTC-264 TRANSF TELE 600/470 OHM 100MADC Tamura	2,819	-	RFQ	Scheda tecnica	Bulk	TTC	Active	1:1	600	470	108Ohm	120Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±1dB ~ ±4dB	1500VRMS @ 1 Minute	2.5dB Max @ 1kHz	-	-20dB ~ 4dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.945 L x 0.906 W (24.00mm x 23.00mm)	0.472 (12.00mm)

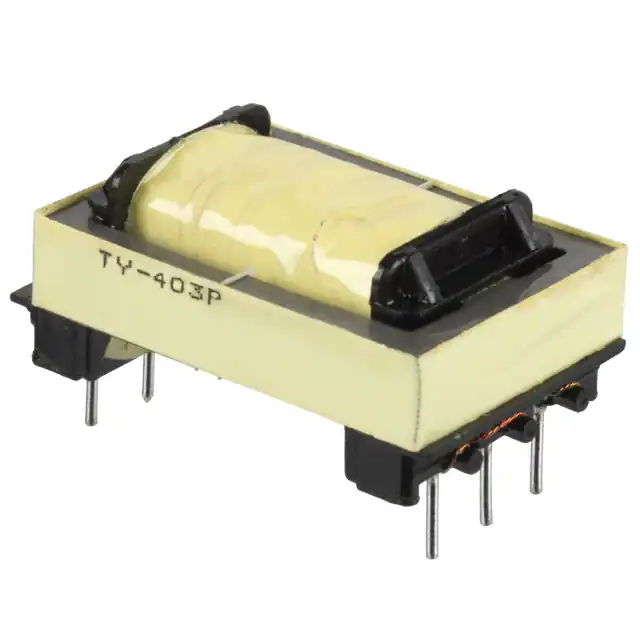

TY-403P TRANSF 600 SPLIT SEC .90MA TEL Triad Magnetics	2,696	-	RFQ	Scheda tecnica	Bulk	TY	Active	1.81:1	600	600	80Ohm	56Ohm, 56Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1.75dB Typ	15dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.815 L x 1.250 W (20.70mm x 31.75mm)	0.530 (13.46mm)

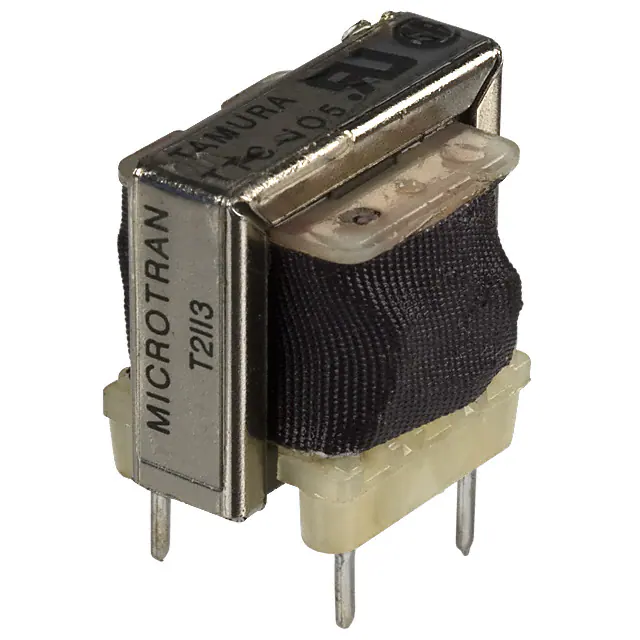

TTC-105 TRANSF TELE COUP 600:600 90MADC Tamura	160	-	RFQ	Scheda tecnica	Bulk	TTC	Active	1:1	600	600	71Ohm	117Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1dB ~ 0.7dB	1500VRMS @ 1 Minute	3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz	-	-45dB ~ 10dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.839 L x 0.630 W (21.30mm x 16.00mm)	0.748 (19.00mm)

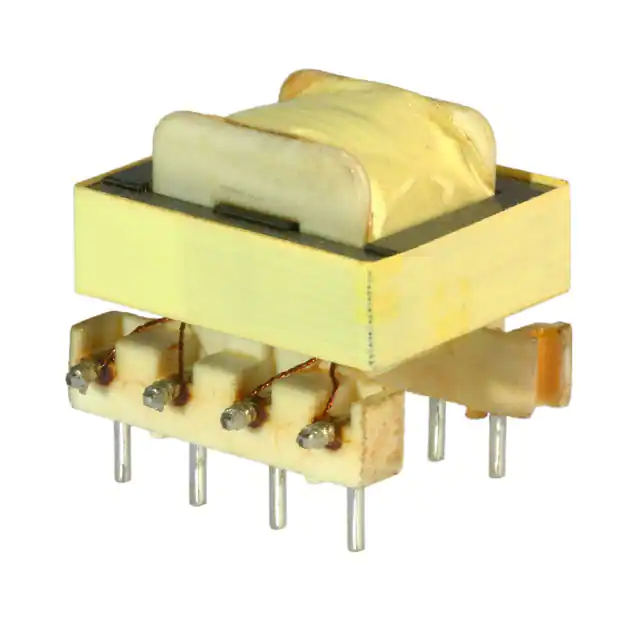

TY-250P PC MOUNT AUDIO TRANSFORMER Triad Magnetics	922	-	RFQ	Scheda tecnica	Box	TY	Active	1:1, 2:1	1kCT	1kCT	172Ohm	172Ohm	Impedance Matching	20Hz ~ 20kHz	±1dB	1500VAC	2.8dB Max @ 1kHz	-	-	-40°C ~ 105°C	-	Through Hole	0.800 L x 0.770 W (20.32mm x 19.56mm)	0.700 (17.78mm)
TY-144P TRANSF 15K AUDIO CTAP/15K CTAP Triad Magnetics	732	-	RFQ	Scheda tecnica	Bulk	TY	Active	1:1	15kCT	15kCT	1.18kOhm	1.6kOhm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812 L x 0.700 W (20.62mm x 17.78mm)	0.740 (18.80mm)
