Trasformatori audio
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | TurnsRatio-Primary:Secondary | Impedance-Primary(Ohms) | Impedance-Secondary(Ohms) | DCResistance(DCR)-Primary | DCResistance(DCR)-Secondary | TransformerType | FrequencyRange | FrequencyResponse | Voltage-Isolation | InsertionLoss | ReturnLoss | PowerLevel | OperatingTemperature | ApprovalAgency | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1650NAAUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing |
2,896 | - |
RFQ |
Scheda tecnica |
Box | A | Active | - | 4.3kCT | 4, 8, 16 | 37.19Ohm, 42.17Ohm | 244mOhm, 377mOhm, 490mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 30Hz ~ 30kHz | ±1dB | 2000V @ 1 Second | - | - | 60W | - | - | Chassis Mount | 4.250 L x 3.130 W (107.95mm x 79.50mm) | 3.810 (96.77mm) |
|

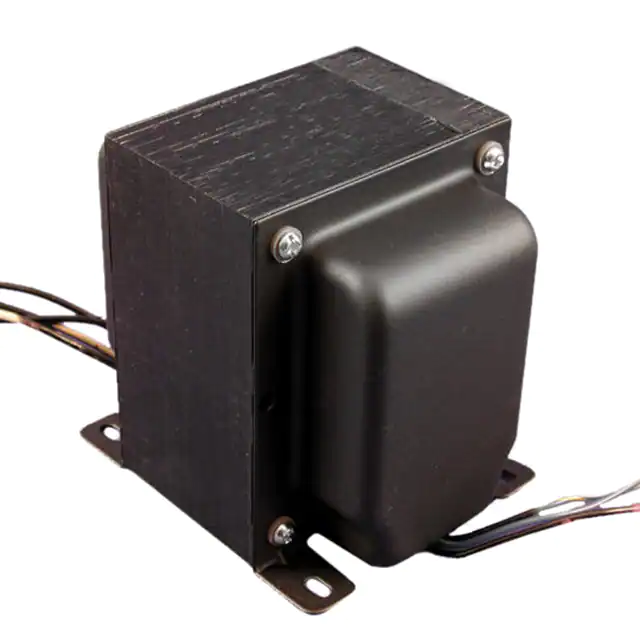

1628SEAAUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing |
2,749 | - |
RFQ |
Scheda tecnica |
Box | 1600 | Active | - | 5k | 4, 8, 16 | - | - | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2000Vrms | ±1dB | - | 30W | - | - | Chassis Mount | 4.500 L x 3.750 W (114.30mm x 95.25mm) | 4.560 (115.82mm) |
|

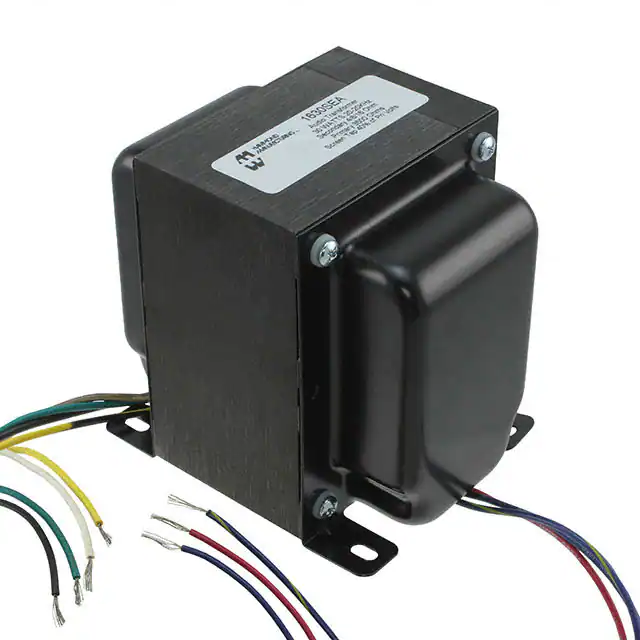

1630SEAAUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing |
2,508 | - |
RFQ |
Scheda tecnica |
Box | 1600 | Active | - | 3.5k | 4, 8, 16 | 110.1Ohm | 634mOhm | Single Ended Audiophile, Ultra-Linear - Tube Output | 20Hz ~ 20kHz | ±1dB | 2828VDC @ 1 Second | ±1dB | - | 30W | - | - | Chassis Mount | 4.980 L x 3.750 W (126.49mm x 95.25mm) | 4.650 (118.11mm) |
|
|
1638SEAAUDIOPHILE TUBE OUTPUT TRANSFRMR Hammond Manufacturing |
2,124 | - |
RFQ |
Scheda tecnica |
Box | 1600 | Active | - | 10k | 4, 8, 16 | - | - | Single Ended Audiophile | 20Hz ~ 20kHz | ±1dB | 2000Vrms | ±1dB | - | 30W | - | - | Chassis Mount | 4.880 L x 3.750 W (123.95mm x 95.25mm) | 4.560 (115.82mm) |
|
T6074NLXFRMR 1:1 FOR CIRRUS LOGIC T/H Pulse Electronics Network |
2,682 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | 0.500 L x 0.350 W (12.70mm x 8.89mm) | 0.250 (6.35mm) |
|

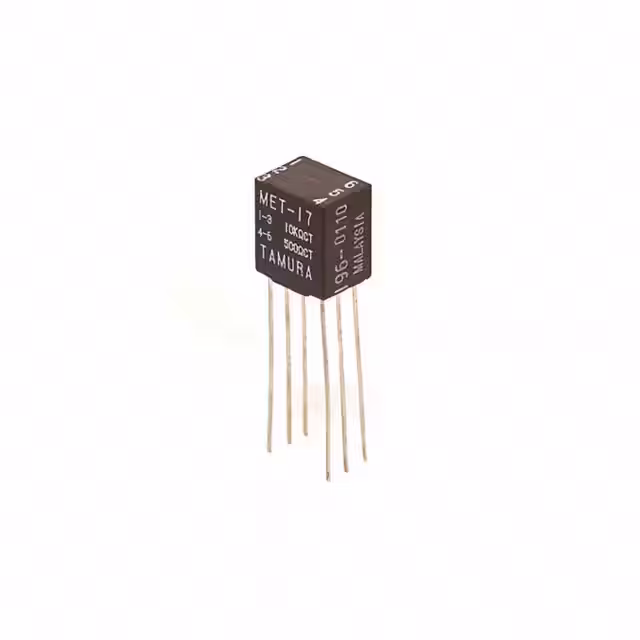

MET-17TRANSFORMER 10KCT:500CT 1.0MADC Tamura |
577 | - |
RFQ |
Scheda tecnica |
Tube | MET | Active | 4.47:1 | 10kCT | 500CT | 1kOhm | 80Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409 L x 0.310 W (10.40mm x 7.87mm) | 0.465 (11.80mm) |
|
101PTRANSFORMER AUDIO 300CT/50CT Hammond Manufacturing |
3,441 | - |
RFQ |
Scheda tecnica |
Bulk | 101 | Active | - | 300CT | 50CT | 20.4Ohm | 4.8Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450 L x 0.450 W (11.43mm x 11.43mm) | 0.480 (12.19mm) |
|
|
101HTRANSFORMER AUDIO 1200CT/600CT Hammond Manufacturing |
3,792 | - |
RFQ |
Scheda tecnica |
Bulk | 101 | Active | - | 1.2kCT | 600CT | 80Ohm | 53Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450 L x 0.450 W (11.43mm x 11.43mm) | 0.480 (12.19mm) |
|
|
101JTRANSFORMER AUDIO 2500CT/600CT Hammond Manufacturing |
2,915 | - |
RFQ |
Scheda tecnica |
Bulk | 101 | Active | - | 2.5kCT | 600CT | 150Ohm | 54Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450 L x 0.450 W (11.43mm x 11.43mm) | 0.480 (12.19mm) |
|
|
101VTRANSFORMER AUDIO 2500CT/50CT Hammond Manufacturing |
2,324 | - |
RFQ |
Scheda tecnica |
Bulk | 101 | Active | - | 2.5kCT | 50CT | 150.7Ohm | 4.9Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450 L x 0.450 W (11.43mm x 11.43mm) | 0.480 (12.19mm) |
|
|
101RTRANSFORMER AUDIO 600CT/50CT Hammond Manufacturing |
3,356 | - |
RFQ |
Scheda tecnica |
Bulk | 101 | Active | - | 600CT | 50CT | 44Ohm | 4.7Ohm | Miniature Epoxy Potted | 200Hz ~ 100kHz | ±0.5dB | - | - | - | 100mW | - | - | Through Hole | 0.450 L x 0.450 W (11.43mm x 11.43mm) | 0.480 (12.19mm) |
|

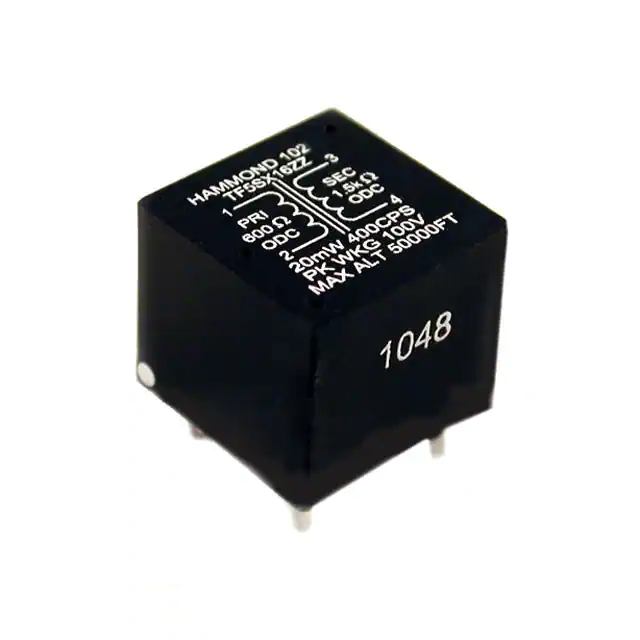

102DTRANSFORMER AUDIO 600/1500 Hammond Manufacturing |
3,727 | - |
RFQ |
Scheda tecnica |
Bulk | 102 | Active | - | 600 | 1.5k | 43Ohm | 85Ohm | Miniature Epoxy Potted | 310Hz | -1dB | 100V | 1.5dB | - | 20mW | - | - | Through Hole | 0.570 L x 0.570 W (14.48mm x 14.48mm) | 0.480 (12.19mm) |
|
107TTRANSFORMER AUDIO 10KCT/10KCT Hammond Manufacturing |
3,557 | - |
RFQ |
Scheda tecnica |
Bulk | 107 | Active | 1:1 | 10kCT | 10kCT | 690Ohm | 680Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630 L x 0.586 W (16.00mm x 14.88mm) | 0.630 (16.00mm) |
|
|
107ETRANSFORMER AUDIO 600CT/3.2 Hammond Manufacturing |
3,101 | - |
RFQ |
Scheda tecnica |
Bulk | 107 | Active | 13.68:1 | 600CT | 3.2 | 60Ohm | 600mOhm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630 L x 0.586 W (16.00mm x 14.88mm) | 0.630 (16.00mm) |
|
|
107NTRANSFORMER AUDIO 10KCT/600CT Hammond Manufacturing |
2,057 | - |
RFQ |
Scheda tecnica |
Bulk | 107 | Active | 4.07:1 | 10kCT | 600 | 710Ohm | 70Ohm | Miniature Epoxy Potted | 300Hz ~ 50kHz | ±1.5dB | 100VRMS | - | - | 150mW | - | - | Through Hole | 0.630 L x 0.586 W (16.00mm x 14.88mm) | 0.630 (16.00mm) |
|
146BTRANSFORMER AUDIO 48CT/3.2 IMPED Hammond Manufacturing |
2,723 | - |
RFQ |
Scheda tecnica |
Bulk | 146 | Active | - | 48CT | 3.2 | 2.4Ohm | 300mOhm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 700mW | - | - | Chassis Mount | 1.630 L x 0.880 W (41.40mm x 22.35mm) | 0.810 (20.57mm) |
|

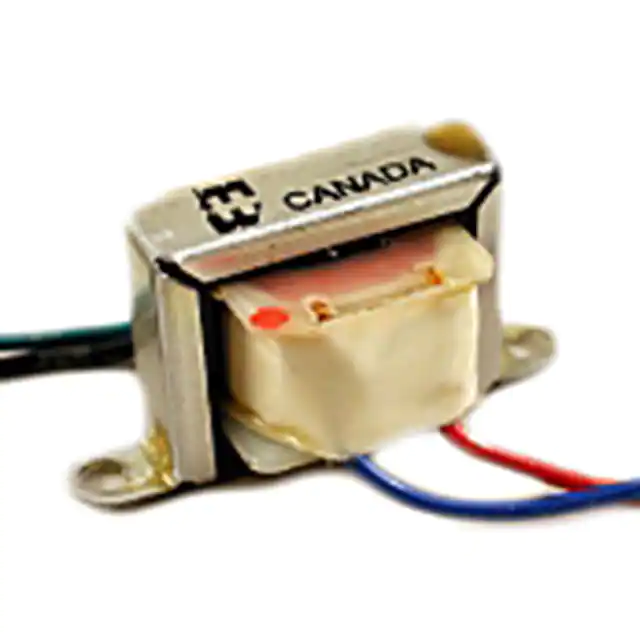

144ITRANSFORMR AUDIO 600CT/150CT IMP Hammond Manufacturing |
3,413 | - |
RFQ |
Scheda tecnica |
Bulk | 144 | Active | - | 600CT | 150CT | 45Ohm | 8.2Ohm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 150mW | - | - | Chassis Mount | 1.000 L x 0.690 W (25.40mm x 17.53mm) | 0.690 (17.53mm) |
|
|
146FTRANSFORMER AUDIO 250CT/3.2 IMP Hammond Manufacturing |
2,219 | - |
RFQ |
Scheda tecnica |
Bulk | 146 | Active | - | 250CT | 3.2 | 11Ohm | 300mOhm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 700mW | - | - | Chassis Mount | 1.630 L x 0.880 W (41.40mm x 22.35mm) | 0.810 (20.57mm) |
|
|
144DTRANSFORMER AUDIO 300CT/3.2 IMP Hammond Manufacturing |
2,715 | - |
RFQ |
Scheda tecnica |
Bulk | 144 | Active | - | 300CT | 3.2 | 15Ohm | 330mOhm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 150mW | - | - | Chassis Mount | 1.000 L x 0.690 W (25.40mm x 17.53mm) | 0.690 (17.53mm) |
|
|
144PTRANSFORMER AUDIO 10K/3.2 IMPED Hammond Manufacturing |
2,876 | - |
RFQ |
Scheda tecnica |
Bulk | 144 | Active | - | 10k | 3.2 | 575Ohm | 500mOhm | Economical Open Type | 150Hz ~ 15kHz | ±1dB | - | - | - | 50mW | - | - | Chassis Mount | 1.000 L x 0.690 W (25.40mm x 17.53mm) | 0.690 (17.53mm) |
