Induttanze di modo comune

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

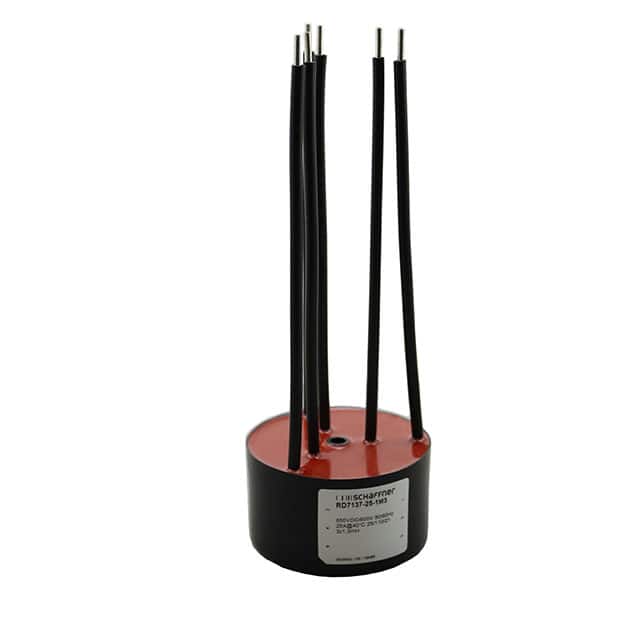

RD7137-25-1M3 CMC 1.3MH 25A 3LN TH Schaffner EMC Inc.	2,201	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	3	-	1.3 mH @ 400 Hz	25A (Typ)	4.45mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.756 L x 2.756 W (70.00mm x 70.00mm)	1.594 (40.50mm)

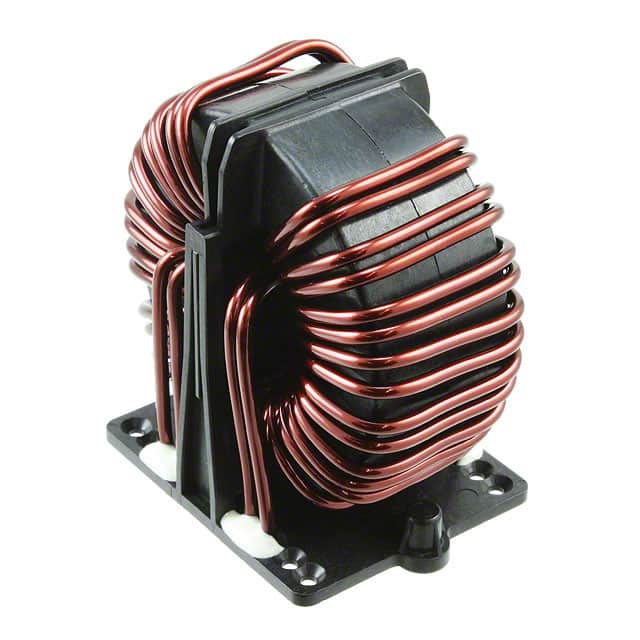

RB8522-36-1M5 CMC 1.5MH 36A 2LN TH Schaffner EMC Inc.	3,745	-	RFQ	Scheda tecnica	Bulk	RB	Active	Power Line	2	-	1.5 mH @ 400 Hz	36A	3mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.362 L x 1.988 W (60.00mm x 50.50mm)	3.150 (80.00mm)
RD8127-16-12M0 CMC 12MH 16A 2LN TH Schaffner EMC Inc.	2,379	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	2	-	12 mH @ 1 kHz	16A (Typ)	20.05mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

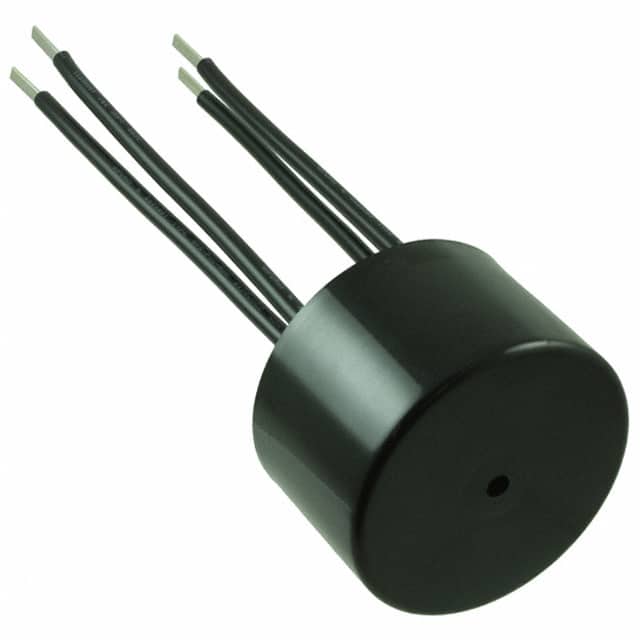

RD8127-36-3M0 CMC 3MH 36A 2LN TH Schaffner EMC Inc.	2,574	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	2	-	3 mH @ 400 Hz	36A (Typ)	4.55mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RD8127-64-0M8 CMC 800UH 64A 2LN TH Schaffner EMC Inc.	3,766	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	2	-	800 µH @ 400 Hz	64A (Typ)	1.6mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)

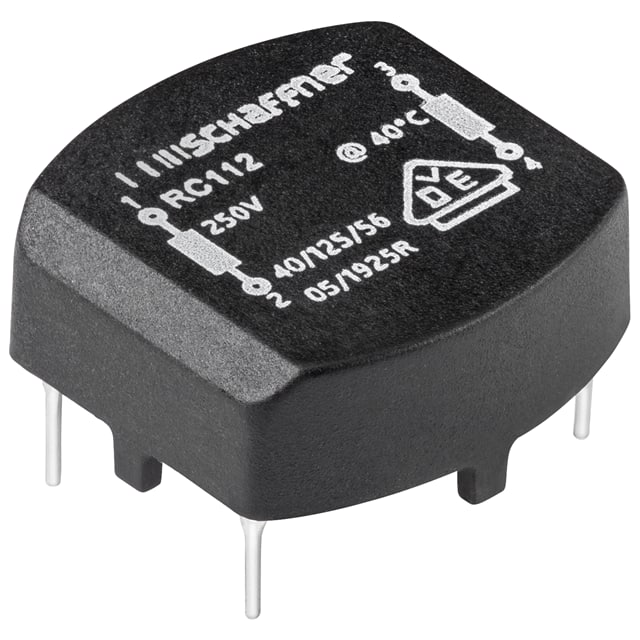

RC112-0.4-15M CMC 15MH 400MA 2LN TH Schaffner EMC Inc.	489	-	RFQ	Scheda tecnica	Bulk	RC	Active	Power Line	2	-	15 mH @ 10 kHz	400mA	1.35Ohm	-	250V	-40°C ~ 125°C	-	VDE	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.315 (8.00mm)
RC112-0.3-30M CMC 30MH 300MA 2LN TH Schaffner EMC Inc.	444	-	RFQ	Scheda tecnica	Bulk	RC	Active	Power Line	2	-	30 mH @ 10 kHz	300mA	2.2Ohm	-	250V	-40°C ~ 125°C	-	VDE	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.315 (8.00mm)
RC112-0.35-22M CMC 22MH 350MA 2LN TH Schaffner EMC Inc.	252	-	RFQ	Scheda tecnica	Bulk	RC	Active	Power Line	2	-	22 mH @ 10 kHz	350mA	1.9Ohm	-	250V	-40°C ~ 125°C	-	VDE	-	Through Hole	0.689 L x 0.689 W (17.50mm x 17.50mm)	0.315 (8.00mm)
RN218-1.1-02-15M CMC 15MH 1.1A 2LN TH Schaffner EMC Inc.	397	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	1.1A	420mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN116-1-02-15M CMC 15MH 1A 2LN TH Schaffner EMC Inc.	334	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	1A	260mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN152-1-02-68M CMC 68MH 1A 2LN TH Schaffner EMC Inc.	3,376	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	68 mH @ 10 kHz	1A	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.693 L x 1.646 W (43.00mm x 41.80mm)	0.996 (25.30mm)
RT8132-8-4M8 CMC 4.8MH 8A 3LN TH Schaffner EMC Inc.	3,530	-	RFQ	Scheda tecnica	Tray	RT	Active	Power Line	3	-	4.8 mH @ 100 kHz	8A	17mOhm (Typ)	-	600V	-40°C ~ 100°C	-	-	-	Through Hole	-	1.339 (34.00mm)
RB6132-16-0M8 CMC 800UH 16A 3LN TH Schaffner EMC Inc.	2,505	-	RFQ	Scheda tecnica	Bulk	RB	Active	Power Line	3	-	800 µH @ 400 Hz	16A	4.6mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	-	-	Through Hole	2.315 L x 2.276 W (58.80mm x 57.80mm)	1.890 (48.00mm)

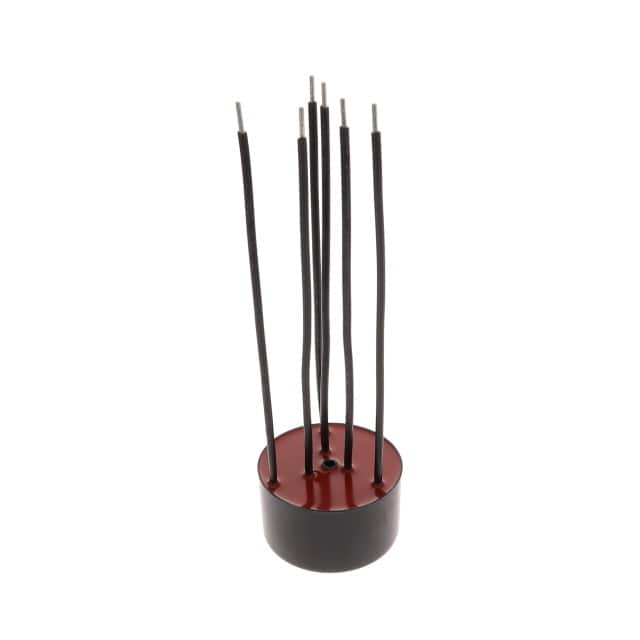

RD6137-16-1M5 CMC 1.5MH 16A 3LN TH Schaffner EMC Inc.	2,333	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	3	-	1.5 mH @ 400 Hz	16A (Typ)	8.3mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	2.362 L x 2.362 W (60.00mm x 60.00mm)	1.398 (35.50mm)

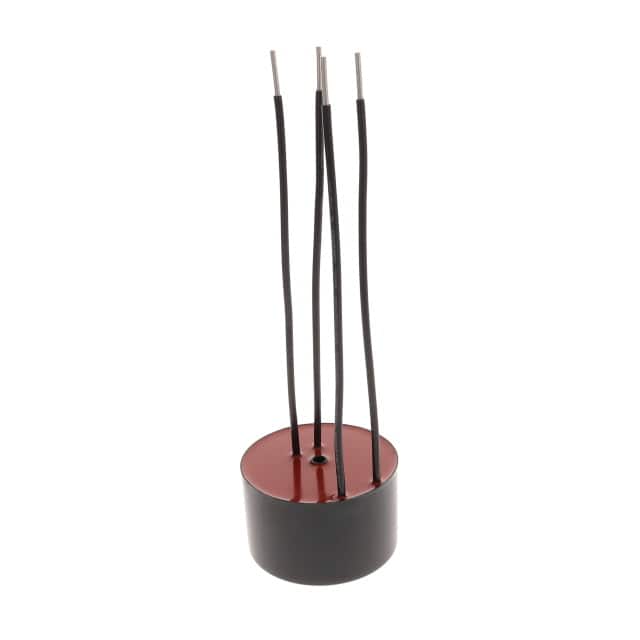

RD8127-25-5M0 CMC 5MH 25A 2LN TH Schaffner EMC Inc.	3,693	-	RFQ	Scheda tecnica	Tray	RD	Active	Power Line	2	-	5 mH @ 400 Hz	25A (Typ)	8.45mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	3.150 L x 3.150 W (80.00mm x 80.00mm)	1.988 (50.50mm)
RN212-0.5-02-15M CMC 15MH 500MA 2LN TH Schaffner EMC Inc.	496	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	500mA	700mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-0.5-02-15M CMC 15MH 500MA 2LN TH Schaffner EMC Inc.	173	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	15 mH @ 10 kHz	500mA	700mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN212-2-02-1M0 CMC 1MH 2A 2LN TH Schaffner EMC Inc.	508	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	1 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-2.6-02-0M4 CMC 400UH 2.6A 2LN TH Schaffner EMC Inc.	336	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	400 µH @ 10 kHz	2.6A	40mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN112-0.4-02-27M CMC 27MH 400MA 2LN TH Schaffner EMC Inc.	398	-	RFQ	Scheda tecnica	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	400mA	1.4Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
