Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX51/32/19-3C94 FERRITE CORES ROUND Ferroxcube	2,496	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 51 x 32 x 19	3C94	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)
TX107/65/18-3E27 FERRITE CORES ROUND Ferroxcube	2,800	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 107 x 65 x 18	3E27	4.228 (107.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.720 (18.30mm)
UR35/27.5/13-3C90 UR CORES Ferroxcube	239	-	RFQ	Scheda tecnica	Bulk	-	Active	UR	UR 35 x 27.5 x 13	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
RM7/I-3F36-A250 RM CORES 2PC SET Ferroxcube	474	-	RFQ	Scheda tecnica	Bulk	-	Active	RM	RM 7	3F36	-	250 nH	±3%	Gapped	135	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
PLT38/25/3.8-3C95 FERRITE CORE Ferroxcube	3,515	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

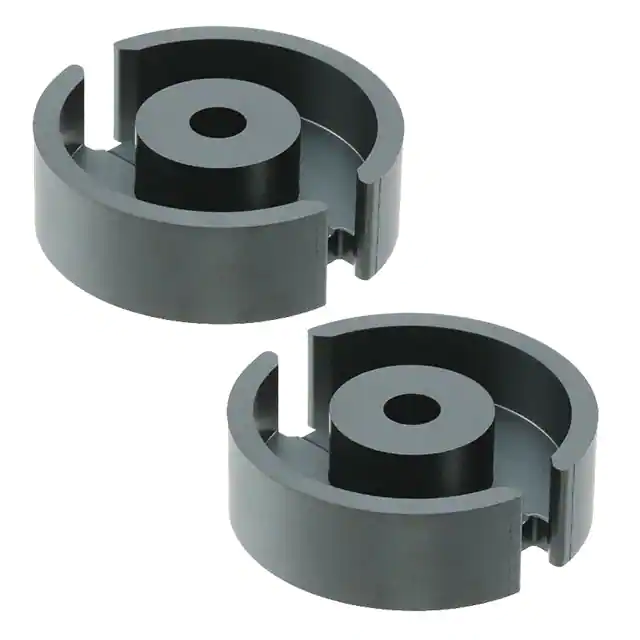

P36/22-3C91 FERRITE CORE 2PC SET Ferroxcube	3,197	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 36 x 22	3C91	1.425 (36.20mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.854 (21.70mm)
TX63/38/25-3E6 FERRITE CORES ROUND Ferroxcube	3,334	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	-	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.984 (25.00mm)
E16/8/5-3C94 FERRITE CORE Ferroxcube	2,383	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 16 x 8 x 5	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
TX13/7.9/6.4-3C94 FERRITE CORES ROUND Ferroxcube	2,977	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	3C94	0.526 (13.35mm)	-	±25%	Ungapped	2300	-	2.21	31.2	14.1	-	442	Epoxy	0.275 (7.00mm)
PLT14/5/1.5/S-3F36 FERRITE CORE Ferroxcube	2,944	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
TX22/14/6.4-3E6 FERRITE CORES ROUND Ferroxcube	2,730	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	-	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)

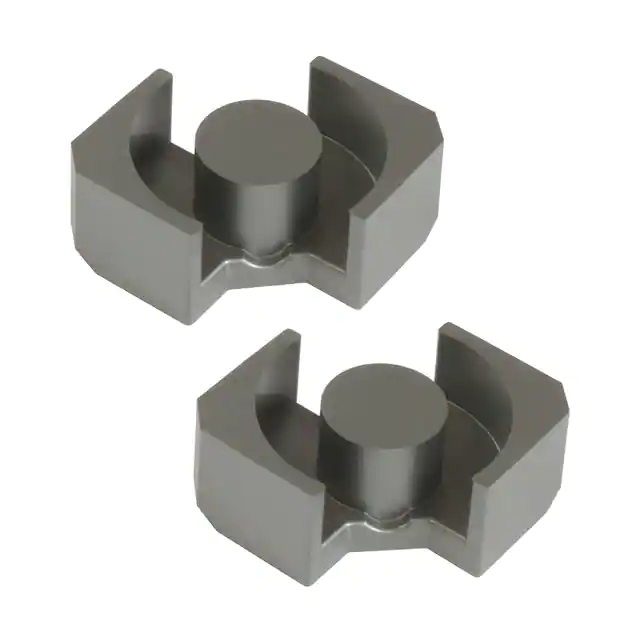

RM6S/I-3C95 FERRITE CORE 2PC SET Ferroxcube	3,839	-	RFQ	Scheda tecnica	Bulk	-	Active	RM	RM 6	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.488 (12.40mm)
TX10/6/4-4C65 FERRITE CORES ROUND Ferroxcube	3,416	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	4C65	-	-	-	Ungapped	-	-	3.07	24.1	7.8	-	3.07	Epoxy	0.167 (4.25mm)
E22/6/16/R-3F46 FERRITE CORE Ferroxcube	3,813	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 22 x 6 x 16	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
PQ20/20-3C95 FERRITE CORE 2PC SET Ferroxcube	2,478	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 20 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
P26/16-3C91 FERRITE CORE 2PC SET Ferroxcube	2,711	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 26 x 16	3C91	1.004 (25.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.634 (16.10mm)
E58/11/38-3C95 FERRITE CORE Ferroxcube	2,709	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 58 x 11 x 38	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
PQ40/40-3C96 PQ CORES 2PC SET Ferroxcube	3,798	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 40 x 40	3C96	-	-	±25%	Ungapped	1690	-	0.507	102	201	175	20500	Uncoated	1.567 (39.80mm)
PQ40/40-3C95 FERRITE CORE 2PC SET Ferroxcube	2,861	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 40 x 40	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567 (39.80mm)
PQ40/40-3C97 FERRITE CORE 2PC SET Ferroxcube	2,911	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 40 x 40	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.567 (39.80mm)
