Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX51/32/19-3E10-M FERRITE CORES ROUND Ferroxcube	3,933	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 51 x 32 x 19	-	2.069 (52.55mm)	-	±30%	Ungapped	9500	-	0.73	125	172	-	21500	Epoxy	0.783 (19.90mm)
TX55/32/18-3E10-M FERRITE CORES ROUND Ferroxcube	3,766	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 55 x 32 x 18	-	2.264 (57.50mm)	-	±30%	Ungapped	9500	-	0.651	132	202	-	26580	Epoxy	0.756 (19.20mm)
TX51/32/19-3C90 FERRITE CORES ROUND Ferroxcube	3,442	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 51 x 32 x 19	3C90	2.069 (52.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.783 (19.90mm)
TX80/40/15-3E10-M FERRITE CORES ROUND Ferroxcube	3,640	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 80 x 40 x 15	-	3.268 (83.00mm)	-	±20%	Ungapped	9500	-	0.604	174	288	-	50200	Epoxy	0.626 (15.90mm)

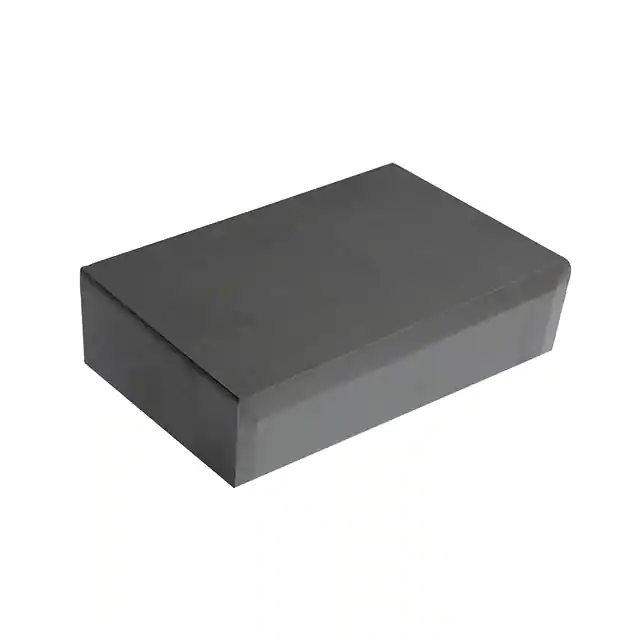

I100/25/25-3C94 FERRITE CORE Ferroxcube	2,584	-	RFQ	Scheda tecnica	Bulk	-	Active	I	I 100 x 25 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.000 (25.40mm)
T102/66/15-3C90 FERRITE CORES ROUND Ferroxcube	2,489	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	3C90	4.016 (102.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
U100/57/25-3C94 FERRITE CORE Ferroxcube	3,870	-	RFQ	Scheda tecnica	Bulk	-	Active	U	U 100 x 57 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.248 (57.10mm)
TX102/66/15-3C94 FERRITE CORES ROUND Ferroxcube	2,713	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	3C94	4.031 (102.40mm)	-	±25%	Ungapped	-	4300	0.956	255	267	-	68200	Epoxy	0.602 (15.30mm)

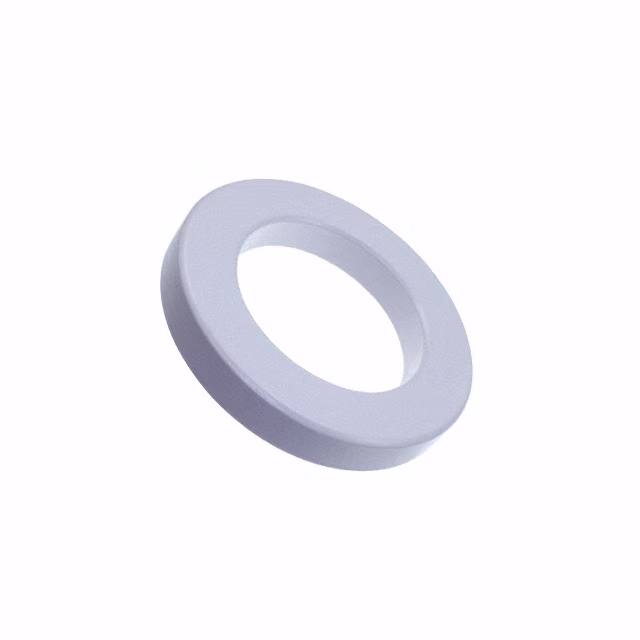

TX102/66/15-3C11 FERRITE CORES ROUND Ferroxcube	3,068	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	3C11	4.031 (102.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.602 (15.30mm)
E100/60/28-3C92 FERRITE CORE Ferroxcube	3,942	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 100 x 60 x 28	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.339 (59.40mm)
TX107/65/18-3C94 FERRITE CORES ROUND Ferroxcube	3,572	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 107 x 65 x 18	3C94	4.228 (107.40mm)	-	±25%	Ungapped	-	-	0.7	259	370	-	96000	Epoxy	0.720 (18.30mm)
T107/65/25-3C94 FERRITE CORES ROUND Ferroxcube	3,777	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	3C94	4.213 (107.00mm)	-	-	Ungapped	-	-	0.504	259	514	-	133000	Uncoated	0.984 (25.00mm)

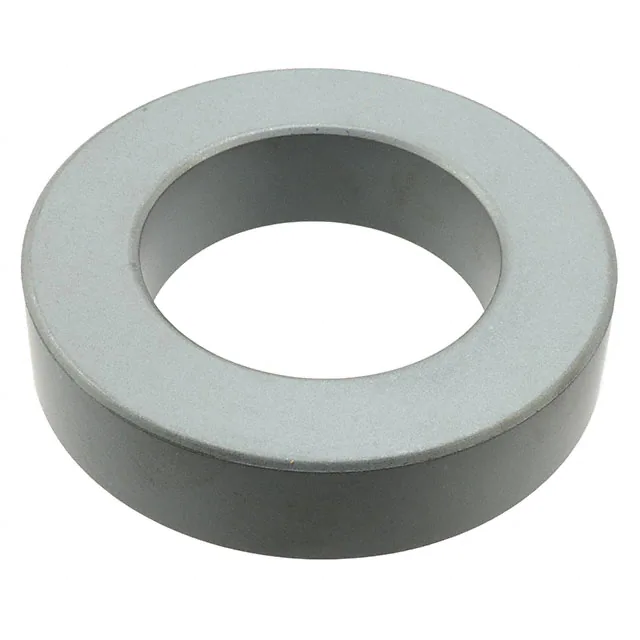

T107/65/25-3E27 FERRITE CORES ROUND Ferroxcube	2,785	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	-	3E27	4.213 (107.00mm)	-	-	Ungapped	-	-	0.504	259	514	-	133000	Uncoated	0.984 (25.00mm)
PM74/59-3C94 FERRITE CORE 2PC SET Ferroxcube	3,094	-	RFQ	Scheda tecnica	Bulk	-	Active	PM	PM 74 x 59	3C94	2.913 (74.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	2.323 (59.00mm)
TX140/106/25-3C94 FERRITE CORES ROUND Ferroxcube	2,600	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 140 x 106 x 25	3C94	5.528 (140.40mm)	-	±20%	Ungapped	-	2300	0.903	382	422	-	161100	Epoxy	0.996 (25.30mm)
TX16/9.1/4.7-3E65 FERRITE CORES ROUND Ferroxcube	649	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	-	0.635 (16.13mm)	-	±30%	Ungapped	-	10500	2.53	37.2	14.7	-	548	Epoxy	0.195 (4.95mm)
TX20/10/7-3E65 FERRITE CORES ROUND Ferroxcube	620	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	±30%	Ungapped	-	10000	1.3	43.6	33.6	-	1465	Epoxy	0.291 (7.40mm)
TX22/14/13-3E10-M FERRITE CORES ROUND Ferroxcube	693	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 13	-	0.880 (22.35mm)	-	-	Ungapped	-	-	1.07	54.2	50.9	-	2750	Epoxy	0.510 (12.95mm)
TX22/14/13-3E65 FERRITE CORES ROUND Ferroxcube	487	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 13	-	0.880 (22.35mm)	-	±30%	Ungapped	-	10300	1.07	54.2	50.9	-	2750	Epoxy	0.510 (12.95mm)
E41/17/12-3C92 FERRITE CORE Ferroxcube	272	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 41 x 17 x 12	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.654 (16.60mm)
