Altre categorie di prodotti

Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

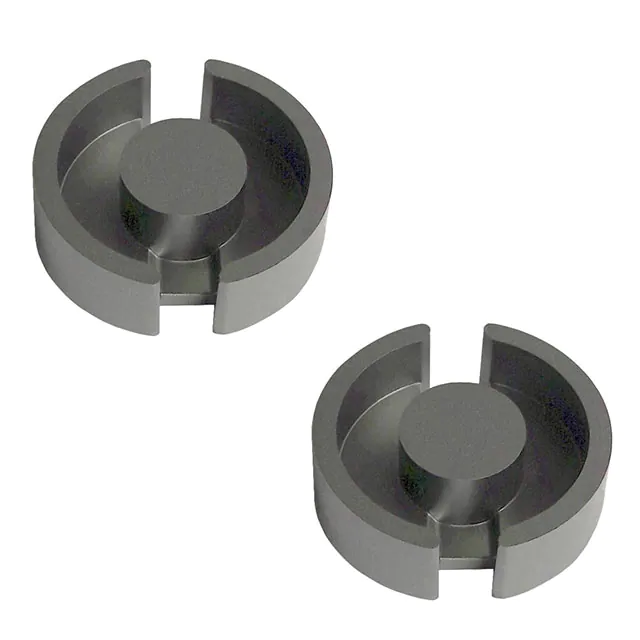

P18/11/I-3C91 FERRITE CORE 2PC SET Ferroxcube	2,192	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 18 x 11	3C91	0.701 (17.90mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.417 (10.60mm)
TX22/14/13-3E6 FERRITE CORES ROUND Ferroxcube	819	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 13	-	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.510 (12.95mm)
ETD39/20/13-3C97 FERRITE CORE Ferroxcube	3,543	-	RFQ	Scheda tecnica	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
EFD15/8/5-3F46-S FERRITE CORE 2PC SET Ferroxcube	3,984	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3F46	-	-	±25%	Ungapped	667	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
RM7/I-3C95 FERRITE CORE 2PC SET Ferroxcube	3,944	-	RFQ	Scheda tecnica	Bulk	-	Active	RM	RM 7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)
P9/5-3C91 FERRITE CORE 2PC SET Ferroxcube	3,368	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 9 x 5	3C91	0.366 (9.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.213 (5.40mm)
PLT38/25/2.7-3C95 FERRITE CORE Ferroxcube	2,473	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 38 x 25 x 2.7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.106 (2.70mm)
PLT38/25/3.8-3F4 FERRITE CORE Ferroxcube	2,818	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 38 x 25 x 3.8	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

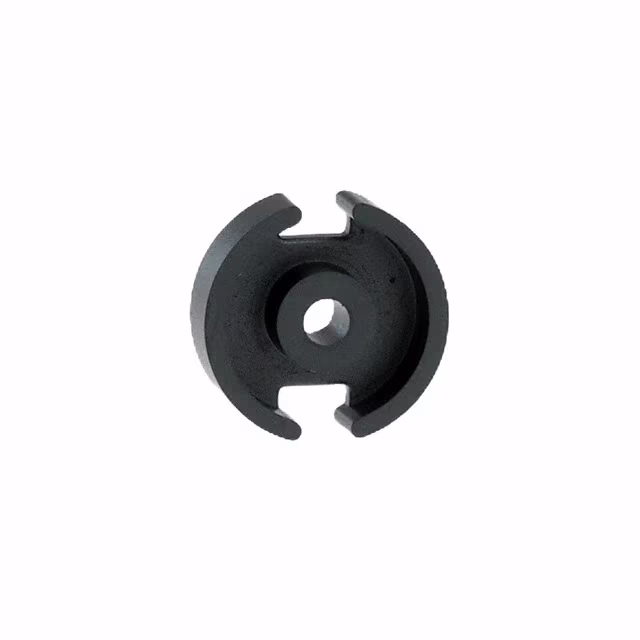

P11/7-3C91 FERRITE CORE 2PC SET Ferroxcube	2,672	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 11 x 7	3C91	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)
EQ38/8/25-3C95 FERRITE CORE Ferroxcube	2,513	-	RFQ	Scheda tecnica	Bulk	-	Active	EQ	EQ 38 x 8 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
P22/13/I-3F46 FERRITE CORE 2PC SET Ferroxcube	147	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 22 x 13	3F46	0.866 (22.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)
TX26/15/20-3E27 FERRITE CORES ROUND Ferroxcube	2,163	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 26 x 15 x 20	3E27	1.061 (26.95mm)	-	±25%	Ungapped	5500	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
TX36/23/15-3E10-M FERRITE CORES ROUND Ferroxcube	206	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 36 x 23 x 15	-	1.463 (37.15mm)	-	±30%	Ungapped	10000	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)
TX32/19/13-3E10-M FERRITE CORES ROUND Ferroxcube	299	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 32 x 19 x 13	-	1.281 (32.55mm)	-	±30%	Ungapped	10000	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)
TX36/23/15-3E27-M7 FERRITE CORES ROUND Ferroxcube	109	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3E27	1.463 (37.15mm)	-	±25%	Ungapped	7000	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)
P14/8-3D3 CORES 2PC SET Ferroxcube	2,751	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 14 x 8	-	0.563 (14.30mm)	1 µH	±25%	Ungapped	630	-	0.789	19.8	25.1	19.8	495	Uncoated	0.165 (4.20mm)
TX39/20/13-3E10-M FERRITE CORES ROUND Ferroxcube	174	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 39 x 20 x 13	-	1.567 (39.80mm)	-	±30%	Ungapped	10000	-	0.76	84.9	112	-	9513	Epoxy	0.535 (13.60mm)
TX36/23/15-3C94 FERRITE CORES ROUND Ferroxcube	127	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3C94	1.463 (37.15mm)	-	±25%	Ungapped	2300	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)
TX32/19/13-3C94 FERRITE CORES ROUND Ferroxcube	794	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 32 x 19 x 13	3C94	1.281 (32.55mm)	-	±25%	Ungapped	2300	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)
PQ26/25-3F36 FERRITE CORE 2PC SET Ferroxcube	2,105	-	RFQ	Scheda tecnica	Bulk	-	Active	PQ	PQ 26 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
