Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EQ13-3C95 FERRITE CORE Ferroxcube	2,489	-	RFQ	Scheda tecnica	Bulk	-	Active	EQ	EQ 13	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.112 (2.85mm)
TX16/9.6/6.3-3C94 FERRITE CORES ROUND Ferroxcube	2,684	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	3C94	0.640 (16.25mm)	-	±30%	Ungapped	-	-	1.95	38.5	19.7	-	760	Epoxy	0.258 (6.55mm)
E32/16/9-3C94 FERRITE CORE Ferroxcube	3,707	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 32 x 16 x 9	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
TX16/9.6/6.3-3E27 FERRITE CORES ROUND Ferroxcube	2,042	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	3E27	0.640 (16.25mm)	-	±30%	Ungapped	-	-	1.95	38.5	19.7	-	760	Epoxy	0.258 (6.55mm)
E32/16/9-3C92 FERRITE CORE Ferroxcube	2,072	-	RFQ	Scheda tecnica	Bulk	-	Active	E	E 32 x 16 x 9	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)
TX22/14/6.4-3C90 FERRITE CORES ROUND Ferroxcube	2,233	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3C90	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)
TX16/9.6/6.3-3E6 FERRITE CORES ROUND Ferroxcube	3,422	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 16 x 9.6 x 6.3	-	0.640 (16.25mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.258 (6.55mm)
ETD34/17/11-3C94 FERRITE CORE Ferroxcube	2,947	-	RFQ	Scheda tecnica	Bulk	-	Active	ETD	ETD 34 x 17 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
PLT20/14/2/S-3C95 FERRITE CORE Ferroxcube	2,090	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 20 x 14 x 2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
EFD25/13/9-3F46 FERRITE CORE Ferroxcube	3,757	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
EFD25/13/9-3F36 FERRITE CORE Ferroxcube	3,854	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)

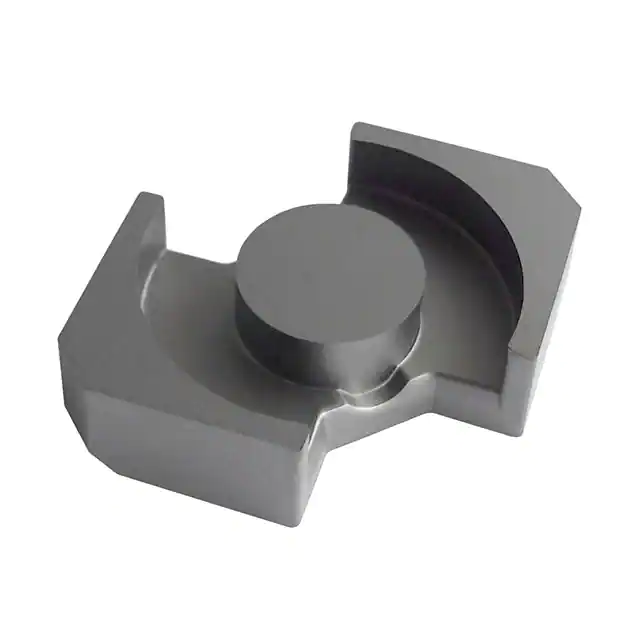

RM6S/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	3,982	-	RFQ	Scheda tecnica	Bulk	-	Active	RM	RM 6	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.354 (9.00mm)
TX22/14/6.4-3E65 FERRITE CORES ROUND Ferroxcube	2,994	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	-	0.880 (22.35mm)	-	±30%	Ungapped	-	5200	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)

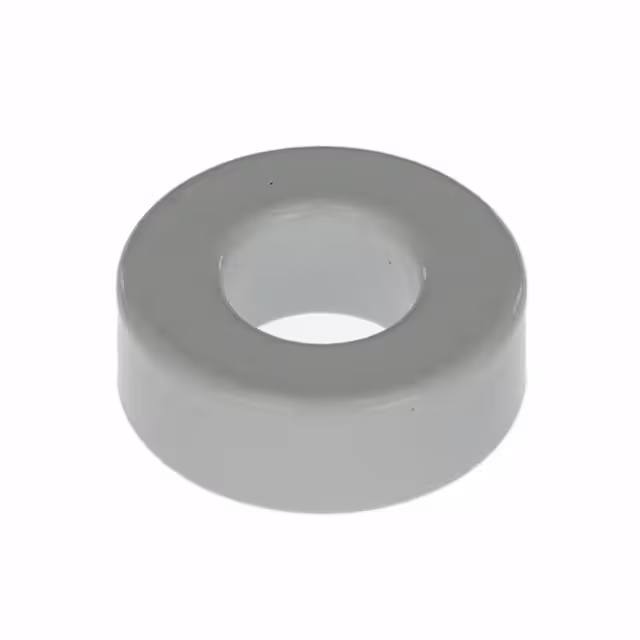

TX20/10/7-3E6 FERRITE CORES ROUND Ferroxcube	3,023	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.291 (7.40mm)
PLT25/18/2-3C95 FERRITE CORE Ferroxcube	2,135	-	RFQ	Scheda tecnica	Bulk	-	Active	PLT	PLT 25 x 18 x 2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)
EFD30/15/9-3C96 FERRITE CORE Ferroxcube	3,627	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
P14/8/I-3C91 FERRITE CORE 2PC SET Ferroxcube	3,313	-	RFQ	Scheda tecnica	Bulk	-	Active	P (Pot Core)	P 14 x 8	3C91	0.553 (14.05mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)
EFD30/15/9-3F36 FERRITE CORE Ferroxcube	3,563	-	RFQ	Scheda tecnica	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
TX25/15/10-3C90 FERRITE CORES ROUND Ferroxcube	3,350	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 25 x 15 x 10	3C90	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
TX25/15/10-3C94 FERRITE CORES ROUND Ferroxcube	2,448	-	RFQ	Scheda tecnica	Bulk	-	Active	Toroid	TX 25 x 15 x 10	3C94	1.007 (25.95mm)	-	±25%	Ungapped	2300	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)
