Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290L0743X065 FERRITE CORE TOROID 2.8UH T65 EPCOS - TDK Electronics	3,092	-	RFQ	Scheda tecnica	Bulk	TX16/9/5	Active	Toroid	-	T65	0.661 (16.80mm)	2.8 µH	±30%	Ungapped	-	5200	2.33	36.75	15.78	-	580	Epoxy	0.215 (5.45mm)
B66379G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	2,096	-	RFQ	Scheda tecnica	Box	E19/8/5	Active	E	E 19 x 8 x 5	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
B64290L0652X038 FERRITE CORE TOROID 6.28UH T38 EPCOS - TDK Electronics	2,250	-	RFQ	Scheda tecnica	Box	TX17.4/10.3/7	Active	Toroid	-	T38	0.717 (18.20mm)	6.28 µH	±30%	Ungapped	-	10000	2	42	21.04	-	884	Epoxy	0.307 (7.80mm)
B66314G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	3,423	-	RFQ	Scheda tecnica	Box	E21/9/5	Active	E	E 21 x 9 x 5	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.343 (8.70mm)
B65855A0063D038 FERRITE CORE EP 63NH T38 2PCS EPCOS - TDK Electronics	3,763	-	RFQ	Scheda tecnica	Box	B65855A	Not For New Designs	EP	EP 5	T38	-	63 nH	±8%	Gapped	158	-	3.14	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
B66310G0000X127 FERRITE CORES EPCOS - TDK Electronics	2,742	-	RFQ	Scheda tecnica	Box	E20/10/11	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66413U0100K197 FERRITE CORE EPCOS - TDK Electronics	3,380	-	RFQ	Scheda tecnica	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N97	-	-	-	Gapped	-	2300	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B66413U0160L197 FERRITE CORE EPCOS - TDK Electronics	3,873	-	RFQ	Scheda tecnica	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N97	-	-	-	Gapped	-	2300	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B66421G0000X135 FERRITE CORE EPCOS - TDK Electronics	3,491	-	RFQ	Scheda tecnica	Box	-	Not For New Designs	EFD	EFD 25 x 13 x 9	T35	-	-	-	-	-	6000	0.98	57	58	57	3310	Uncoated	0.492 (12.50mm)
B66434G0000X141 FERRITE CORE EPCOS - TDK Electronics	3,321	-	RFQ	Scheda tecnica	Box	EV15/9/7	Active	EV	EV 15 x 9 x 7	N41	-	-	-	-	-	2800	1.4	38.7	27.7	25.8	1070	Uncoated	0.354 (9.00mm)

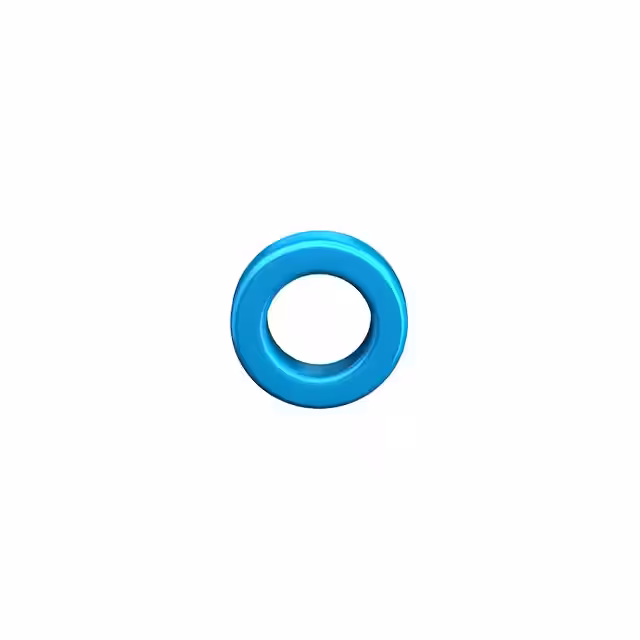

B64290L0644X087 R13.3/8.3/5 N87 TOROID EPCOS - TDK Electronics	3,072	-	RFQ	Scheda tecnica	Box	TX13.3/8.3/5	Active	Toroid	R 13.3 x 8.3 x 5	N87	0.567 (14.40mm)	1.04 µH	±25%	Ungapped	-	2200	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
B64290L0045X048 FERRITE CORE EPCOS - TDK Electronics	3,538	-	RFQ		Box	TX16/9.6/6.3	Active	Toroid	-	N48	-	-	-	Gapped	-	2300	-	-	-	-	-	Epoxy	-
B66411G0000X197 FERRITE CORES EPCOS - TDK Electronics	2,889	-	RFQ	Scheda tecnica	Tape & Reel (TR)	EFD10/5/3	Active	EFD	EFD 10/5/3	N97	-	-	-20%, +30%	Ungapped	1200	-	3.21	23.1	7.2	6.5	166	Uncoated	0.205 (5.20mm)
B66311G0000X135 FERRITE CORE EPCOS - TDK Electronics	2,718	-	RFQ	Scheda tecnica	Box	E20/10/6	Active	E	E 20 x 10 x 6	T35	-	-	-	-	-	6000	1.44	46.3	32.1	31.9	1490	Uncoated	0.398 (10.10mm)
B64290L0761X046 FERRITE CORE EPCOS - TDK Electronics	2,245	-	RFQ	Scheda tecnica	Box	TX15.8/8.9/5.2	Active	Toroid	-	T46	-	-	-	Gapped	-	15000	-	-	-	-	-	Epoxy	-
B66434G0000X197 FERRITE CORE EV N97 1PC EPCOS - TDK Electronics	3,881	-	RFQ	Scheda tecnica	Box	EV15/9/7	Active	EV	EV 15 x 9 x 7	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.354 (9.00mm)
B65855A0000R087 FERRITE CORE EP 430NH N87 2PCS EPCOS - TDK Electronics	3,522	-	RFQ	Scheda tecnica	Box	EP5	Active	EP	EP 5	N87	-	430 nH	-20%, +30%	Ungapped	1100	2200	3.14	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
B65857A0000R087 FERRITE CORE EPCOS - TDK Electronics	3,868	-	RFQ	Scheda tecnica	Box	EPX7/9	Active	EPX	EPX 7 x 9	N87	-	-	-	-	-	2200	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)
B64290A0037X001 FERRITE CORE TOROID 20NH K1 EPCOS - TDK Electronics	3,065	-	RFQ	Scheda tecnica	Box	T6.3/3.8/2.5	Active	Toroid	R 6.3 x 3.8 x 2.5	K1	0.248 (6.30mm)	20 nH	±25%	Ungapped	-	80	4.97	15.21	3.06	-	46.5	Uncoated	0.098 (2.50mm)
B66417U0100K149 FERRITE CORE EPCOS - TDK Electronics	3,380	-	RFQ	Scheda tecnica	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N49	-	-	-	Gapped	-	1500	1.52	47	31	31	1460	Uncoated	0.394 (10.00mm)
