Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65857C0000R087 FERRITE CORE EPCOS - TDK Electronics	2,824	-	RFQ	Scheda tecnica	Box	EPX9/9	Active	EPX	EPX 7 x 9	N87	-	-	-	-	-	2200	0.91	15.7	17.2	13.9	270	Uncoated	0.148 (3.75mm)
B66411G0000X149 FERRITE CORE EFD N49 1PC EPCOS - TDK Electronics	3,317	-	RFQ	Scheda tecnica	Box	EFD10/5/3	Active	EFD	EFD 10 x 5 x 3	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.205 (5.20mm)
B65839A0100J087 FERRITE CORE EPCOS - TDK Electronics	3,160	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N87	-	-	-	Gapped	-	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0100A087 FERRITE CORE EP 100NH N87 2PCS EPCOS - TDK Electronics	3,656	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N87	-	100 nH	±3%	Gapped	121	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0125B087 FERRITE CORE EPCOS - TDK Electronics	3,999	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N87	-	-	-	Gapped	-	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0160J087 FERRITE CORE EP 160NH N87 2PCS EPCOS - TDK Electronics	3,027	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N87	-	160 nH	±5%	Gapped	194	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0250E087 FERRITE CORE EP 250NH N87 2PCS EPCOS - TDK Electronics	3,136	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N87	-	250 nH	±7%	Gapped	303	2200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B64290L0652X037 FERRITE CORE TOROID 4.08UH T37 EPCOS - TDK Electronics	3,586	-	RFQ	Scheda tecnica	Box	TX17.4/10.3/7	Active	Toroid	-	T37	0.717 (18.20mm)	4.08 µH	±25%	Ungapped	-	6500	2	42	21.04	-	884	Epoxy	0.307 (7.80mm)
B65839A0000R065 FERRITE CORE EP 3UH T65 2PCS EPCOS - TDK Electronics	2,134	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	T65	-	3 µH	-20%, +30%	Ungapped	3640	5200	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65924A0000X022 FERRITE CORES EPCOS - TDK Electronics	2,095	-	RFQ		Box	PS8.6/3.3	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66317G0000X197 FERRITE CORE EPCOS - TDK Electronics	3,806	-	RFQ	Scheda tecnica	Box	E25/13/7	Active	E	E 25 x 13 x 7	N97	-	1.95 µH	-20%, +30%	Ungapped	1700	2300	1.1	57.5	52.5	51.5	3020	Uncoated	0.504 (12.80mm)
B65935J0000X022 FERRITE CORE EPCOS - TDK Electronics	3,699	-	RFQ		Box	PS9.4/2.8	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65525J0125J087 FERRITE CORE EPCOS - TDK Electronics	3,720	-	RFQ	Scheda tecnica	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	-	-	Gapped	-	2200	1.1	14.1	12.4	10.3	174	Uncoated	0.098 (2.50mm)
B66317U0150D197 FERRITE CORE EPCOS - TDK Electronics	3,016	-	RFQ		Box	E25/13/7	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B65839A0100J030 FERRITE CORE EPCOS - TDK Electronics	2,810	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N30	-	-	-	Gapped	-	4300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B65839A0250J030 FERRITE CORE EPCOS - TDK Electronics	3,135	-	RFQ	Scheda tecnica	Box	EP7	Active	EP	EP 7	N30	-	-	-	Gapped	-	4300	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)

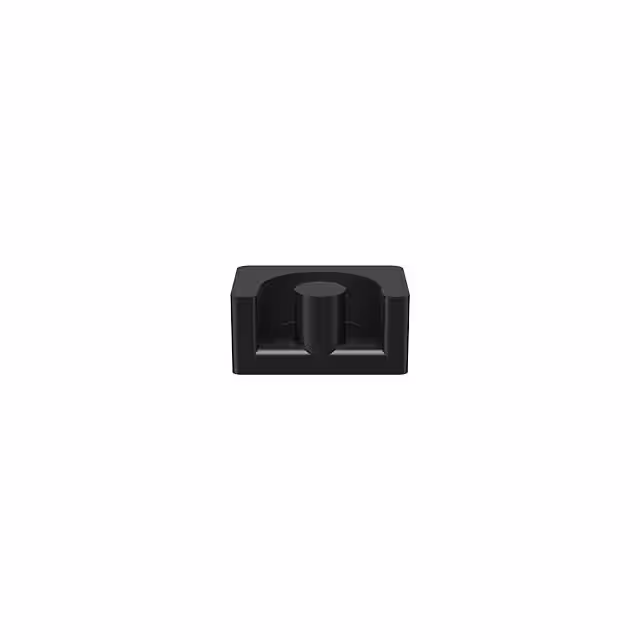

B65855B0000R092 FERRITE CORE EPCOS - TDK Electronics	2,762	-	RFQ	Scheda tecnica	Box	EP6	Active	EP	EP 5	N92	-	-	-	-	-	1500	3.149	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
B65855A0000R092 FERRITE CORE EPCOS - TDK Electronics	3,485	-	RFQ	Scheda tecnica	Box	EP5	Active	EP	EP 5	N92	-	350 nH	-20%, +30%	Ungapped	880	1500	3.149	9.73	3.09	2.3	30	Uncoated	0.112 (2.85mm)
B65661W0000R087 FERRITE CORE P 4.4UH N87 2PCS EPCOS - TDK Electronics	2,179	-	RFQ	Scheda tecnica	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N87	0.866 (22.00mm)	4.4 µH	-20%, +30%	Ungapped	1600	2200	0.46	33.2	72.6	58.1	2410	Uncoated	0.268 (6.80mm)
B65811J0000R035 FERRITE CORE EPCOS - TDK Electronics	3,635	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
