Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65805N0063A033 FERRITE CORE RM 63NH M33 2PCS EPCOS - TDK Electronics	3,089	-	RFQ	Scheda tecnica	Box	RM5	Active	RM	RM 5	M33	-	63 nH	±3%	Gapped	50.2	750	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
B66325G0100X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,703	-	RFQ	Scheda tecnica	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66325G0250X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,131	-	RFQ	Scheda tecnica	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66325G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,547	-	RFQ	Scheda tecnica	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66325G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,342	-	RFQ	Scheda tecnica	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66325G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,068	-	RFQ	Scheda tecnica	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B65491C0000Y033 FERRITE CORE P M33 2PCS EPCOS - TDK Electronics	2,317	-	RFQ	Scheda tecnica	Box	P3.3/2.6	Active	P (Pot Core)	P 3.3 x 2.6	M33	0.132 (3.35mm)	-	-	Ungapped	-	-	3.72	5.1	1.37	-	7	Uncoated	0.051 (1.29mm)
B65807C0000Y038 FERRITE CORE EPCOS - TDK Electronics	2,942	-	RFQ		Box	RM6	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65531T0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	3,575	-	RFQ	Scheda tecnica	Box	P11/7	Active	P (Pot Core)	P 11 x 7	N48	0.445 (11.30mm)	160 nH	±3%	Gapped	127	-	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B65531T0000R048 FERRITE CORE EPCOS - TDK Electronics	3,047	-	RFQ	Scheda tecnica	Box	P11/7	Active	-	P 11 x 7	N48	0.445 (11.30mm)	-	-	-	-	2300	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)

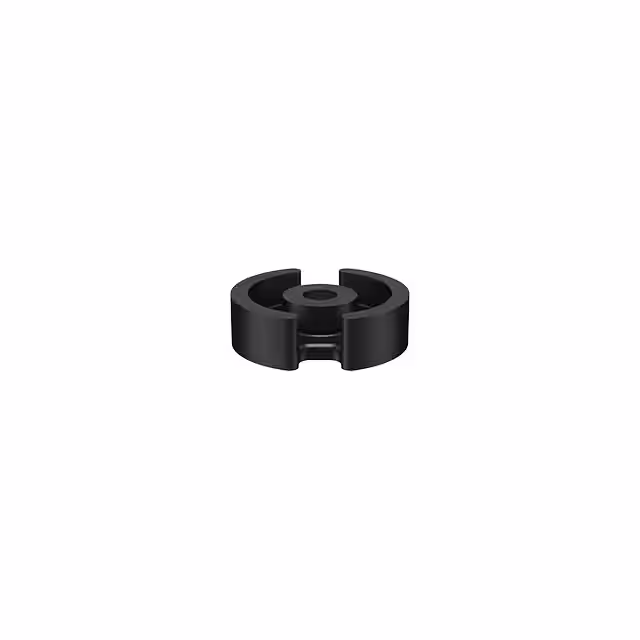

B65517D0025A001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,576	-	RFQ	Scheda tecnica	Box	P9/5	Active	P (Pot Core)	P 9 x 5	K1	0.366 (9.30mm)	25 nH	±3%	Gapped	25	80	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517D0040A001 FERRITE CORE P 40NH K1 2PCS EPCOS - TDK Electronics	3,609	-	RFQ	Scheda tecnica	Box	P9/5	Active	P (Pot Core)	P 9 x 5	K1	0.366 (9.30mm)	40 nH	±3%	Gapped	40	80	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65819P0000R092 FERRITE CORE RM 2.6UH N92 2PCS EPCOS - TDK Electronics	3,319	-	RFQ	Scheda tecnica	Box	RM7/LP	Active	RM	RM 7 LP	N92	-	2.6 µH	-20%, +30%	Ungapped	1070	1500	0.52	23.5	45.3	39.6	1060	Uncoated	0.193 (4.90mm)
B65807P0000Y038 FERRITE CORE RM 10.5UH T38 2PCS EPCOS - TDK Electronics	3,297	-	RFQ	Scheda tecnica	Box	RM6	Active	RM	RM 6 LP	T38	-	10.5 µH	-30%, +40%	Ungapped	4860	2300	0.58	21.8	37.5	31.2	820	Uncoated	0.177 (4.50mm)
B65811J0250A041 FERRITE CORE EPCOS - TDK Electronics	3,377	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0400J041 FERRITE CORE EPCOS - TDK Electronics	2,523	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0040A041 FERRITE CORE EPCOS - TDK Electronics	2,485	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0630J041 FERRITE CORE RM 630NH N41 2PCS EPCOS - TDK Electronics	2,855	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N41	-	630 nH	±5%	Gapped	298	2800	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

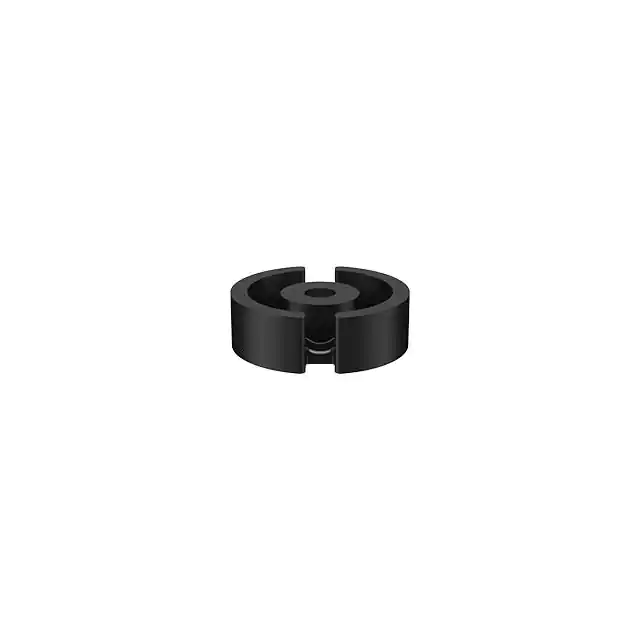

B65611W0000R087 FERRITE CORE EPCOS - TDK Electronics	3,703	-	RFQ	Scheda tecnica	Box	P36/22	Active	-	P 36 x 22	N87	1.417 (36.00mm)	8 µH	-20%, +30%	Ungapped	1600	2200	0.25	53.5	213	173	11400	Uncoated	0.433 (11.00mm)
B64290L0659X048 FERRITE CORE EPCOS - TDK Electronics	3,552	-	RFQ	Scheda tecnica	Box	TX40/24/16	Active	Toroid	-	N48	-	-	-	Gapped	-	2300	-	-	-	-	-	Epoxy	-
