Altre categorie di prodotti

Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65661D0250A087 FERRITE CORE EPCOS - TDK Electronics	3,078	-	RFQ	Scheda tecnica	Box	P23/13	Active	-	P 22 x 13	N87	0.866 (22.00mm)	-	-	Gapped	-	2200	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B64290L0787X087 FERRITE CORE EPCOS - TDK Electronics	3,725	-	RFQ	Scheda tecnica	Box	TX29.5/19/7.5	Active	Toroid	-	N87	-	-	-	Gapped	-	2200	-	-	-	-	-	Epoxy	-
B66347G0000X127 FERRITE CORE ER N27 1PC EPCOS - TDK Electronics	2,301	-	RFQ	Scheda tecnica	Box	ER42/22/15	Active	ER	ER 42 x 22 x 15	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.858 (21.80mm)
B66363G0000X192 FERRITE CORE EPCOS - TDK Electronics	2,301	-	RFQ	Scheda tecnica	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N92	-	-	-	-	-	1500	0.74	92.2	125	123	11500	Uncoated	0.787 (20.00mm)
B66329G1000X187 FERRITE CORE EPCOS - TDK Electronics	3,237	-	RFQ	Scheda tecnica	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)
B65531D0025A001 FERRITE CORE P 25NH K1 2PCS EPCOS - TDK Electronics	3,696	-	RFQ	Scheda tecnica	Box	P11/7	Active	P (Pot Core)	P 11 x 7	K1	0.445 (11.30mm)	25 nH	±3%	Gapped	20	80	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B65531D0040A001 FERRITE CORE P 40NH K1 2PCS EPCOS - TDK Electronics	2,770	-	RFQ	Scheda tecnica	Box	P11/7	Active	P (Pot Core)	P 11 x 7	K1	0.445 (11.30mm)	40 nH	±3%	Gapped	32	80	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B64290L0756X087 FERRITE CORE EPCOS - TDK Electronics	3,493	-	RFQ	Scheda tecnica	Box	TX29.5/19/20	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66341G0000X127 FERRITE CORES EPCOS - TDK Electronics	3,183	-	RFQ	Scheda tecnica	Tape & Reel (TR)	EC52/24/14	Active	EC	EC 52/24/14	N27	-	-	-20%, +30%	Ungapped	1570	-	0.58	105	180	141	18900	Uncoated	0.959 (24.35mm)

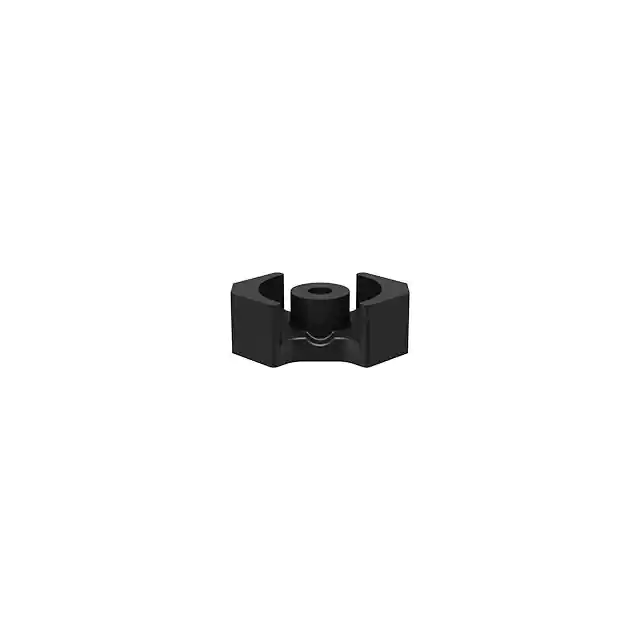

B65819N0315A048 FERRITE CORE EPCOS - TDK Electronics	2,479	-	RFQ	Scheda tecnica	Box	RM7	Active	RM	RM 7	N48	-	-	-	Gapped	-	2300	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
B65813J1000K087 FERRITE CORE EPCOS - TDK Electronics	2,757	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0315A087 FERRITE CORE EPCOS - TDK Electronics	2,348	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0400A087 FERRITE CORE EPCOS - TDK Electronics	3,471	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0400J087 FERRITE CORE EPCOS - TDK Electronics	2,310	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0630A087 FERRITE CORE EPCOS - TDK Electronics	3,135	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0630J087 FERRITE CORE EPCOS - TDK Electronics	2,748	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0063A087 FERRITE CORE EPCOS - TDK Electronics	2,334	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)

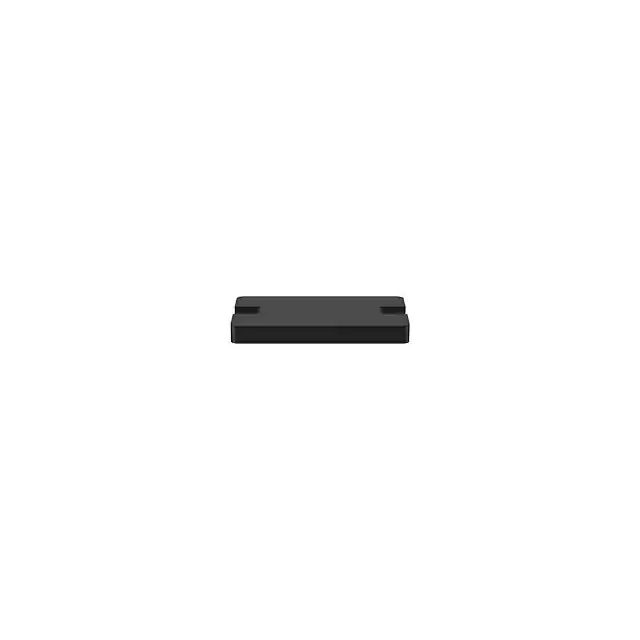

B66287K0000X197 I FERRITE CORES EPCOS - TDK Electronics	3,425	-	RFQ	Scheda tecnica	Tape & Reel (TR)	I32/3/20	Active	I	I 32 x 3 x 20	N97	-	-	±0.25%	-	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B65651T0000R030 FERRITE CORE EPCOS - TDK Electronics	2,741	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	N30	0.724 (18.40mm)	-	-	-	-	4300	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65819N0160A048 FERRITE CORE EPCOS - TDK Electronics	2,032	-	RFQ	Scheda tecnica	Box	RM7	Active	RM	RM 7	N48	-	-	-	Gapped	-	2300	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
