Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65651W0315A087 FERRITE CORE EPCOS - TDK Electronics	3,689	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	N87	0.724 (18.40mm)	-	-	Gapped	-	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
B66365G0200X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,224	-	RFQ	Scheda tecnica	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66365G0050X127 FERRITE CORE EPCOS - TDK Electronics	2,345	-	RFQ	Scheda tecnica	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Gapped	-	2000	0.6	103	173	172	17800	Uncoated	0.886 (22.50mm)

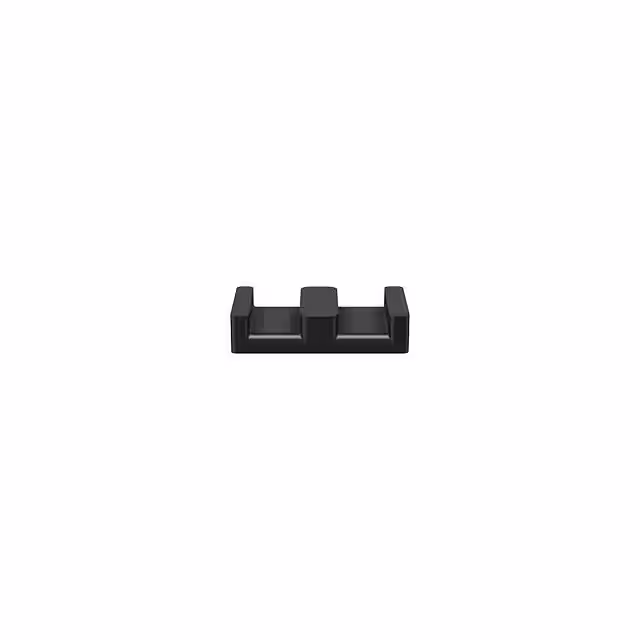

B66291G0100X187 ELP43/10/28 N87 GAP 0.1 MM EPCOS - TDK Electronics	2,054	-	RFQ	Scheda tecnica	Bulk	ELP43/10/28	Not For New Designs	ELP	ELP 43 x 10 x 28	N87	-	7.3 µH	±25%	Gapped	1560	-	0.27	61.1	225	225	14000	Uncoated	0.374 (9.50mm)
B65651D0500A048 FERRITE CORE P 500NH N48 2PCS EPCOS - TDK Electronics	3,237	-	RFQ	Scheda tecnica	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	500 nH	±3%	Gapped	240	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651D0630K048 FERRITE CORE EPCOS - TDK Electronics	2,020	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	N48	0.724 (18.40mm)	-	-	Gapped	-	2300	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65651D0000Y038 FERRITE CORE EPCOS - TDK Electronics	2,389	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	T38	0.724 (18.40mm)	-	-	-	-	10000	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65738L0000R087 FERRITE CORES EPCOS - TDK Electronics	2,265	-	RFQ	Scheda tecnica	Box	PTS23/11	Active	-	-	N87	-	-	-	-	-	2200	0.62	45.1	73.1	67.4	3293	Uncoated	0.362 (9.20mm)
B65811D1000K048 FERRITE CORE EPCOS - TDK Electronics	2,480	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811D0160A048 FERRITE CORE EPCOS - TDK Electronics	2,981	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811D0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	3,464	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N48	-	250 nH	±3%	Gapped	134	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
B65811D0315A048 FERRITE CORE RM 315NH N48 2PCS EPCOS - TDK Electronics	2,377	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N48	-	315 nH	±3%	Gapped	169	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
B65811J0160A048 FERRITE CORE EPCOS - TDK Electronics	3,492	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811J0315A048 FERRITE CORE RM 315NH N48 2PCS EPCOS - TDK Electronics	2,330	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N48	-	315 nH	±3%	Gapped	169	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,176	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N48	-	400 nH	±3%	Gapped	215	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0630J048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	2,887	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	RM 8	N48	-	630 nH	±5%	Gapped	338	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65813J0000R035 FERRITE CORE EPCOS - TDK Electronics	2,694	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	T35	-	-	-	-	-	6000	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65811P0160A049 FERRITE CORE EPCOS - TDK Electronics	2,936	-	RFQ	Scheda tecnica	Box	RM8/LP	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-

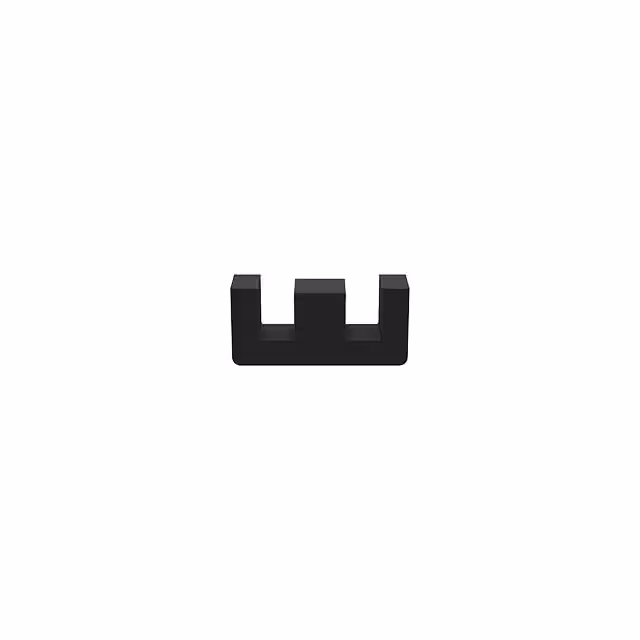

B66383G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,197	-	RFQ	Scheda tecnica	Box	E47/20/16	Active	E	E 47 x 20 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
B64290L0674X027 FERRITE CORE EPCOS - TDK Electronics	3,177	-	RFQ	Scheda tecnica	Box	TX36/23/15	Active	Toroid	-	N27	-	-	-	Gapped	-	2000	-	-	-	-	-	Epoxy	-
