Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65819N0063A033 FERRITE CORE EPCOS - TDK Electronics	3,602	-	RFQ	Scheda tecnica	Box	RM7	Active	RM	RM 7	M33	-	-	-	Gapped	-	750	0.75	29.8	40	-	1190	Uncoated	0.265 (6.75mm)
B66367G3000X187 FERRITE CORE EPCOS - TDK Electronics	2,237	-	RFQ	Scheda tecnica	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	2200	0.54	114	211	209	24100	Uncoated	0.980 (24.90mm)
B65811F0250A041 FERRITE CORE EPCOS - TDK Electronics	3,480	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B66365G0000X195 FERRITE CORE ETD N95 1PC EPCOS - TDK Electronics	2,689	-	RFQ	Scheda tecnica	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B65671D0000R030 FERRITE CORE P 9.7UH N30 2PCS EPCOS - TDK Electronics	3,809	-	RFQ	Scheda tecnica	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N30	1.024 (26.00mm)	9.7 µH	-20%, +30%	Ungapped	2860	4300	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65813J0063A097 FERRITE CORE EPCOS - TDK Electronics	3,800	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N97	-	-	-	Gapped	-	2300	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)

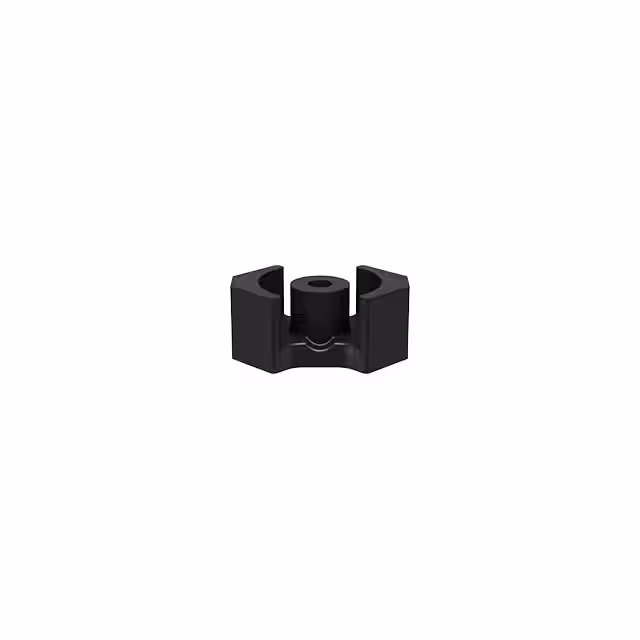

B65813D0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,737	-	RFQ	Scheda tecnica	Box	RM10	Active	RM	RM 10	N48	-	400 nH	±3%	Gapped	161	-	0.5	42	83	-	3490	Uncoated	0.368 (9.35mm)
B65661D1250K048 FERRITE CORE EPCOS - TDK Electronics	2,401	-	RFQ	Scheda tecnica	Box	P23/13	Active	-	P 22 x 13	N48	0.866 (22.00mm)	1.25 µH	±10%	Gapped	499	2300	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661D0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	2,797	-	RFQ	Scheda tecnica	Box	P23/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	160 nH	±3%	Gapped	64	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65661D0250A048 FERRITE CORE P 250NH N48 2PCS EPCOS - TDK Electronics	2,781	-	RFQ	Scheda tecnica	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	250 nH	±3%	Gapped	100	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65651D0000R033 FERRITE CORE EPCOS - TDK Electronics	3,912	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	M33	0.724 (18.40mm)	-	-	-	-	750	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B65815E1000J087 FERRITE CORE EPCOS - TDK Electronics	2,873	-	RFQ	Scheda tecnica	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65815E0630J087 FERRITE CORE EPCOS - TDK Electronics	2,630	-	RFQ	Scheda tecnica	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65815E0063A087 FERRITE CORE EPCOS - TDK Electronics	2,531	-	RFQ	Scheda tecnica	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65811F0100A048 FERRITE CORE EPCOS - TDK Electronics	2,764	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811F0160A048 FERRITE CORE EPCOS - TDK Electronics	2,229	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B65811F0500A048 FERRITE CORE EPCOS - TDK Electronics	2,851	-	RFQ	Scheda tecnica	Box	RM8	Active	RM	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	-
B64290A0674X830 FERRITE CORE TOROID 5.63UH N30 EPCOS - TDK Electronics	3,300	-	RFQ	Scheda tecnica	Box	T36/23/15	Active	Toroid	R 36 x 23 x 15	N30	1.417 (36.00mm)	5.75 µH	±25%	Ungapped	-	4300	0.94	89.65	95.89	-	8597	Uncoated	0.591 (15.00mm)
B65664D0000R049 FERRITE CORES EPCOS - TDK Electronics	3,929	-	RFQ		Box	P22/13	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B65665D0000R049 FERRITE CORE EPCOS - TDK Electronics	2,227	-	RFQ		Box	P22/9	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
