Nuclei di ferrite

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65671D0000R041 FERRITE CORE EPCOS - TDK Electronics	3,347	-	RFQ	Scheda tecnica	Box	P26/16	Active	-	P 26 x 16	N41	1.024 (26.00mm)	-	-	-	-	2800	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65651T0063A033 FERRITE CORE EPCOS - TDK Electronics	3,168	-	RFQ	Scheda tecnica	Box	P18/11	Active	-	P 18 x 11	M33	0.724 (18.40mm)	-	-	Gapped	-	750	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
B66335G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,027	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B66335G2000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,805	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B65665D1025K049 FERRITE CORE EPCOS - TDK Electronics	3,705	-	RFQ		Box	P22/13	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66343G0250X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	3,511	-	RFQ	Scheda tecnica	Box	B66343	Not For New Designs	EC	EC 70 x 35 x 16	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.364 (34.65mm)
B66343G0500X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	2,447	-	RFQ	Scheda tecnica	Box	B66343	Not For New Designs	EC	EC 70 x 35 x 16	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.364 (34.65mm)
B65803N0016A001 FERRITE CORE RM 16NH K1 2PCS EPCOS - TDK Electronics	2,071	-	RFQ	Scheda tecnica	Box	RM4	Active	RM	RM 4	K1	-	16 nH	±3%	Gapped	24.2	80	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B65803N0025A001 FERRITE CORE RM 25NH K1 2PCS EPCOS - TDK Electronics	3,279	-	RFQ	Scheda tecnica	Box	RM4	Active	RM	RM 4	K1	-	25 nH	±3%	Gapped	37.8	80	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)
B65701D0000R087 FERRITE CORE P 6.4UH N87 2PCS EPCOS - TDK Electronics	2,812	-	RFQ	Scheda tecnica	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N87	1.200 (30.50mm)	6.4 µH	-20%, +30%	Ungapped	1620	2200	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
B65815ER95 FERRITE CORES EPCOS - TDK Electronics	3,798	-	RFQ	Scheda tecnica	Tape & Reel (TR)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

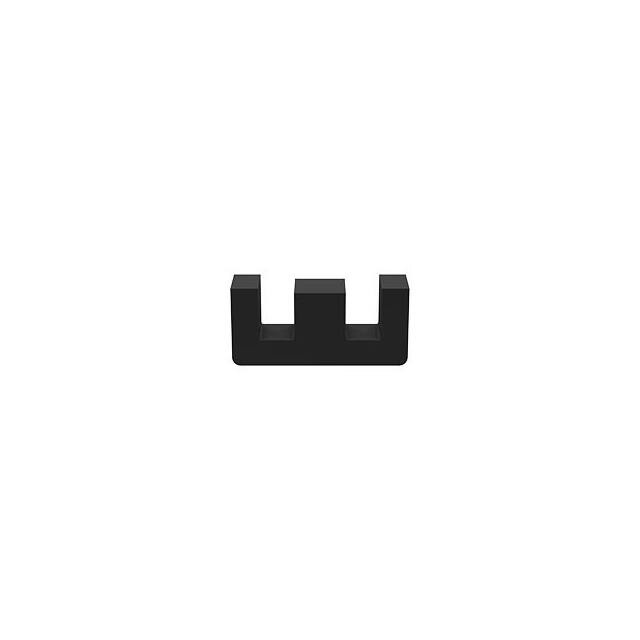

B66329G0000X195 FERRITE CORE E N95 1PC EPCOS - TDK Electronics	3,159	-	RFQ	Scheda tecnica	Box	E42/21/20	Active	E	E 42 x 21 x 20	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B65671D1000J048 FERRITE CORE P 1UH N48 2PCS EPCOS - TDK Electronics	2,882	-	RFQ	Scheda tecnica	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	1 µH	±5%	Gapped	318	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671D0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	3,933	-	RFQ	Scheda tecnica	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	630 nH	±3%	Gapped	201	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
B65671W0840A048 FERRITE CORE EPCOS - TDK Electronics	3,017	-	RFQ	Scheda tecnica	Box	P26/16	Active	-	P 26 x 16	N48	1.024 (26.00mm)	-	-	Gapped	-	2300	0.37	40	108	87	4320	Uncoated	0.321 (8.15mm)
B66335G0125X187 FERRITE CORE EPCOS - TDK Electronics	3,037	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	2200	0.35	124	354	351	43900	Uncoated	1.094 (27.80mm)
B66335G2500X187 FERRITE CORE EPCOS - TDK Electronics	3,047	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	2200	0.35	124	354	351	43900	Uncoated	1.094 (27.80mm)
B66335G0060X187 FERRITE CORE EPCOS - TDK Electronics	2,127	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	2200	0.35	124	354	351	43900	Uncoated	1.094 (27.80mm)
B66335G1500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,492	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B66335G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,077	-	RFQ	Scheda tecnica	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
