Illuminazione LED - COB, motori, moduli, strisce

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRC-35G4000-C-83 VERO 18C WARM WHITE LED ARRAY Bridgelux	2,155	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® 18 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	5384lm (Typ)	1.05A	25°C	33.9V	151 lm/W	3A	90	120°	-	36.20mm Dia	1.80mm	18.50mm Dia
BXRC-27G40H0-C-83 VERO 18C WARM WHITE LED ARRAY Bridgelux	2,978	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	5184lm (Typ)	1.05A	25°C	33.9V	146 lm/W	3A	90	120°	-	36.20mm Dia	1.80mm	18.50mm Dia
BXRC-27E4000-C-83 VERO 18C WARM WHITE LED ARRAY Bridgelux	2,349	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	6024lm (Typ)	1.05A	25°C	33.9V	169 lm/W	3A	80	120°	-	36.20mm Dia	1.80mm	18.50mm Dia
BXRC-30G40H0-C-83 VERO 18C WARM WHITE LED ARRAY Bridgelux	3,312	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	5440lm (Typ)	1.05A	25°C	33.9V	153 lm/W	3A	90	120°	-	36.20mm Dia	1.80mm	18.50mm Dia
BXRC-40G4000-C-83 VERO 18C NEUTRAL WHITE LED ARRAY Bridgelux	2,890	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® 18 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	5496lm (Typ)	1.05A	25°C	33.9V	154 lm/W	3A	90	120°	-	36.20mm Dia	1.80mm	18.50mm Dia
BXRC-27E4000-C-83-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	100	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	5945lm (Typ)	1.05A	25°C	33.9V	167 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-50G4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	100	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	5685lm (Typ)	1.05A	25°C	33.9V	160 lm/W	3A	90	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-30C4001-C-84-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	100	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 4-Step MacAdam Ellipse	-	Round	6614lm (Typ)	1.05A	25°C	33.9V	186 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia

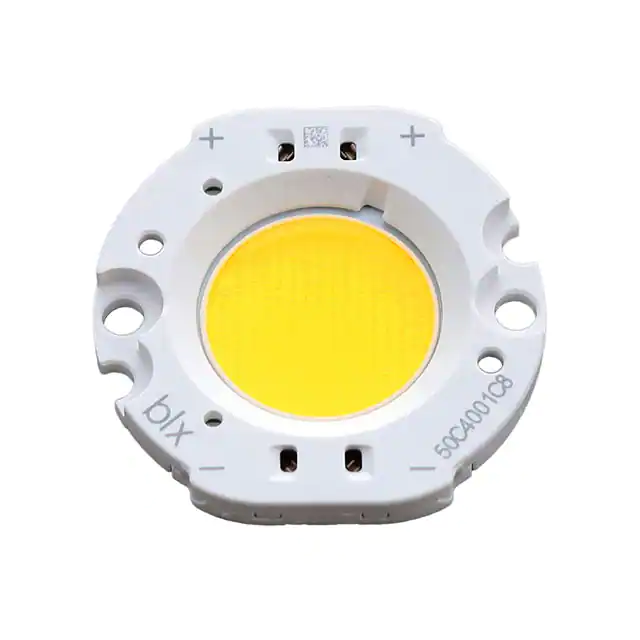

BXRC-50C4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	100	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	6837lm (Typ)	1.05A	25°C	33.9V	192 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-57E4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	100	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	5700K 4-Step MacAdam Ellipse	-	Round	6317lm (Typ)	1.05A	25°C	33.9V	177 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-40C4001-C-84-SE VERO SE 18C NEUTRAL WHITE LED AR Bridgelux	3,138	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Neutral	4000K 4-Step MacAdam Ellipse	-	Round	6800lm (Typ)	1.05A	25°C	33.9V	191 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-65C4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	3,101	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Round	6651lm (Typ)	1.05A	25°C	33.9V	187 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-35E4000-C-83-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	2,144	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	6465lm (Typ)	1.05A	25°C	33.9V	182 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-30E4000-C-83-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	3,199	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3000K 3-Step MacAdam Ellipse	-	Round	6317lm (Typ)	1.05A	25°C	33.9V	177 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia

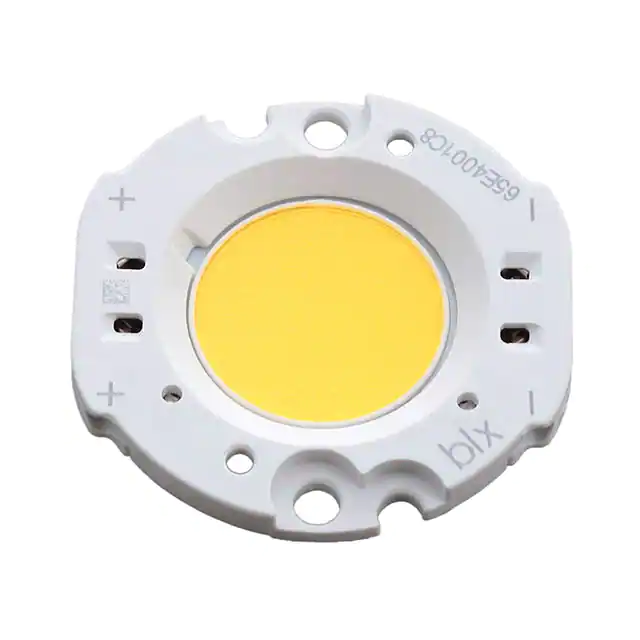

BXRC-65E4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	3,212	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	6500K 4-Step MacAdam Ellipse	-	Round	6391lm (Typ)	1.05A	25°C	33.9V	180 lm/W	3A	80	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-40G4000-C-83-SE VERO SE 18C NEUTRAL WHITE LED AR Bridgelux	2,089	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Neutral	4000K 3-Step MacAdam Ellipse	-	Round	5425lm (Typ)	1.05A	25°C	33.9V	152 lm/W	3A	90	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-35G4000-C-83-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	2,765	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	3500K 3-Step MacAdam Ellipse	-	Round	5314lm (Typ)	1.05A	25°C	33.9V	149 lm/W	3A	90	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-57C4001-C-84-SE VERO SE 18C COOL WHITE LED ARRAY Bridgelux	2,269	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Cool	5700K 4-Step MacAdam Ellipse	-	Round	6651lm (Typ)	1.05A	25°C	33.9V	187 lm/W	3A	70	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXRC-27G40H0-C-83-SE VERO SE 18C WARM WHITE LED ARRAY Bridgelux	3,931	-	RFQ	Scheda tecnica	Tray	Gen 8 Vero® SE 18 Array	Active	Chip On Board (COB)	White, Warm	2700K 3-Step MacAdam Ellipse	-	Round	5117lm (Typ)	1.05A	25°C	33.9V	144 lm/W	3A	90	120°	-	36.20mm Dia	3.60mm	18.50mm Dia
BXEB-L1120Z-50E8000-C-D3 EB GEN 3 HIGH OUTPUT LED MODULE Bridgelux	2,060	-	RFQ	Scheda tecnica	Bulk	EB Series™ Gen 3	Active	LED Module	White, Cool	5000K 3-Step MacAdam Ellipse	-	Linear Light Strip	10440lm	1.4A	25°C	38.4V	194 lm/W	2.8A	80	120°	-	1120.00mm L x 24.00mm W	6.10mm
