Illuminazione LED - COB, motori, moduli, strisce
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-27E4000-B-73LED COB VERO 18 2700K ROUND Bridgelux |
2,303 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4180lm (Typ) | 900mA | 85°C | 34.1V | 136 lm/W | 1.8A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-27G4000-B-73LED COB VERO 18 2700K ROUND Bridgelux |
2,378 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 3483lm (Typ) | 900mA | 85°C | 34.1V | 113 lm/W | 1.8A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-40G4000-C-73LED COB VERO 18 4000K ROUND Bridgelux |
2,037 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 5038lm (Typ) | 1.17A | 85°C | 34.1V | 126 lm/W | 2.34A | 90 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|
|
BXRC-50C4001-C-74LED COB VERO 18 5000K ROUND Bridgelux |
2,630 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 6453lm (Typ) | 1.17A | 85°C | 34.1V | 162 lm/W | 2.34A | 70 | - | With Connector | 36.20mm Dia | 1.90mm | 18.40mm Dia |
|

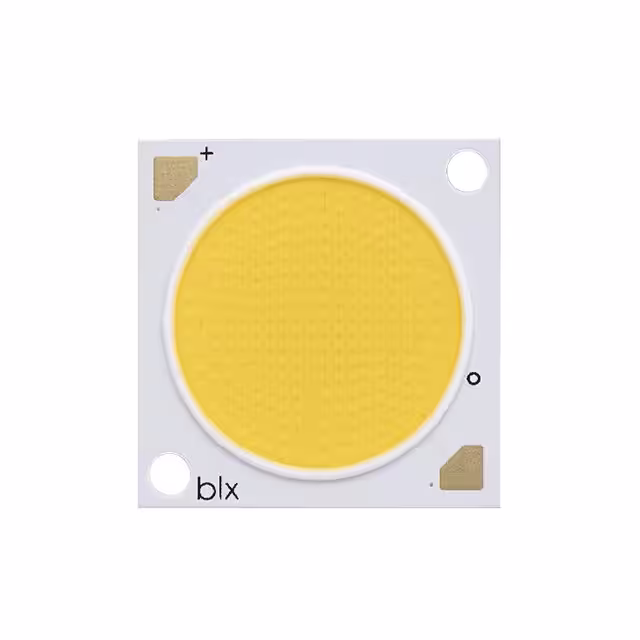

BXRE-50C6501-C-74LED ARRAY 4000LM COOL WHITE COB Bridgelux |
3,272 | - |
RFQ |
Scheda tecnica |
Tube | Gen 7 V22 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 11216lm (Typ) | 1.44A | 85°C | 50.7V | 154 lm/W | 2.88A | 70 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.60mm Dia |
|
BXRC-27E10K0-B-73-SELED COB VERO 29 SE 2700K ROUND Bridgelux |
2,522 | - |
RFQ |
Scheda tecnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 14321lm (Typ) | 1.8A | 25°C | 52V | 153 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-50C10K1-B-74LED COB VERO 29 5000K ROUND Bridgelux |
3,726 | - |
RFQ |
Scheda tecnica |
Tray | Gen 7 Vero® 29 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 17064lm (Typ) | 1.8A | 25°C | 52V | 182 lm/W | 3.6A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia |
|
|
BXRC-27E10K0-C-73-SELED COB VERO 29 SE 2700K ROUND Bridgelux |
2,106 | - |
RFQ |
Scheda tecnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 18157lm (Typ) | 1.71A | 25°C | 69.4V | 153 lm/W | 3.42A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
|
BXRC-20B10K1-C-73-SELED COB VERO 29 SE 2000K ROUND Bridgelux |
2,183 | - |
RFQ |
Scheda tecnica |
Tray | Vero® SE 29 Array | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Round | 17682lm (Typ) | 1.71A | 25°C | 69.4V | 149 lm/W | 3.42A | 65 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia |
|
BXRC-50C2001-C-84-SEVERO SE 13C COOL WHITE LED ARRAY Bridgelux |
3,636 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 13 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 3161lm (Typ) | 500mA | 25°C | 33.4V | 189 lm/W | 1.75A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia |
|
|
BXRC-40E2000-C-83-SEVERO SE 13C NEUTRAL WHITE LED AR Bridgelux |
3,403 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 13 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 3006lm (Typ) | 500mA | 25°C | 33.4V | 180 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 13.30mm Dia |
|
BXRH-27G0600-B-83V4 HD WARM WHITE LED ARRAY Bridgelux |
2,061 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 674lm (Typ) | 350mA | 25°C | 18.3V | 105 lm/W | 600mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 4.80mm Dia |
|
|
BXRH-35G1000-G-83V6 HD WARM WHITE LED ARRAY Bridgelux |
3,327 | - |
RFQ |
Scheda tecnica |
Tube | Gen 8 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1512lm (Typ) | 700mA | 25°C | 18.3V | 118 lm/W | 1.2A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.60mm Dia |
|
|
BXEB-L0560Z-35S2000-C-C3EB GEN 3 LED MODULE, 560 MM, 350 Bridgelux |
3,362 | - |
RFQ |
Scheda tecnica |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2690lm (Typ) | 960mA | 25°C | 20.3V | 138 lm/W | 1.92A | 98 (Typ) | 120° | - | 560.00mm L x 24.00mm W | 6.10mm | - |
|
BXRC-27G2000-C-83VERO 13C WARM WHITE LED ARRAY Bridgelux |
2,154 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 2314lm (Typ) | 500mA | 25°C | 33.4V | 139 lm/W | 1.75A | 90 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
|
|
BXRC-30E2000-C-83VERO 13C WARM WHITE LED ARRAY Bridgelux |
2,526 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® 13 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2980lm (Typ) | 500mA | 25°C | 33.4V | 178 lm/W | 1.75A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 13.30mm Dia |
|
BXRV-TR-2765G-20A0-A-23-S2TW LED ARRAY, LES=13MM, INTEGRAT Bridgelux |
2,782 | - |
RFQ |
Scheda tecnica |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 1527lm Warm White, 1762lm Cool White | 500mA | 25°C | 35.2V Warm White, 36.3V Cool White | 96 lm/W Warm White, 108 lm/W Cool White | 700mA | 90 | 130° | - | 18.80mm L x 18.80mm W | 1.65mm | 14.20mm Dia |
|
BXRC-35E4000-C-83VERO 18C WARM WHITE LED ARRAY Bridgelux |
3,751 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® 18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 6551lm (Typ) | 1.05A | 25°C | 33.9V | 184 lm/W | 3A | 80 | 120° | - | 36.20mm Dia | 1.80mm | 18.50mm Dia |
|
BXRC-27G4000-C-83-SEVERO SE 18C WARM WHITE LED ARRAY Bridgelux |
2,546 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 4905lm (Typ) | 1.05A | 25°C | 33.9V | 138 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia |
|
|
BXRC-30G40H0-C-83-SEVERO SE 18C WARM WHITE LED ARRAY Bridgelux |
3,150 | - |
RFQ |
Scheda tecnica |
Tray | Gen 8 Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5369lm (Typ) | 1.05A | 25°C | 33.9V | 151 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia |
