Fusibili ripristinabili PTC

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PICOASMDCH050F-2 PPTC-MINI-PSW Littelfuse Inc.	925	-	RFQ	Scheda tecnica	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, picoASMD	Active	Polymeric	16V	40 A	500 mA	1.7 A	100 ms	250 mOhms	1.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.083 L x 0.055 W (2.10mm x 1.40mm)	-	0.047 (1.20mm)
RXEF250-2 PTC RESET FUSE 72V 2.5A RADIAL Littelfuse Inc.	785	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.819 Dia x 0.118 T (20.80mm x 3.00mm)	1.000 (25.40mm)	-
AGRF600 PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	477	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	6 A	10.7 A	3.5 s	9.5 mOhms	28 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.421 L x 0.118 W (10.70mm x 3.00mm)	0.724 (18.40mm)	-
RUEF500K-AP PTC RESET FUSE 30V 5A RADIAL Littelfuse Inc.	1,000	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	1.008 (25.60mm)	-
RXEF300-1 PTC RESET FUSE 72V 3A RADIAL Littelfuse Inc.	250	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.941 Dia x 0.118 T (23.90mm x 3.00mm)	1.126 (28.60mm)	-
AHRL550 PTC RESET FUSE 5.5A 16V RAD Littelfuse Inc.	478	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	5.5 A	11 A	6 s	12 mOhms	22 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.370 L x 0.118 W (9.40mm x 3.00mm)	0.567 (14.40mm)	-
AHRL500 PTC RESET FUSE 5A 16V RAD Littelfuse Inc.	356	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	5 A	10 A	5.8 s	13.5 mOhms	24 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.362 L x 0.118 W (9.20mm x 3.00mm)	0.555 (14.10mm)	-
RXEF300K PTC RESET FUSE 72V 3A RADIAL Littelfuse Inc.	154	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.910 Dia x 0.118 T (23.11mm x 3.00mm)	1.154 (29.30mm)	-
AHRL600 PTC RESET FUSE 6A 16V RAD Littelfuse Inc.	480	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	6 A	13 A	6.5 s	9 mOhms	14 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.344 L x 0.118 W (8.75mm x 3.00mm)	0.630 (16.00mm)	-

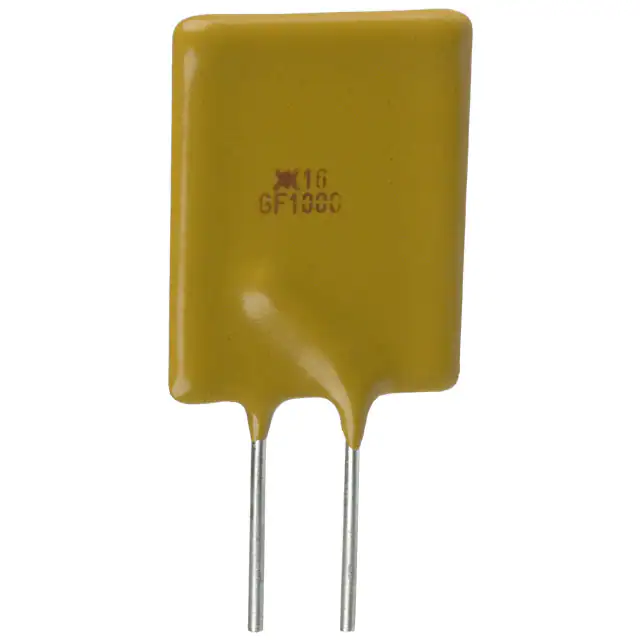

RGEF1000-1 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	490	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.650 L x 0.098 W (16.50mm x 2.50mm)	0.992 (25.20mm)	-
AHRL650 PTC RESET FUSE 6.5A 16V RAD Littelfuse Inc.	216	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	6.5 A	13 A	6.5 s	9.5 mOhms	15 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.421 L x 0.118 W (10.70mm x 3.00mm)	0.685 (17.40mm)	-
AHRL700 PTC RESET FUSE 7A 16V RAD Littelfuse Inc.	466	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	7 A	14 A	6.8 s	8.5 mOhms	14 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.465 L x 0.118 W (11.80mm x 3.00mm)	0.685 (17.40mm)	-
AHRL750 PTC RESET FUSE 7.5A 16V RAD Littelfuse Inc.	470	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	7.5 A	15 A	7 s	7.3 mOhms	12.5 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.465 L x 0.118 W (11.80mm x 3.00mm)	0.748 (19.00mm)	-
TRF600-150-B-0.5-2 PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	259	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
TRF600-150-B-0.5 PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	1,443	-	RFQ	Scheda tecnica	Radial, Disc	Bag,Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
AHRL800 PTC RESET FUSE 8A 16V RAD Littelfuse Inc.	540	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	8 A	16 A	8 s	6 mOhms	10.5 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.504 L x 0.142 W (12.80mm x 3.60mm)	0.803 (20.40mm)	-
AHRF900 PTC RESET FUSE 16V 9A RADIAL Littelfuse Inc.	250	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	9 A	18.5 A	11.5 s	6.1 mOhms	17 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.012 (25.70mm)	-
AHRL900 PTC RESET FUSE 9A 16V RAD Littelfuse Inc.	245	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	9 A	18 A	9 s	4.6 mOhms	7.5 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.567 L x 0.142 W (14.40mm x 3.60mm)	0.843 (21.40mm)	-
AHRL1100 PTC RESET FUSE 11A 16V RAD Littelfuse Inc.	250	-	RFQ	Scheda tecnica	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	11 A	22 A	11.2 s	3.8 mOhms	6.3 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.685 L x 0.142 W (17.40mm x 3.60mm)	0.882 (22.40mm)	-
TS600-400F-2 PTC RESET FUSE 60V 400MA 2SMD Littelfuse Inc.	579	-	RFQ	Scheda tecnica	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TS600	Active	Polymeric	60V (600V Int)	60 A	400 mA	1 A	14 s	500 mOhms	2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.742 L x 0.305 W (18.85mm x 7.75mm)	-	0.484 (12.30mm)
