Altre categorie di prodotti

Fusibili ripristinabili PTC

Numero parte produttore	Disponibilità	Prezzo	Quantità	Scheda tecnica	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
60R040XPR PTC RESET FUSE 60V 400MA RADIAL Littelfuse Inc.	705	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.299 Dia x 0.122 T (7.60mm x 3.10mm)	0.532 (13.50mm)	-
RXEF300-AP PTC RESET FUSE 72V 3A RADIAL Littelfuse Inc.	845	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.941 Dia x 0.118 T (23.90mm x 3.00mm)	1.126 (28.60mm)	-
RGEF800-1 PTC RESET FUSE 16V 8A RADIAL Littelfuse Inc.	461	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.480 L x 0.098 W (12.20mm x 2.50mm)	0.823 (20.90mm)	-
LVR040S-2 PTC RESET FUSE 240V 400MA RADIAL Littelfuse Inc.	395	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	5.5 A	400 mA	900 mA	24 s	600 mOhms	1.9 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.453 L x 0.150 W (11.50mm x 3.80mm)	0.768 (19.50mm)	-
RUEF900-2 PTC RESET FUSE 30V 9A RADIAL Littelfuse Inc.	729	-	RFQ	Scheda tecnica	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.949 L x 0.118 W (24.10mm x 3.00mm)	1.142 (29.00mm)	-
MINIASMDC200F/16-2 PTC RESET FUSE 16V 2A 1812 Littelfuse Inc.	892	-	RFQ	Scheda tecnica	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	16V	40 A	2 A	4 A	5 s	20 mOhms	85 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.048 (1.22mm)
RKEF065-AP PTC RESET FUSE 60V 650MA RADIAL Littelfuse Inc.	346	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RKEF	Active	Polymeric	60V	40 A	650 mA	1.3 A	1 s	250 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.280 L x 0.140 W (7.10mm x 3.56mm)	0.480 (12.20mm)	-
RKEF065 PTC RESET FUSE 60V 650MA RADIAL Littelfuse Inc.	2,132	-	RFQ	Scheda tecnica	Radial, Disc	Bag	PolySwitch®, RKEF	Active	Polymeric	60V	40 A	650 mA	1.3 A	1 s	250 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.280 L x 0.140 W (7.10mm x 3.56mm)	0.480 (12.20mm)	-

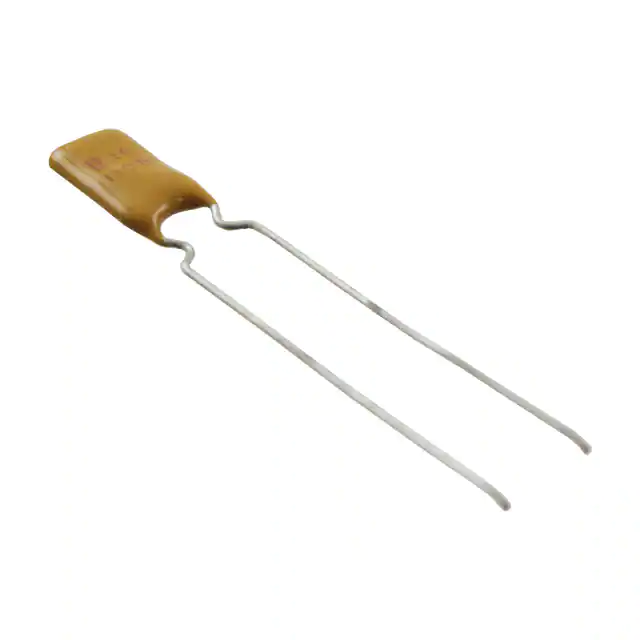

16R110BPR PTC RESET FUSE 16V 1.1A RADIAL Littelfuse Inc.	268	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, USBR	Obsolete	Polymeric	16V	40 A	1.1 A	2.2 A	2.3 s	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
RXEF110-AP PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	780	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.504 Dia x 0.118 T (12.80mm x 3.00mm)	0.689 (17.50mm)	-
RXEF135-AP PTC RESET FUSE 72V 1.35A RADIAL Littelfuse Inc.	999	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.35 A	2.7 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.571 Dia x 0.118 T (14.50mm x 3.00mm)	0.752 (19.10mm)	-
30R185UPR PTC RESET FUSE 30V 1.85A RADIAL Littelfuse Inc.	311	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	1.85 A	3.7 A	8.7 s	30 mOhms	90 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 L x 0.118 W (10.20mm x 3.00mm)	0.618 (15.70mm)	-
SMDC185F/33-2 PTC RESET FUSE 33V 1.85A 2920 Littelfuse Inc.	590	-	RFQ	Scheda tecnica	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMDC	Active	Polymeric	33V	40 A	1.85 A	3.7 A	2.5 s	-	-	-	-	-	Surface Mount	0.295 L x 0.201 W (7.50mm x 5.10mm)	-	0.047 (1.20mm)

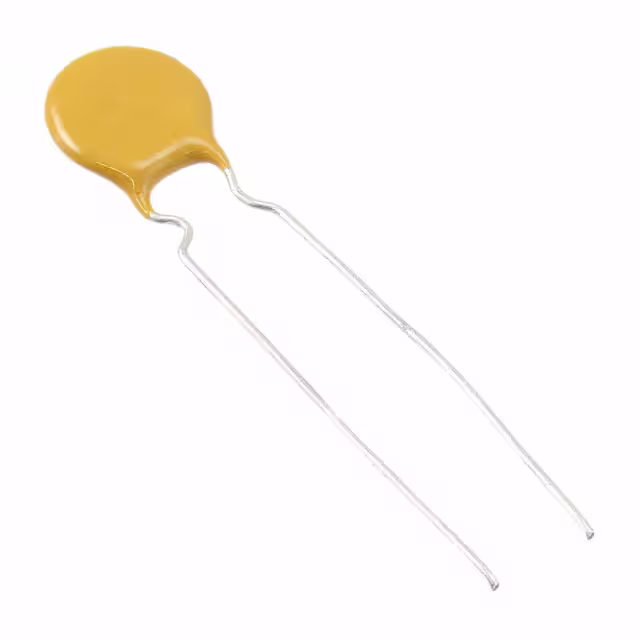

72R065XPR PTC RESET FUSE 72V 650MA RADIAL Littelfuse Inc.	675	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 72R	Active	Polymeric	72V	40 A	650 mA	1.3 A	5.3 s	310 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.370 Dia x 0.122 T (9.40mm x 3.10mm)	0.571 (14.50mm)	-
MINIASMDC110F/16-2 PTC RESET FUSE 16V 1.1A 1812 Littelfuse Inc.	993	-	RFQ	Scheda tecnica	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	16V	100 A	1.1 A	2.2 A	300 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.019 (0.48mm)

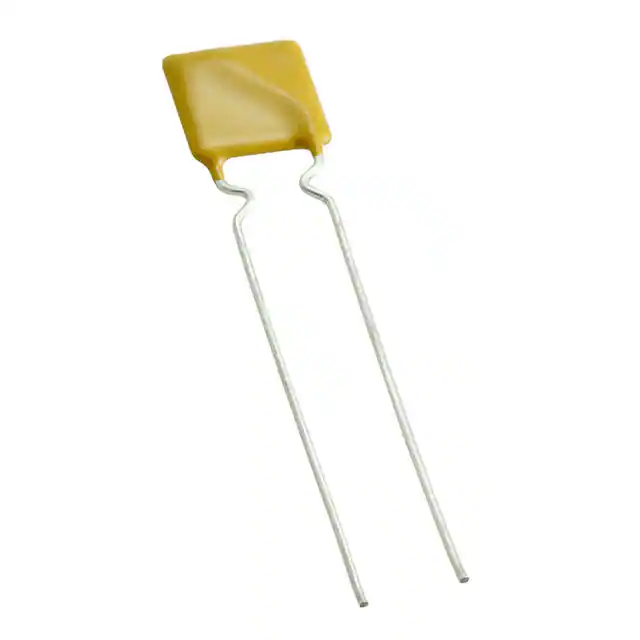

RGEF250-AP PTC RESET FUSE 16V 2.5A RADIAL Littelfuse Inc.	568	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	2.5 A	4.7 A	5 s	22 mOhms	53 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.504 (12.80mm)	-
RHEF1100 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	3,250	-	RFQ	Scheda tecnica	Radial, Disc	Bag,Bag	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	11 A	20 A	11 s	5.5 mOhms	13 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.827 L x 0.118 W (21.00mm x 3.00mm)	1.028 (26.10mm)	-

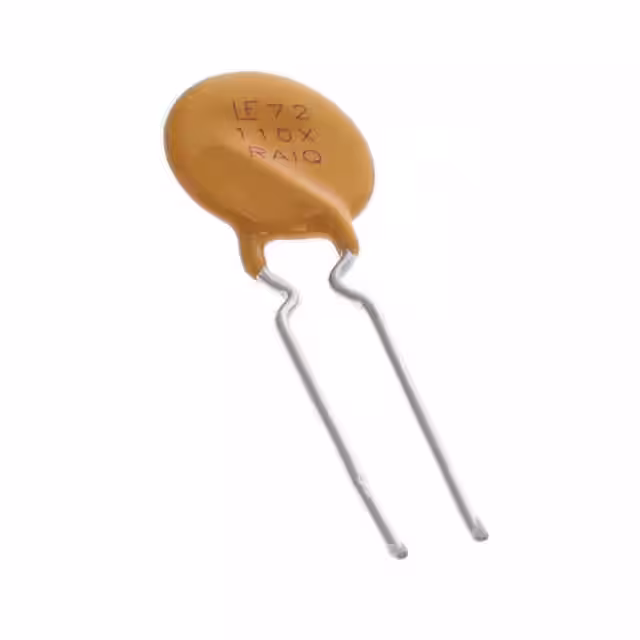

72R110XMR PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	877	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 72R	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.512 Dia x 0.122 T (13.00mm x 3.10mm)	0.717 (18.20mm)	-
60R185XMR PTC RESET FUSE 60V 1.85A RADIAL Littelfuse Inc.	710	-	RFQ	Scheda tecnica	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	1.85 A	3.7 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.660 Dia x 0.122 T (16.76mm x 3.10mm)	0.906 (23.00mm)	-

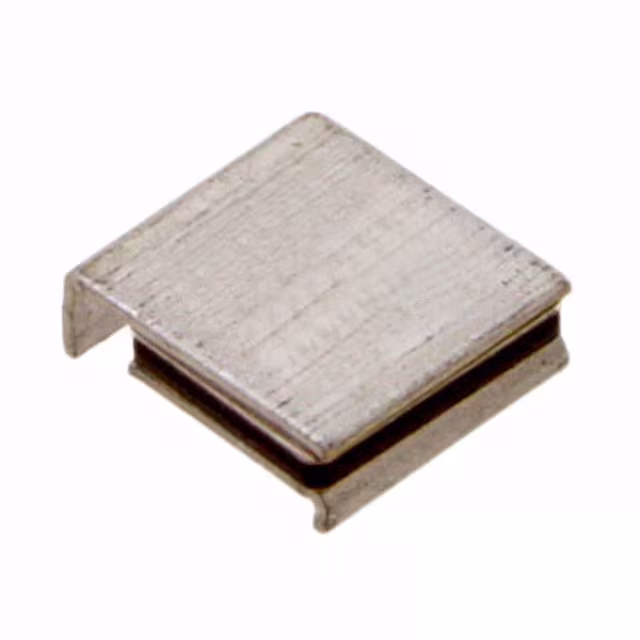

SMD030F-2018-2 PTC RESET FUSE 60V 300MA 2SMD Littelfuse Inc.	991	-	RFQ	Scheda tecnica	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	60V	20 A	300 mA	800 mA	1.5 s	500 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.180 W (5.08mm x 4.58mm)	-	0.070 (1.78mm)
