Trasformatori di impulsi
| Foto: | Numero parte produttore | Disponibilità | Prezzo | Quantità | Scheda tecnica | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA1837NLTPULSE XFMR 4.5UH Pulse Electronics Power |
400 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 4.5µH | - | - | Surface Mount | 0.860 L x 1.150 W (21.84mm x 29.21mm) | 0.450 (11.43mm) |
|
PA2008NLPULSE XFMR 2:1:1 1.43MH Pulse Electronics Power |
3,377 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | - | 1.43mH | 52VµS | 2:1:1 | Surface Mount | 0.355 L x 0.340 W (9.02mm x 8.64mm) | 0.300 (7.62mm) |
|
PA2649NLTPULSE XFMR 100.5UH Pulse Electronics Power |
4,470 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 100.5µH | - | - | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
PA1276NLTXFRMR 12V 13.5W 77.4UH POE EP13 Pulse Electronics Power |
887 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13 | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.682:0.682 | Surface Mount | 0.551 L x 0.695 W (14.00mm x 17.65mm) | 0.500 (12.70mm) |
|
PA1135NLTXFRMR 12V 7W 264UH POE EP10 SMD Pulse Electronics Power |
982 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP10 | Active | Isolation and Data Interface (Encapsulated) | 264.1µH | - | 1:0.286:0.204 | Surface Mount | 0.515 L x 0.600 W (13.08mm x 15.24mm) | 0.451 (11.45mm) |
|
PA1283NLTXFRMR 5V 7W 155UH POE EP10 SMD Pulse Electronics Power |
931 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP10 | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.273:0.682 | Surface Mount | 0.515 L x 0.600 W (13.08mm x 15.24mm) | 0.451 (11.45mm) |
|
|
PA1260NLTXFRMR 5V 13.5W 77.4UH POE EP13 Pulse Electronics Power |
3,591 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP13 | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.273:0.682 | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
PA2004NLPULSE XFMR 1:1:1 437UH Pulse Electronics Power |
3,835 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340 L x 0.265 W (8.64mm x 6.73mm) | 0.140 (3.56mm) |
|
PH9185.043NLTTRANSFORMER 1260UH 4:3 SMD Pulse Electronics Power |
444 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | PH9185 | Active | - | - | - | - | Surface Mount | 0.394 L x 0.394 W (10.00mm x 10.00mm) | 0.492 (12.50mm) |
|

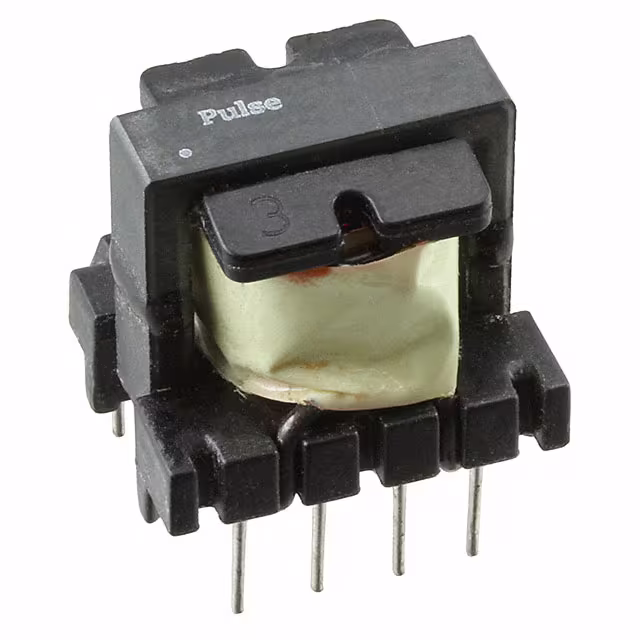

PA2531NLPULSE XFMR 4.5UH Pulse Electronics Power |
118 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 4.5µH | - | - | Through Hole | 0.717 L x 0.630 W (18.20mm x 16.00mm) | 0.709 (18.00mm) |
|
|
PA1736NLTPULSE XFMR 20.5UH Pulse Electronics Power |
1,164 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 20.5µH | - | - | Surface Mount | 0.860 L x 1.150 W (21.84mm x 29.21mm) | 0.450 (11.43mm) |
.00xNL-Series.jpg)
|
PA3855.006NLPULSE XFMR 21UH Pulse Electronics Power |
306 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 21µH | - | - | Surface Mount | 0.571 L x 0.695 W (14.50mm x 17.65mm) | 0.551 (14.00mm) |
|
PA3342NLPULSE XFMR 90UH Pulse Electronics Power |
628 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 90µH | - | - | Surface Mount | 0.551 L x 0.516 W (14.00mm x 13.11mm) | 0.485 (12.32mm) |
|
|
PA1736NLPULSE XFMR 20.5UH Pulse Electronics Power |
391 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 20.5µH | - | - | Surface Mount | 0.860 L x 1.150 W (21.84mm x 29.21mm) | 0.450 (11.43mm) |
|
|
PA1131NLTXFRMR 5.0V 3W 500UH POE EP7 SMD Pulse Electronics Power |
871 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | EP7 | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.125:0.208 | Surface Mount | 0.420 L x 0.525 W (10.67mm x 13.34mm) | 0.365 (9.27mm) |
|

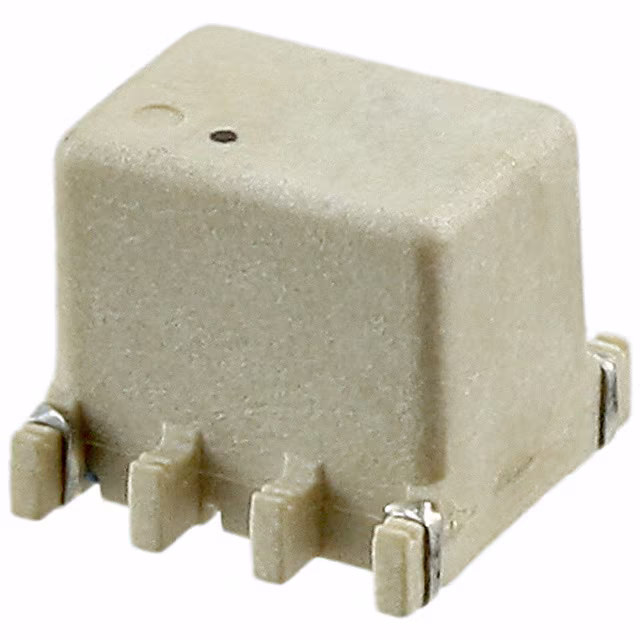

PA2007NLPULSE XFMR 1:1 1.49MH Pulse Electronics Power |
371 | - |
RFQ |
Scheda tecnica |
Tube | - | Active | - | 1.49mH | 53VµS | 1:1 | Surface Mount | 0.355 L x 0.340 W (9.02mm x 8.64mm) | 0.300 (7.62mm) |
|
|
PA3855.003NLPULSE XFMR 41UH Pulse Electronics Power |
376 | - |
RFQ |
Scheda tecnica |
Tray | - | Active | - | 41µH | - | - | Surface Mount | 0.571 L x 0.695 W (14.50mm x 17.65mm) | 0.551 (14.00mm) |
|
|
PA1836NLTPULSE XFMR 4.5UH Pulse Electronics Power |
2,437 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 4.5µH | - | - | Surface Mount | 0.860 L x 1.150 W (21.84mm x 29.21mm) | 0.450 (11.43mm) |
|
PH9572.211NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
13,467 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | 4mH | 84.7VµS | 2:1:1 | Surface Mount | 0.402 L x 0.295 W (10.20mm x 7.50mm) | 0.433 (11.00mm) |
|
|
PH9572.322NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power |
11,994 | - |
RFQ |
Scheda tecnica |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Gate Drive | - | - | - | Surface Mount | - | - |
